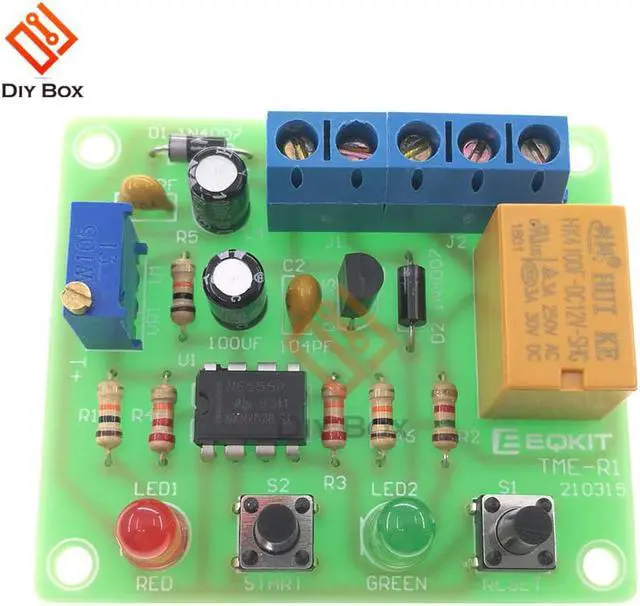

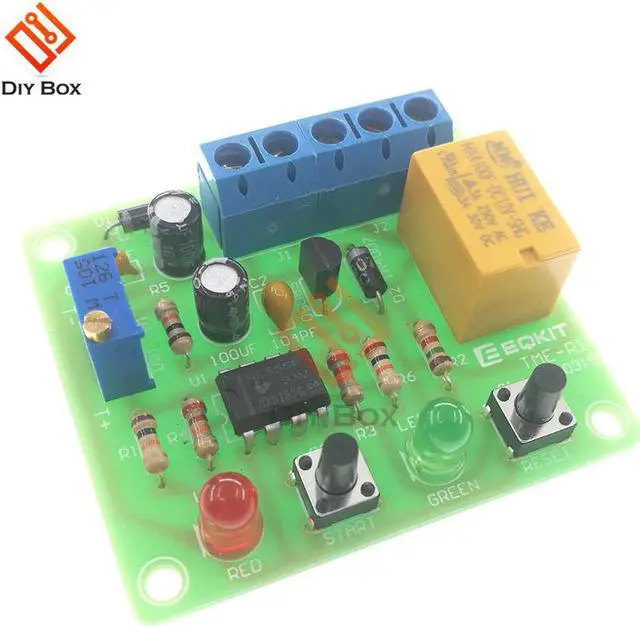

DC 12V Timer Relay Control Switch Electronic Production DIY Kit 100s Delay Electronic Welding Parts

Origin:CN(Origin)
Model Number:Timer kit

Product selling point:
1. The delay time can be adjusted
2. Simple operation
3. Relay switch output
4. Perfect Simple Circuit
5.DIY hand welding
Kit Name: Timer
Supply voltage: DC12V
Timing time: 1~100 seconds (the longest time will be different due to the error of component parameters)
Switching capacity: 3A 250V AC
3A 30V DC
PCB size: 50*43.5mm
Kit Weight: 19g
Notice:
Due to the difference of component parameters, the maximum timing time of each set will be different.
If the timing range of one set is 1-95 seconds, the timing range of another set may be 1--120 seconds.
When the relay is powered off, the normally closed terminal is connected to the common terminal, and the normally open terminal is separated from the common terminal.
When the relay is energized, the normally closed terminal is separated from the common terminal, and the normally open terminal is connected to the common terminal.
Package Included:

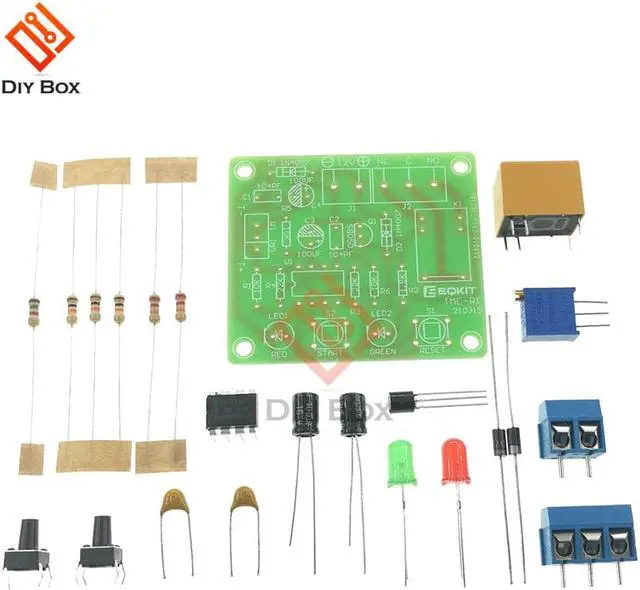

1* Timing switch kit
