$22.49
Ships from China.
Meet Your Seller

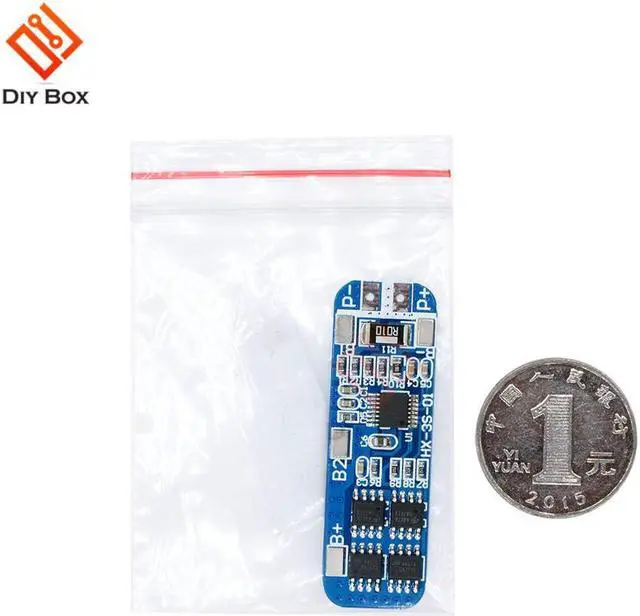

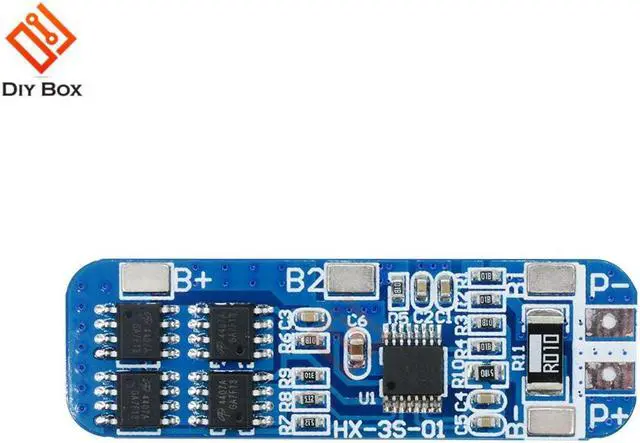

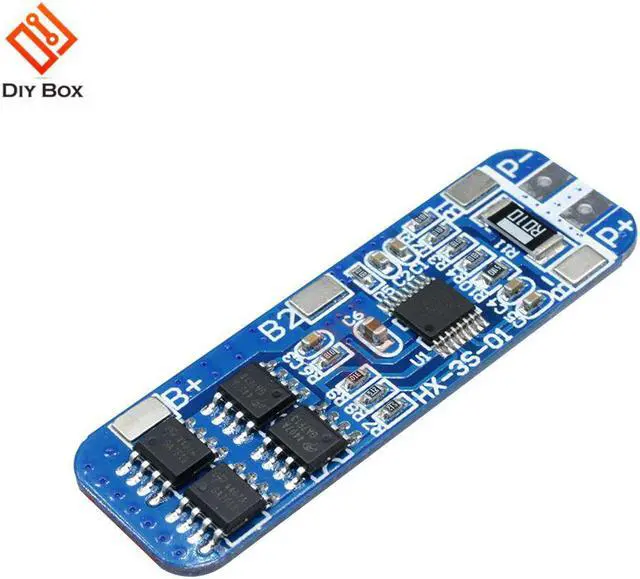

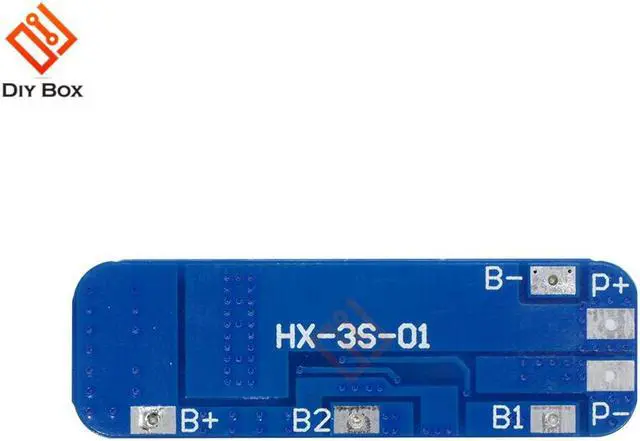

3S 12V 10A 18650 Li-ion Lithium BMS Charger Protection Board HX-35-01
- 3S 12V 10A 18650 Li-ion Lithium BMS Charger Protection Board HX-35-01
+
+
Overview
Specs
Reviews
Certification:NONE
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:18650 Li-ion Lithium BMS Charger Protection Board
feature:Protection Board
3S 12V 10A 18650 Li-ion Lithium BMS Charger Protection Board HX-35-01
Size: approx.50x16x1mm
Maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V±0.05V
Over-discharge detection voltage: 2.3-3.0V±0.05V
Maximum working current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40~50°
Storage temperature: -40~80°
Quiescent current: 6uA
Internal resistance: 60m
Service life: 30,000 hours
Features:
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of pack.
Suitable for:
10.8V (Rated voltage of polymer )
11.1V (18650 or 3.7V lithium rated voltage)
12.6V (Lithium full charge voltage)
Package Inlcuded:
1 x 18650 lithium Protection Board
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:18650 Li-ion Lithium BMS Charger Protection Board
feature:Protection Board
3S 12V 10A 18650 Li-ion Lithium BMS Charger Protection Board HX-35-01
Size: approx.50x16x1mm
Maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V±0.05V
Over-discharge detection voltage: 2.3-3.0V±0.05V
Maximum working current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40~50°
Storage temperature: -40~80°
Quiescent current: 6uA
Internal resistance: 60m
Service life: 30,000 hours
Features:
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of pack.
Suitable for:
10.8V (Rated voltage of polymer )
11.1V (18650 or 3.7V lithium rated voltage)
12.6V (Lithium full charge voltage)
Package Inlcuded:
1 x 18650 lithium Protection Board
