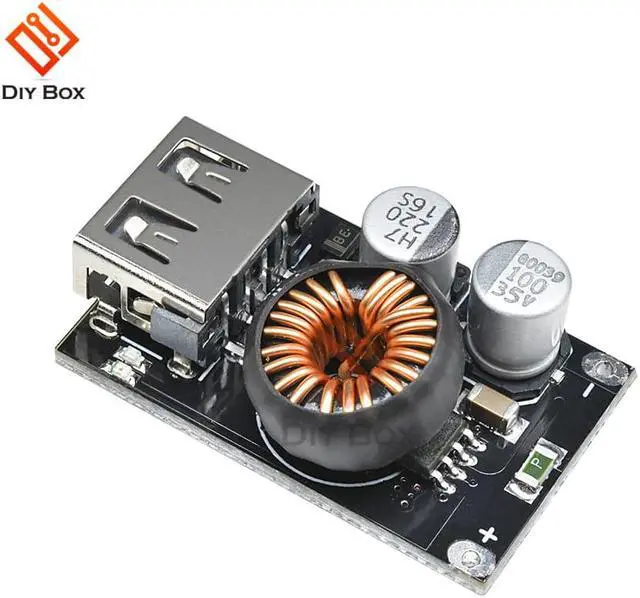

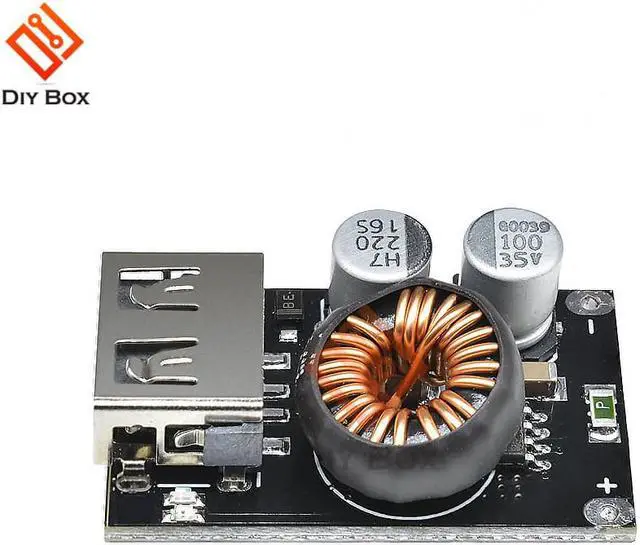

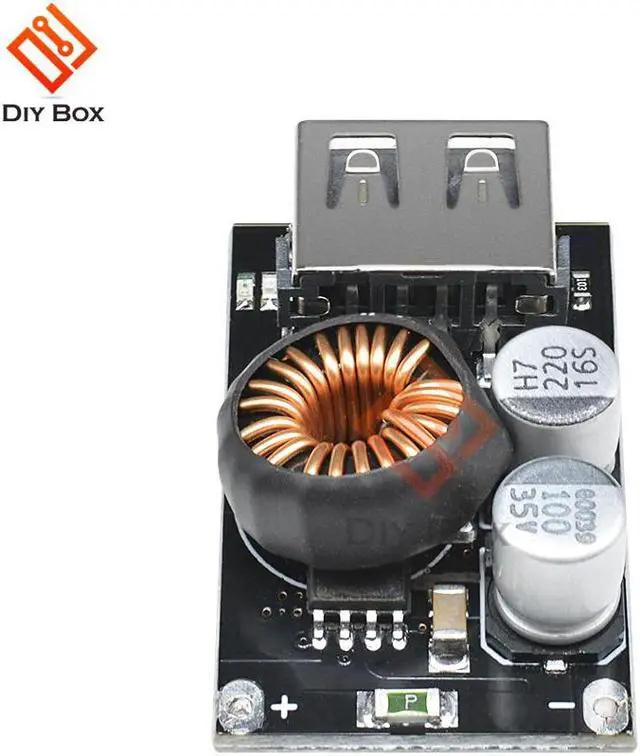

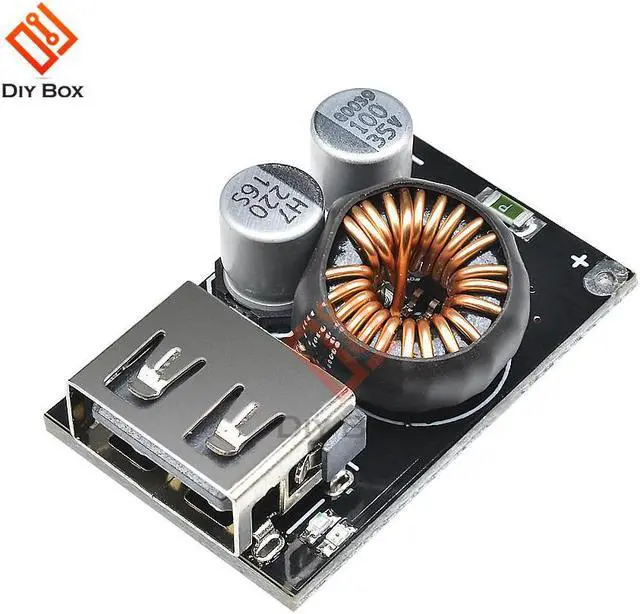

QC3.0 USB DC-DC Buck Converter Charging Step Down Module 10-32V to 3.8-12V Fast Quick Charge Circuit Board for Car Power Charger

Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:Charger Module
Certification:NONE

Product Features
Input voltage range: 10V to 32V DC
Output voltage: default 5V, automatically adjust between 3.8~12V after triggering fast charge (the input voltage is higher than the output voltage, if you want to trigger 12V fast charge, the input voltage should be higher than 12V)
Output power: maximum 18W (5V3.5A, 9V2A, 12V1.5A, etc.)
The output voltage is wired and complemented. When the output current increases, the output voltage is increased accordingly to compensate for the voltage drop caused by the impedance of the connection line. The current is increased by 1A and the voltage is increased by about 60mV.
Conversion efficiency: 92%~97%
Output voltage ripple:
No-load current:
Input overvoltage, undervoltage protection
Input overcurrent protection
Output overcurrent, short circuit protection
Machine over temperature protection
Supported charging protocol
BC1.2, Apple, Samsung agreement
Qualcomm QC2.0 and QC3.0
Huawei Fast Charge Protocol FCP
Samsung Fast Charge Protocol AFC
Indicator description:
The blue indicator light is on after power-on, and the higher the output voltage, the higher the brightness. The orange indicator lights up when the Qualcomm, Huawei, and Samsung fast charge protocols are triggered.
Applications
Solar panel transfer to mobile phone charging
Car charging transformation
Power supply for driving recorder
Switching power supply transformation
Product Size
33×20×10mm
