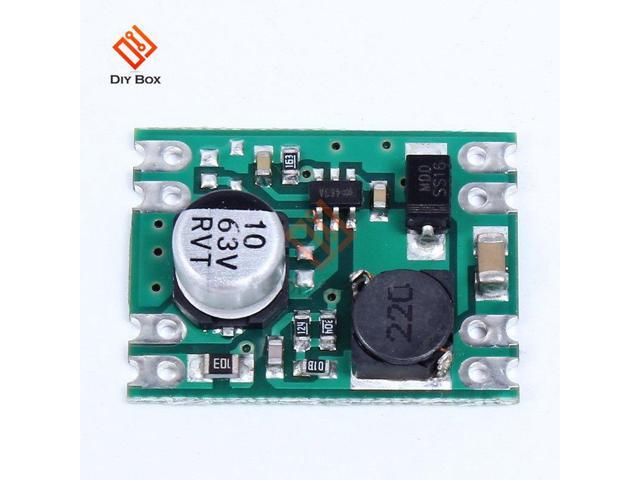

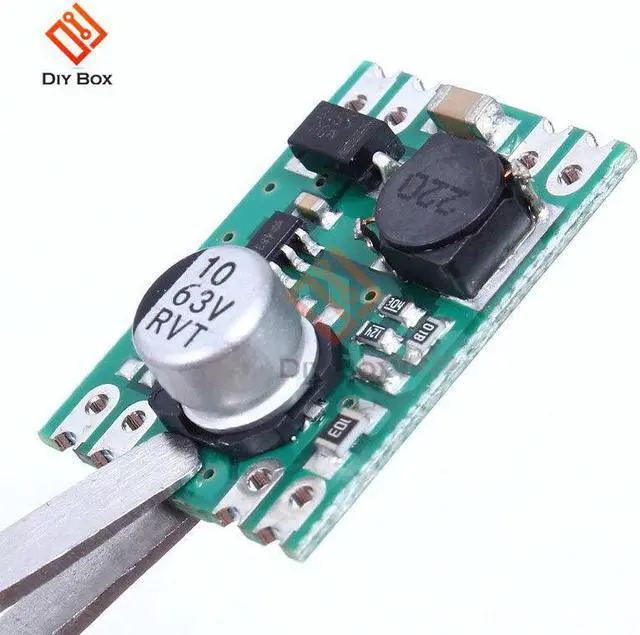

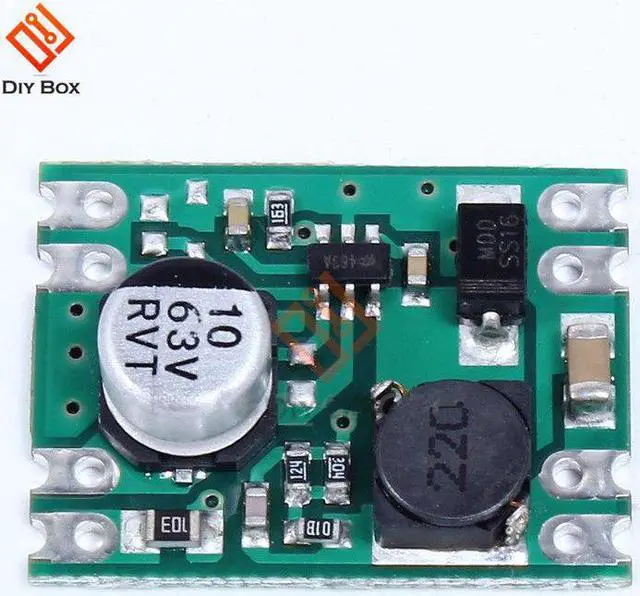

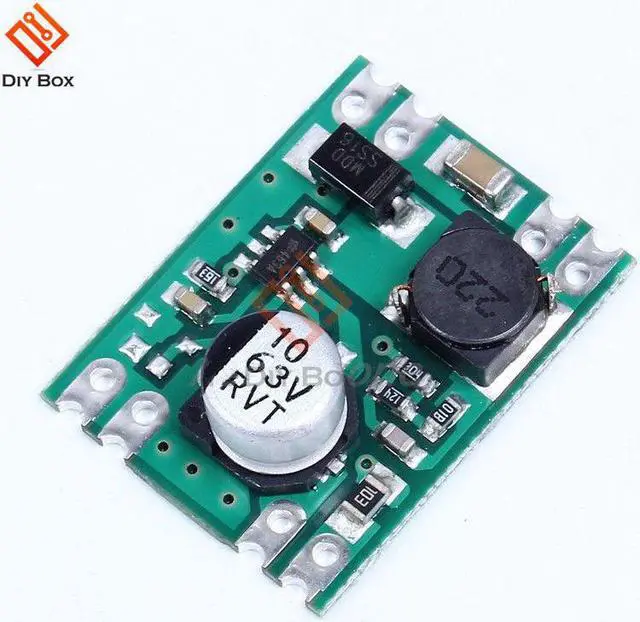

600mA DC-DC 6-55V to 5V Step Down Buck Module Fixed Output Voltage Regulator

Origin:CN(Origin)
Model Number:600mA DC-DC 6-55V to 5V Step Down Buck Module

Description:
1.Input Voltage Range:DC 6-55V
2.Output Voltage:fixed DC 5V
3.Output Current:600mA max
4.Conversion Efficiency:96%
5.Full Load Output Ripple Vpp:
6.Output Precision:+/-0.1V
7.No Load Current:0.7mA
8.Power Off Current:
9.Heat Dissipation Type:natural cooling
10.Operating Temperature:-40~+85
11.Storage Temperature:-40~+125
12.Relative Humidity:20-90%
13.Module Size:116.5*22*7mm
14.PCB:double side
15.Installation Type:SMD or 2.54 pin plug-in
16.Isolation:no

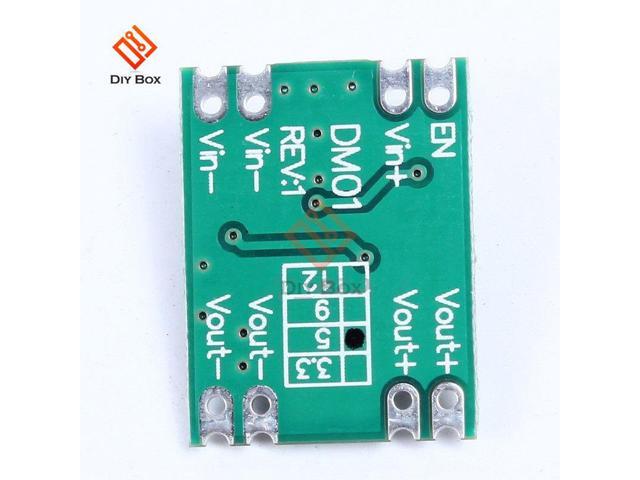

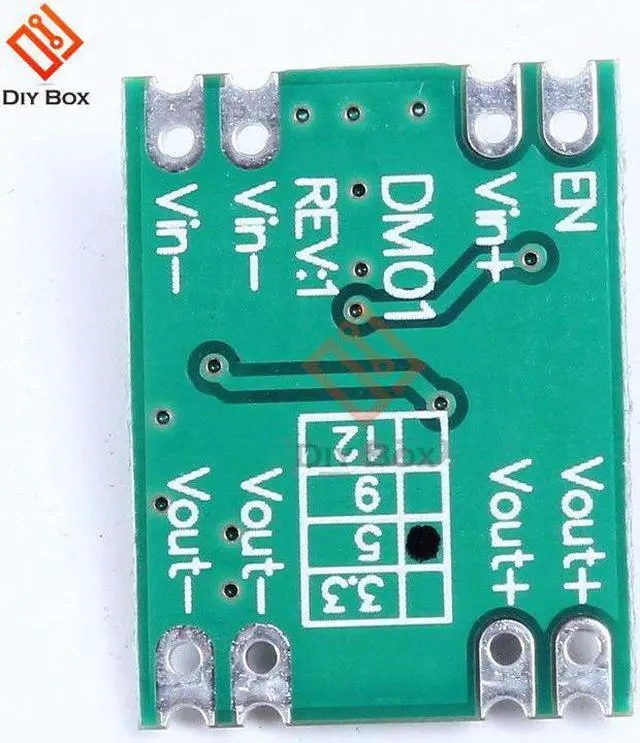

Pin Definition:
1,2:VOUT+:output power positive,fixed 5V output
3,4:VOUT-:output power negative,connect with VIN-
5,6:VIN-:input power negative,connect with VOUT-
7.VIN+:power input positive
8.EN:hanging is regarded as power off,can use external MCU pin high level to power on;if doesn't need to power off,can directly connect with IN+ pin.More than 2.3V can open,input range is 2.3V VIN+
Package Included:
1 * 600mA DC-DC Step Down Buck Module 6-55V to 5V Fixed Output Voltage Regulator
