DC 3.3V 5V 4 Bit I2C IIC LED Digital Tube Display Module Green LED Display for Arduino for MCU AVR PIC ARM N76E003
- DC 3.3V 5V 4 Bit I2C IIC LED Digital Tube Display Module Green LED Display for Arduino for MCU AVR PIC ARM N76E003
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:I2C LED digital tube display module green display
Product selling point:
1: Wide range of applications
2: Simple operation
3: Small appearance
4: Four-digit red display
5: Interface: I2C
Parameter:
Display color: red
Power supply voltage: DC 5V/3.3V
Driver IC: AIP650 (compatible with tm1650)
Interface: I2C (only two control signals, SDA SCL data)
Support display characters: 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o, P,r,t,U,-
Size: 33mm*15mm*11mm
Weight: 5g

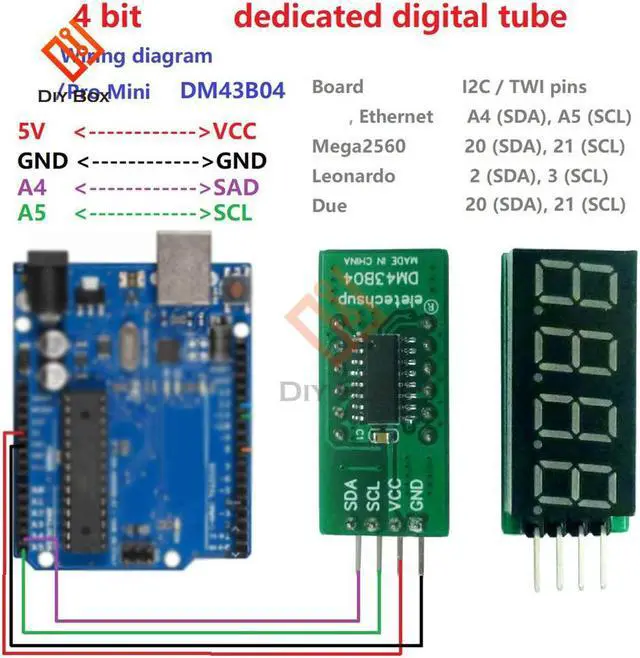

Wiring of other boards:
Board I2C/TWI pins
Ethernet A4 (SDA), A5 (SCL)
Mega2560 20 (SDA), 21 (SCL)
Leonardo 2 (SDA), 3 (SCL)
Expires 20 (SDA), 21 (SCL)
Applies to:
Raspberry Pi 3 B+ 4
MCU AVR PIC ARM N76E003
FPGA/CPLD
toy car
Instrumentation
Electronics Hobby DIY
Package List:
1*Digital tube display module
Model Number:I2C LED digital tube display module green display
Product selling point:
1: Wide range of applications
2: Simple operation
3: Small appearance
4: Four-digit red display
5: Interface: I2C
Parameter:
Display color: red
Power supply voltage: DC 5V/3.3V
Driver IC: AIP650 (compatible with tm1650)
Interface: I2C (only two control signals, SDA SCL data)
Support display characters: 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o, P,r,t,U,-
Size: 33mm*15mm*11mm
Weight: 5g
Wiring of other boards:
Board I2C/TWI pins
Ethernet A4 (SDA), A5 (SCL)
Mega2560 20 (SDA), 21 (SCL)
Leonardo 2 (SDA), 3 (SCL)
Expires 20 (SDA), 21 (SCL)
Applies to:
Raspberry Pi 3 B+ 4
MCU AVR PIC ARM N76E003
FPGA/CPLD
toy car
Instrumentation
Electronics Hobby DIY
Package List:
1*Digital tube display module
