CH340C TYPE C USB 3.3V 5V to TTL Serial Adapter Module Bus Conversion Chip ISP Communicate Connector for STM32 Arduino

Origin:CN(Origin)
Certification:NONE
Model Number:TYPE C USB to TTL serial port CH340C module

Product manual:

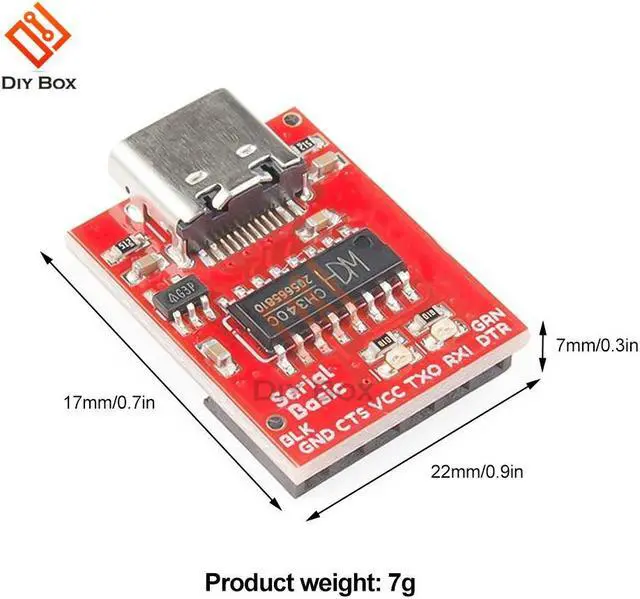

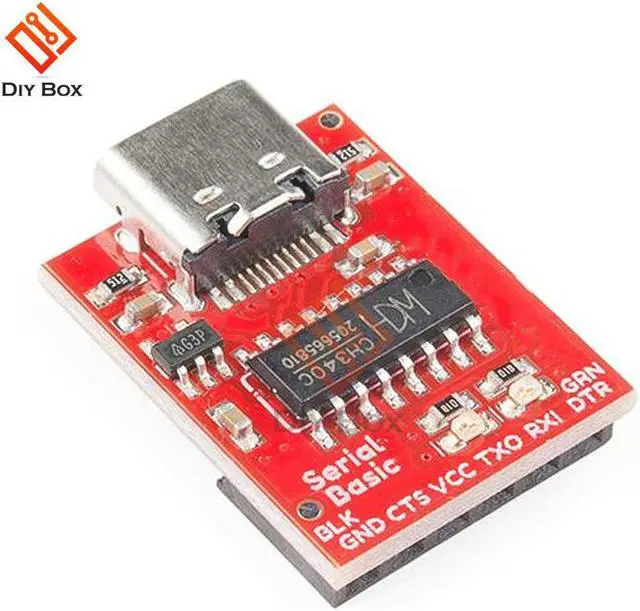

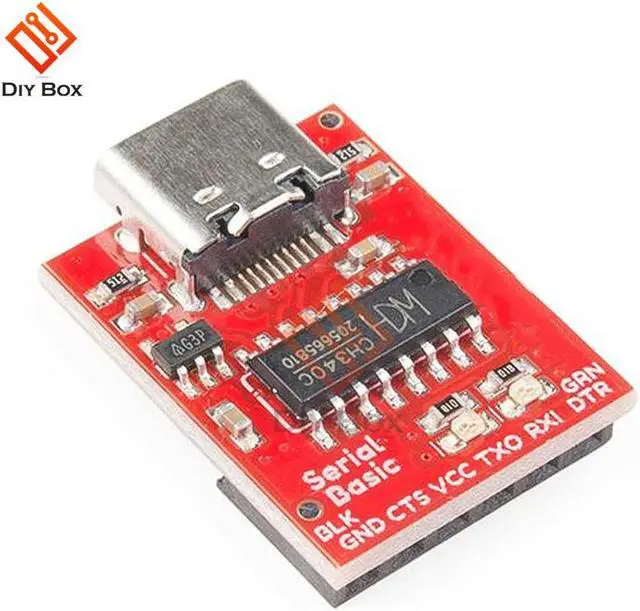

This product is a Type-C to TTL serial port module, using CH340 USB bus conversion chip, with 2 indicator lights on the board, which are communication indicators. Because there is no serial port on our current computer, we generally use a USB to serial port module, with only one purpose, to map the computer's USB port to a serial port.
Product parameters:
Working voltage: 5V or 3.3V
Default working voltage: 5V
Working temperature: -40°C~85°C
Baud rate: 50~2Mhz
Operating system: Windows xp, 7, 8, 10
ISP and communication:
Support STC MCU download program
Support STM8 download program with boothloader
Support Arduino download program with boothloader
Support STM32 serial port download program
Pin description:
V+VCC power supply positive input and output: when the working voltage is 5V, it is the 5V power output, when the working voltage is 3.3V, it is connected to the external 3.3V power supply
V- GND Power negative pole: 0V
TX data sending end: connect to MCU or target board data receiving end
RX data receiving end: connect to MCU or target board data sending end
Package Included:
CH340C module X1
