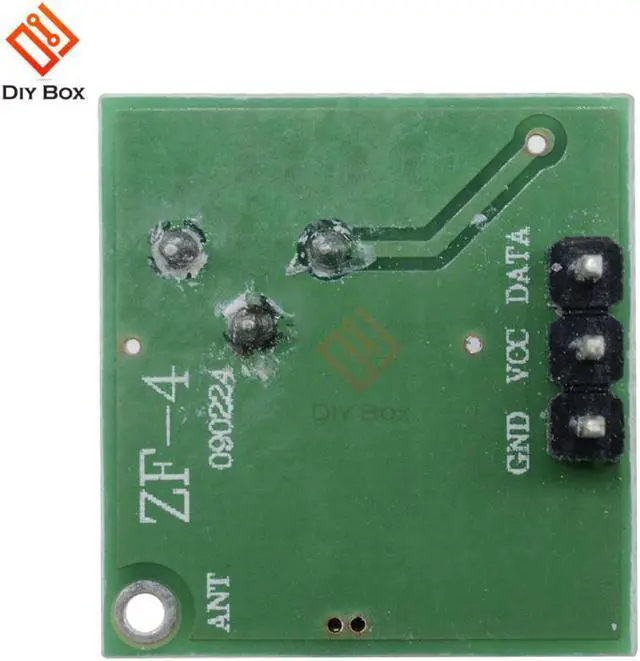

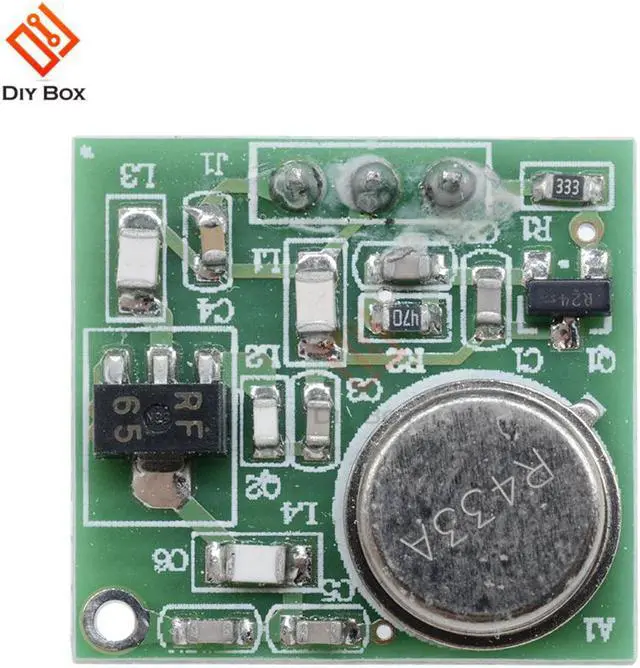

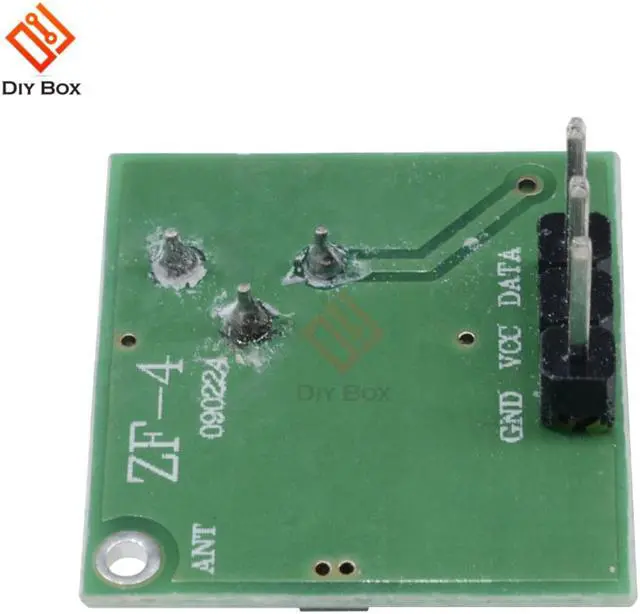

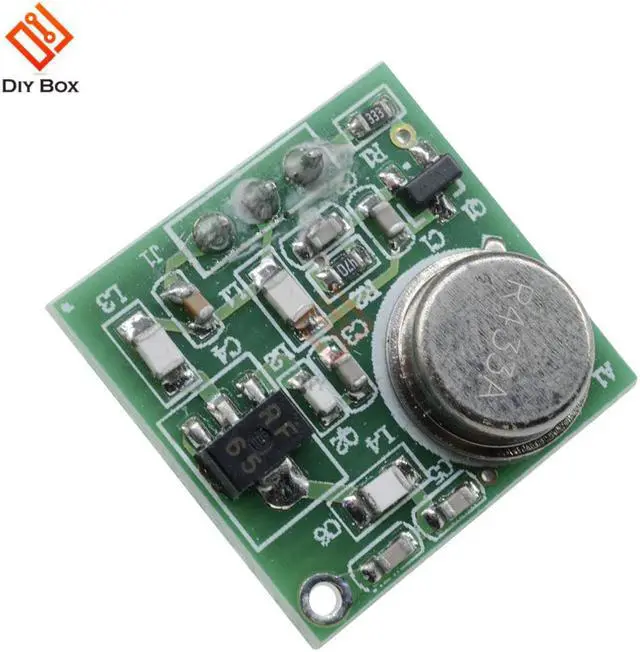

Practical DC 9V-12V Wireless FM Board Transmitter Module ZF-4 433.92MHz #P 433MHZ Wireless FM Module Transmitter
- Practical DC 9V-12V Wireless FM Board Transmitter Module ZF-4 433.92MHz #P 433MHZ Wireless FM Module Transmitter
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
Model Number:Wireless FM Board Transmitter Module
Practical DC 9V-12V Wireless FM Board Transmitter Module ZF-4 433.92MHz #P 433MHZ Wireless FM Module Transmitte
100% and
High speed rate and can be used for a long time
Small size, wide operating voltage range (9V-12V)
High emission power, low power consumption
Great for encoding sensors or controlling various functions wirelessly - no other processor or computing required
Perfect for any wireless application- sending data, car alarms, door openers, home security, electronic monitoring etc.
Description:
Weight: 50g
Model: ZF-4
Emission frequency: 433.92MHZ
Operating voltage: DC 9V-12V
Type of modulation: ASK
Quiescent current: 0uA
Operating current: 8-10mA
Radiated power: 30-40mW (Receiver Sensitivity -108dBm)
Transmission distance: 1000m
Size: 19*18*6.2mm / 0.8*0.7*0.2inch(L x W x H)
Package Included :
1 x Wireless Transmitter Module
Origin:CN(Origin)
Model Number:Wireless FM Board Transmitter Module
Practical DC 9V-12V Wireless FM Board Transmitter Module ZF-4 433.92MHz #P 433MHZ Wireless FM Module Transmitte
100% and
High speed rate and can be used for a long time
Small size, wide operating voltage range (9V-12V)
High emission power, low power consumption
Great for encoding sensors or controlling various functions wirelessly - no other processor or computing required
Perfect for any wireless application- sending data, car alarms, door openers, home security, electronic monitoring etc.
Description:
Weight: 50g
Model: ZF-4
Emission frequency: 433.92MHZ
Operating voltage: DC 9V-12V
Type of modulation: ASK
Quiescent current: 0uA
Operating current: 8-10mA
Radiated power: 30-40mW (Receiver Sensitivity -108dBm)
Transmission distance: 1000m
Size: 19*18*6.2mm / 0.8*0.7*0.2inch(L x W x H)
Package Included :
1 x Wireless Transmitter Module
