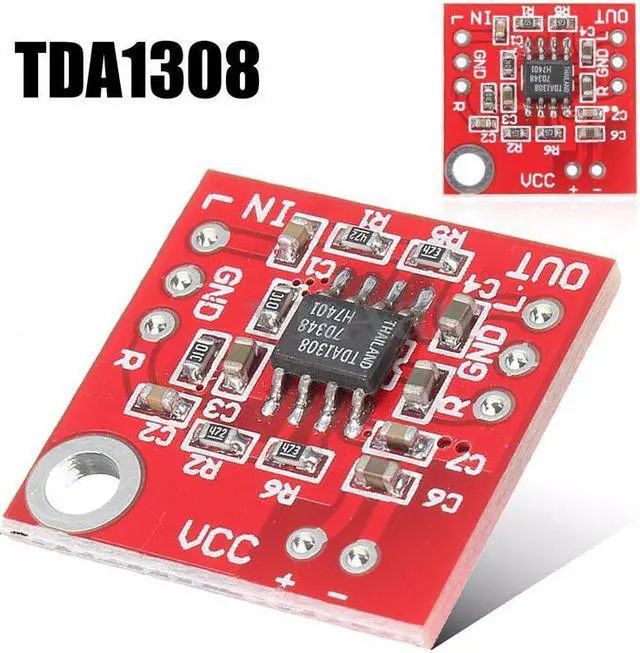

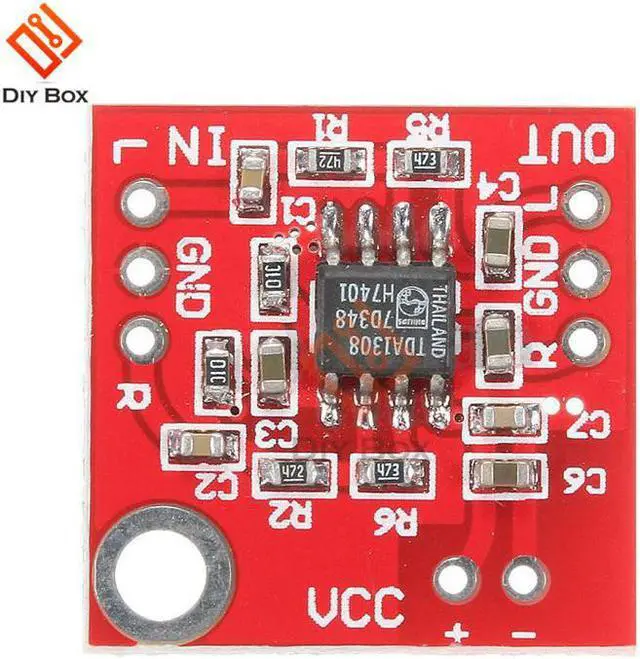

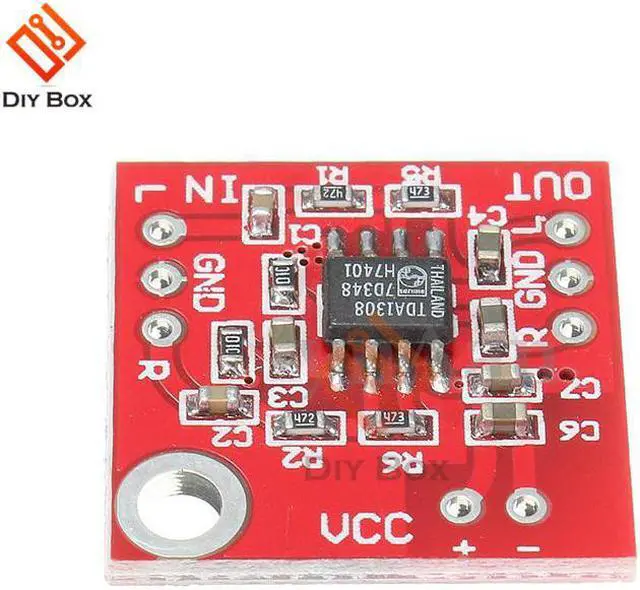

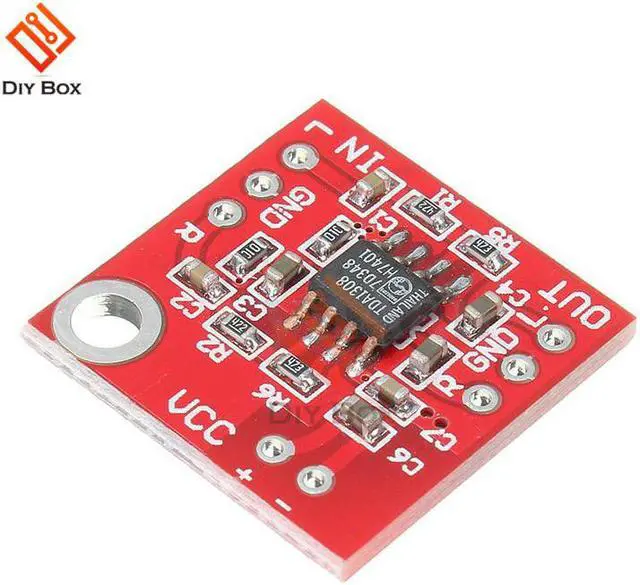

Mini TDA1308 Headphone power Amplifier Board module Audio Preamplifier 3V-6V Class A Class B Stereo Sound Board Low Power AMP

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Speakers
Model Number:TDA1308 audio amplifier board
Bundle:Bundle 1
Weight:2g
Package:Yes

Mini TDA1308 Headphone power Amplifier Board module Audio Preamplifier 3V-6V Class A Class B Stereo Sound Board Low Power AMP
Description:
The TDA1308 is an integrated class AB stereo headphone
driver contained in an SO8 or a DIP8 plastic package. The
device is fabricated in a 1 mm CMOS process and has
been primarily developed for portable digital audio
Features:
1.Wide temperature range
2.No switch ON/OFF clicks
3.Excellent power supply ripple rejection
4.Low power consumption
5.Short-circuit resistant
6.High performance
7.high signal-to-noise ratio
8.high slew rate,low distortion
9.Large output voltage swing.
Specifications:
1. Working voltage:3V-6V
2. Size:20*20mm
Package included:
1x DA1308 Headphone Amplifier Board
