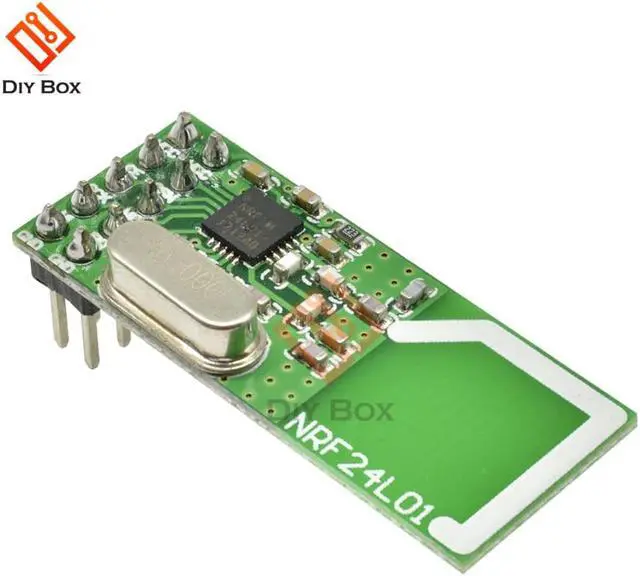

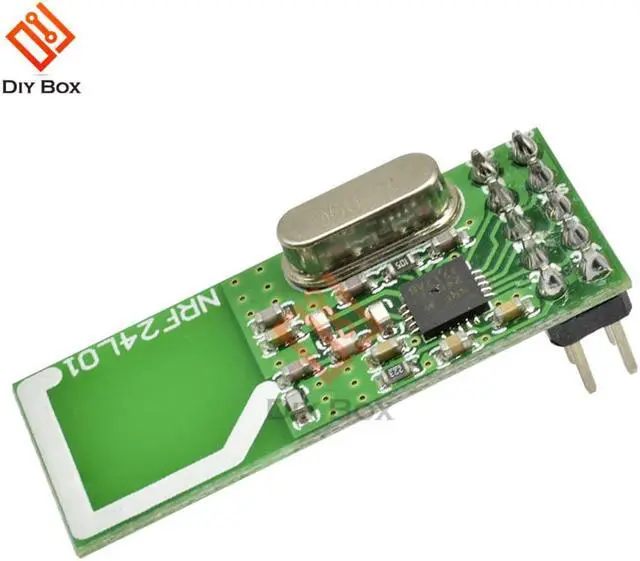

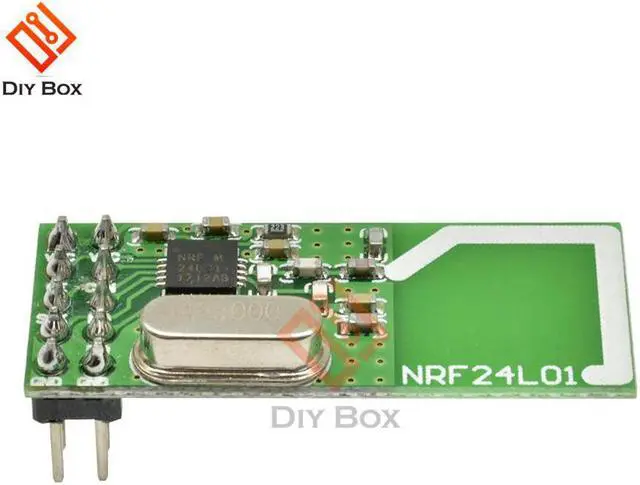

NRF24L01+ 125 Channels 2.4GHz Antenna RF Wireless Communication Transceiver Module 24L01 Multi-point Low-power 1.9-3.6

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:NRF24L01

Note:please buy 2 pcs,so you can use one as receiver,the other use as transmitter .
1.Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
2.125 Channels, Multi-point communication and frequency hopping to meet the communication needs
3.Built-in hardware CRC error detection, Multipoint communication address control.
4.Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
5.Built-in 2.4Ghz antenna
6.Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
7.Built-in voltage regulator
8.Standard DIP Pitch Interface for embedded applications
9.size: 34mm X 17mm X 1mm
