3.7V 5V to 12V DC-DC Booster Module Step Up Power Module 10W can set 5V 8V 9V 12V

Origin:CN(Origin)
Model Number:3.7V 5V to 12V DC-DC Booster Module

Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Simple and convenient to use
3. Good product performance
4. The appearance of the product is exquisite and small
5. Wide application
Parameter:
Output voltage range: 3V~5.5V, the input voltage needs to be lower than the set output voltage
The output voltage can be set to 5V/8V/9V/12V, the default is 12V
Output capability: when input by 3.6V lithium , it can output 5V1.5A, 8V1A, 12V0.8A;
When input at 5V, it can output 8V1.2A, 9V1.2A, 12V1A
When the default 12V output, the LED indicator consumes about 1mA (the input current is about 3mA)
If the indicator light is turned off, the input current is less than 1mA at no load
Product size: 2.7*1.7*0.46cm
Voltage setting instructions:

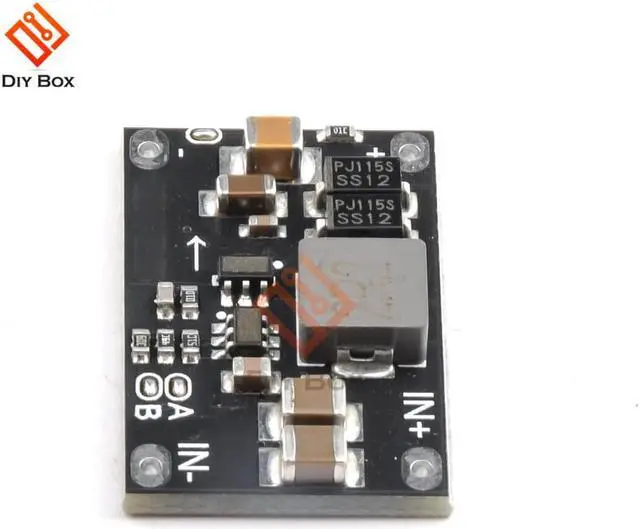

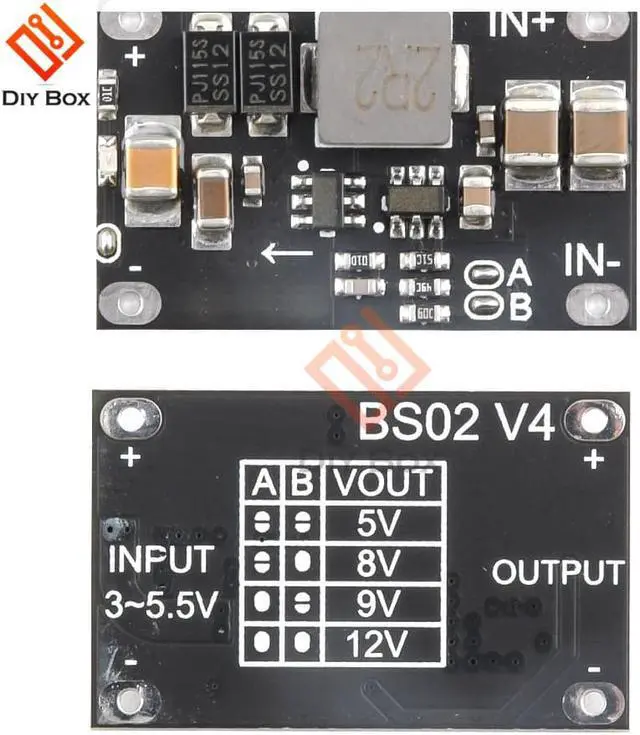

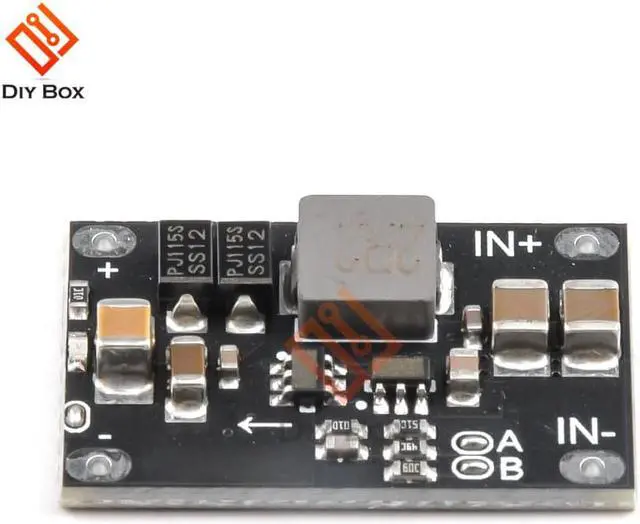

The words A and B can be seen on the front of the PCB. Use an electric soldering iron to change the on-off of the pad next to the character to change the output voltage.

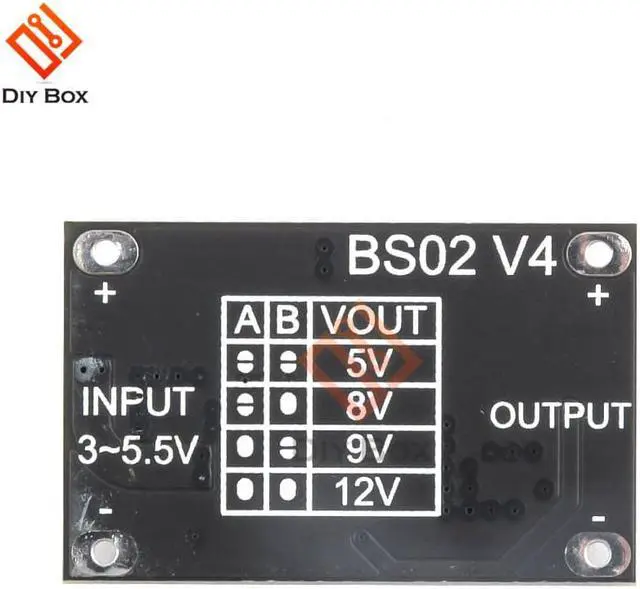

A: Disconnect B: Disconnect VOUT 5V
A: Disconnect B: Connect VOUT 8V
A: Connect B: Disconnect VOUT 9V
A: Connected B: Connected to VOUT 12V
The pad next to the LED indicator can also be disconnected to turn off the indicator
Package Included:
Boost module *1
