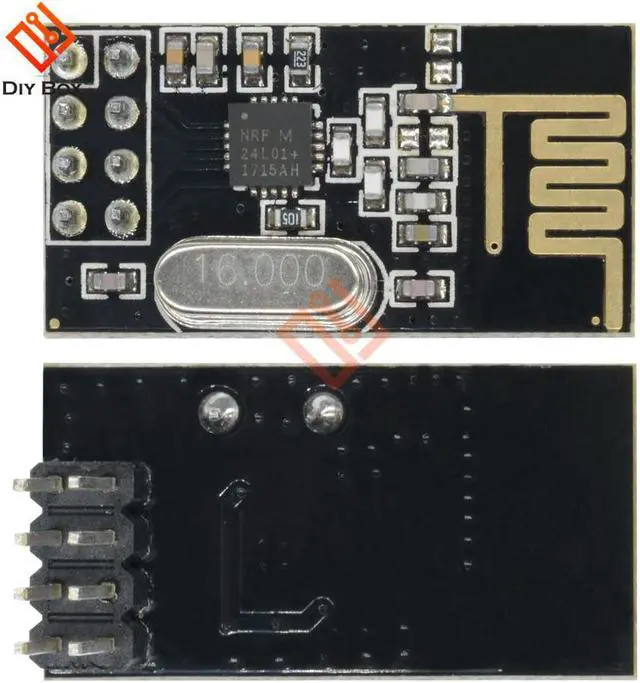

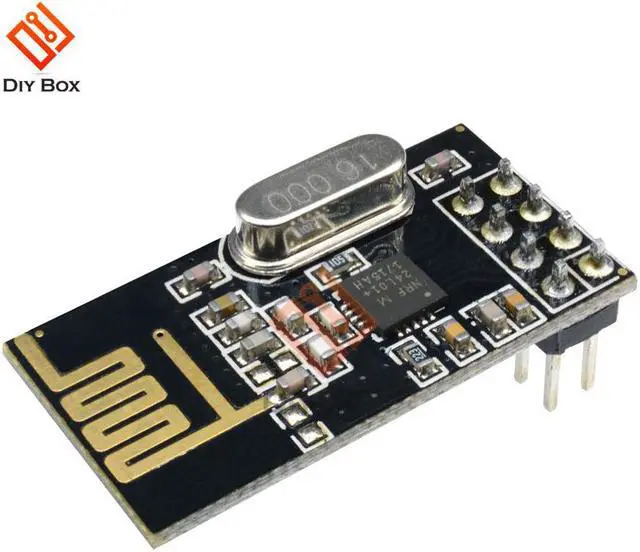

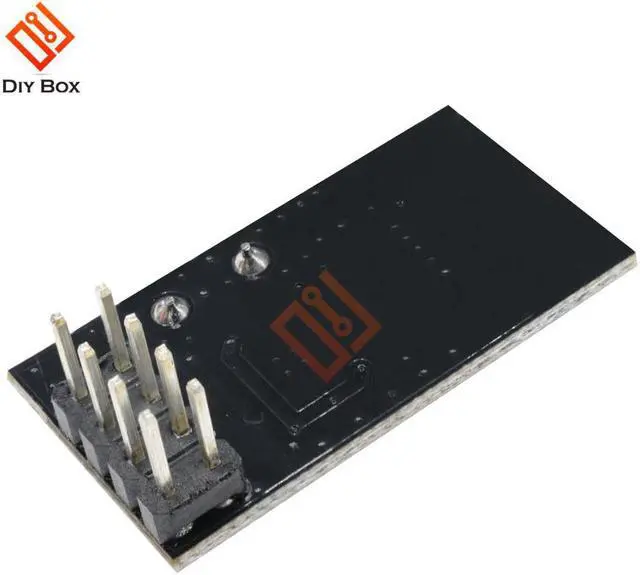

Multipoint Communication Control NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module For Arduino
- Multipoint Communication Control NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module For Arduino
+
+
Overview
Specs
Reviews
Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module
Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
125 Channels, Multi-point communication and frequency hopping to meet the communication needs
Built-in hardware CRC error detection, Multipoint communication address control.
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
Built-in 2.4Ghz antenna
Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
Built-in voltage regulator
Standard DIP Pitch Interface for embedded applications

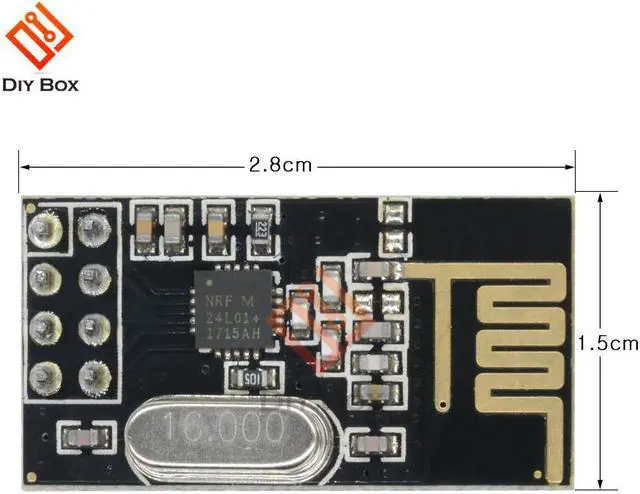

size: 34mm X 17mm X 1mm
Package included
1x NRF24L01+ 2.4GHz Wireless Transceiver Module
Certification:NONE
Origin:CN(Origin)
Model Number:NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module
Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
125 Channels, Multi-point communication and frequency hopping to meet the communication needs
Built-in hardware CRC error detection, Multipoint communication address control.
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
Built-in 2.4Ghz antenna
Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
Built-in voltage regulator
Standard DIP Pitch Interface for embedded applications
size: 34mm X 17mm X 1mm
Package included
1x NRF24L01+ 2.4GHz Wireless Transceiver Module
