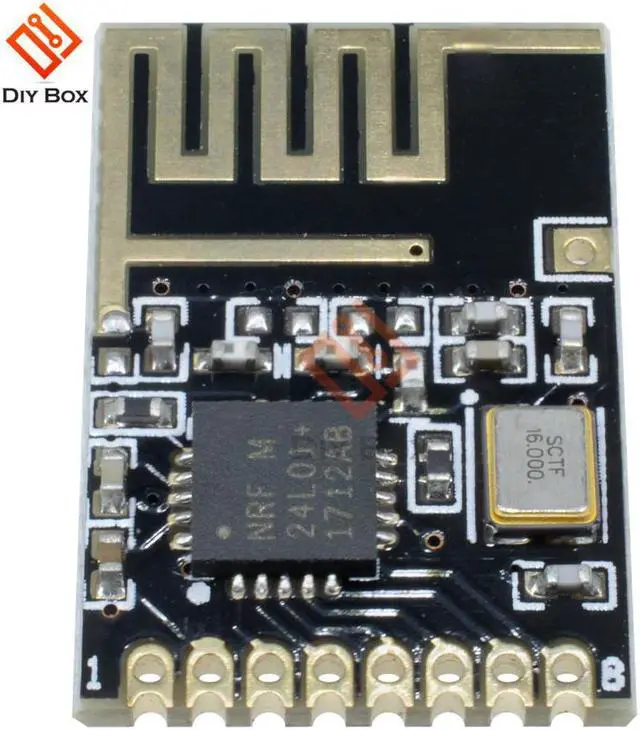

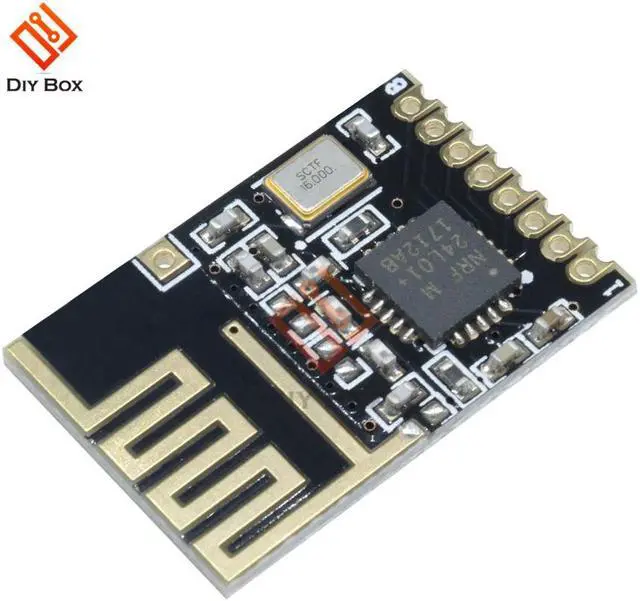

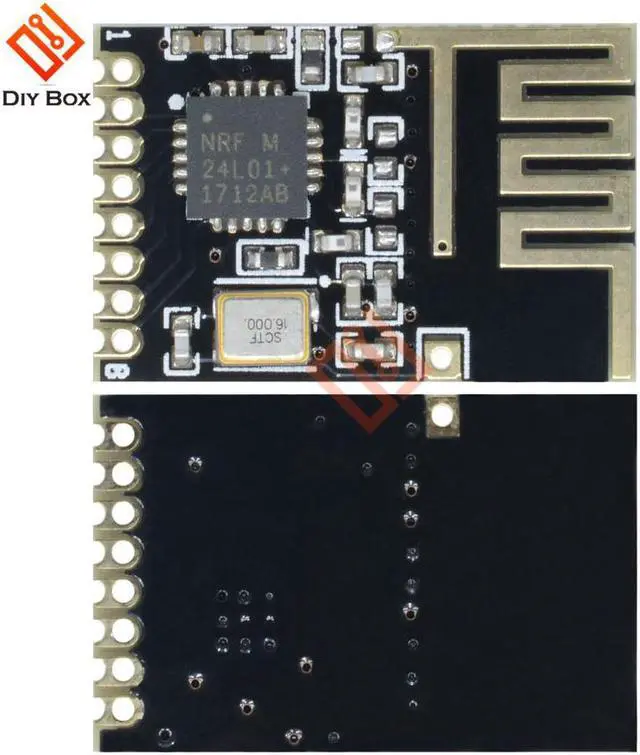

diymore Mini NRF24L01 + 2.4GHz 1.27MM RF Wireless Module Mini Version Power Enhanced Version SMD Receiver Transceiver Board 5V

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:Mini NRF24L01+ SMD 1.27MM
Intergrated Feature:WiFi 802.11b/g/n

NRF24L01 + wireless module
2Mbit / s 1Mbit / s 250Kbit / s transfer rate options
MultiCeiver hardware to provide the 6 receiver functions at the same time
+ / - 60 ppm crystal
Only need an external inductance when match antenna
No multi-layer PCB
5V input tolerance level
No need external level converter
Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU
No MCU with SPI Interface
20 pin 4x4mm QFN leadless package very few external components
The 2Mbit / s rate when the peak current 12.5mA received
The 2Mbit / s rate @ 0dBm output current of 11mA peak
2Mbit / s rate of only a small average current
400nA Power-down mode, power consumption
Power consumption of 32uA in standby mode
130us fast switching and wake-up time
With on-chip voltage regulator oltage regulators
In the 1.9 to 3.6V low voltage operation
Possible to reduce noise
Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.
Package Including
1pcs x NRF24L01 + SMD 1.27MM wireless module Small Size
