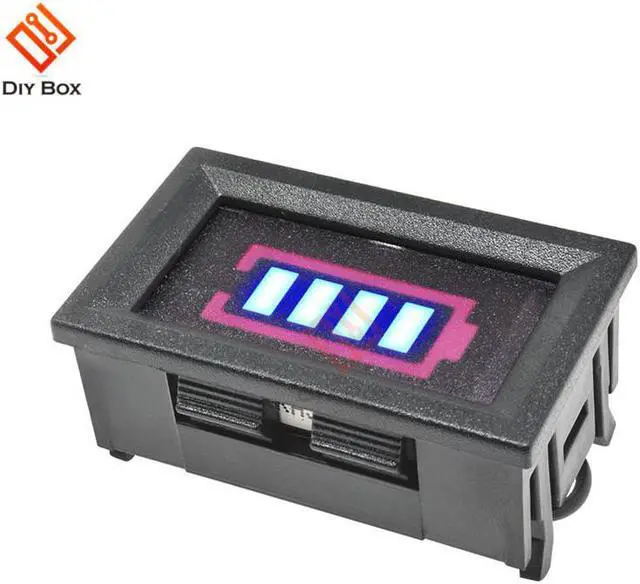

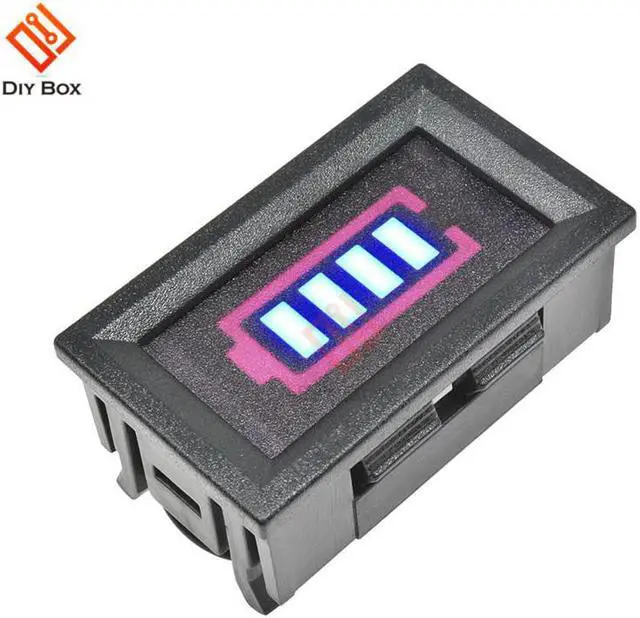

BMS 3S 18650 Lithium Capacity Indicator Display with Shell Box Protect Cover 12.6V Power Test Charger Accessory

Accessory Type:Accessories
Origin:CN(Origin)
Model Number:Li-ion Lithium Capacity Indicator
feature:3S 18650 Lithium Capacity Indicator
feature 1:BMS 3S 18650 12.6V Power Test

BMS 3S 18650 Lithium Capacity Indicator Display with Shell Box Protect Cover 12.6V Power Test Charger Accessory
Features:
1.type electricity quantity display
2.Wide application fields:lithium

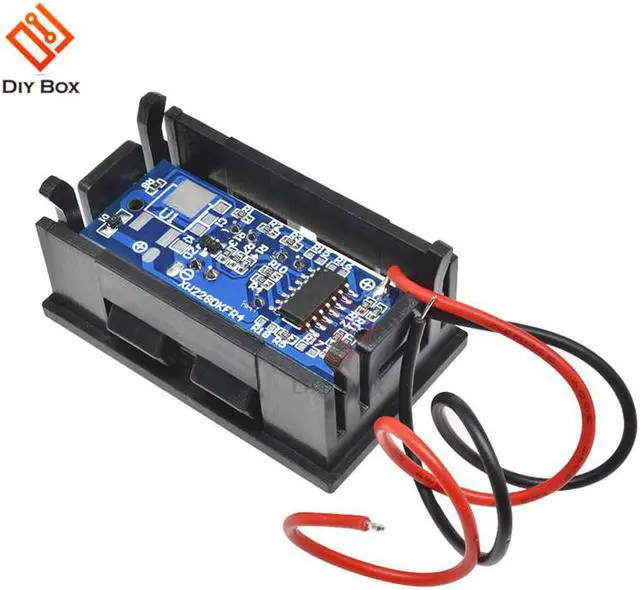

3.Using Method:connect display board positive and negative port with tested positive and negative port,digital tube will display real-time electricity quantity
4.Display Color:blue
Display Electricity Quantity Parameter:
1.When voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents quantity)
2.When voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity

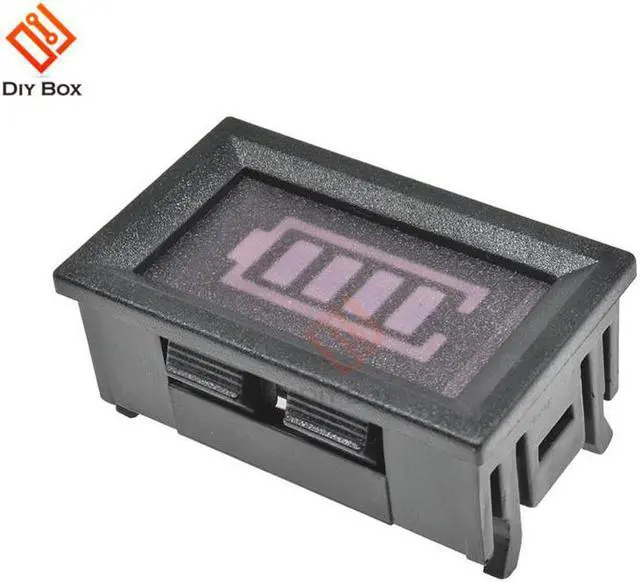

5.When voltage is less than N*3.3V,4 blocks display will be off;
