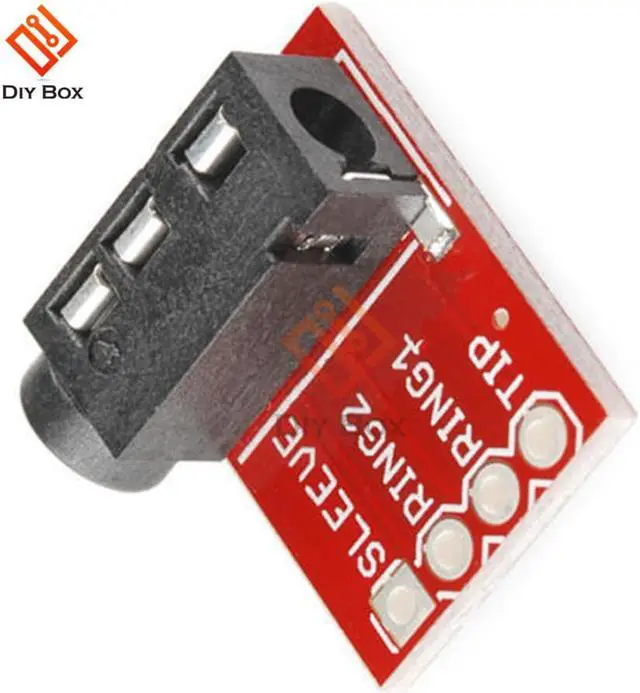

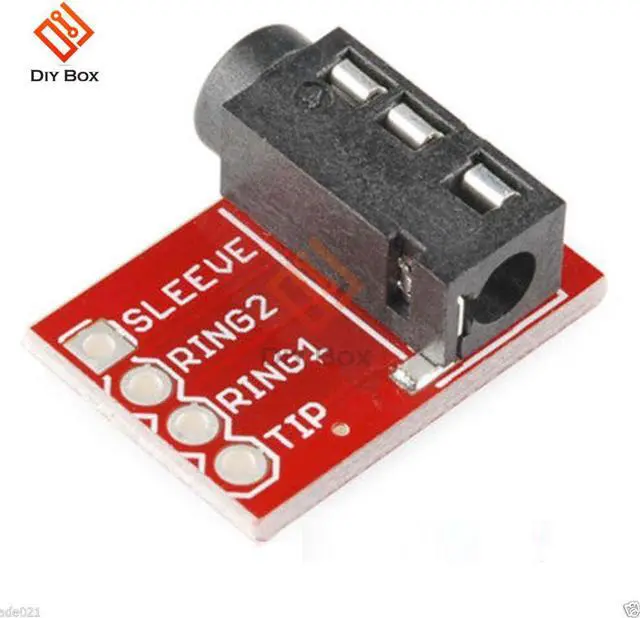

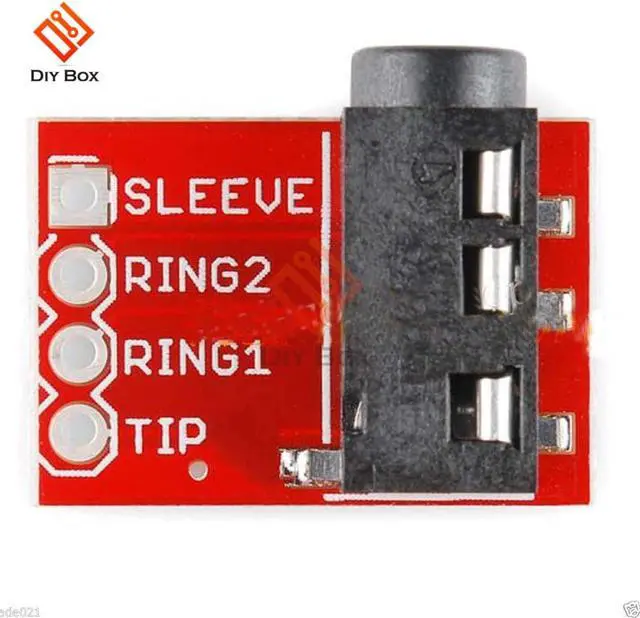

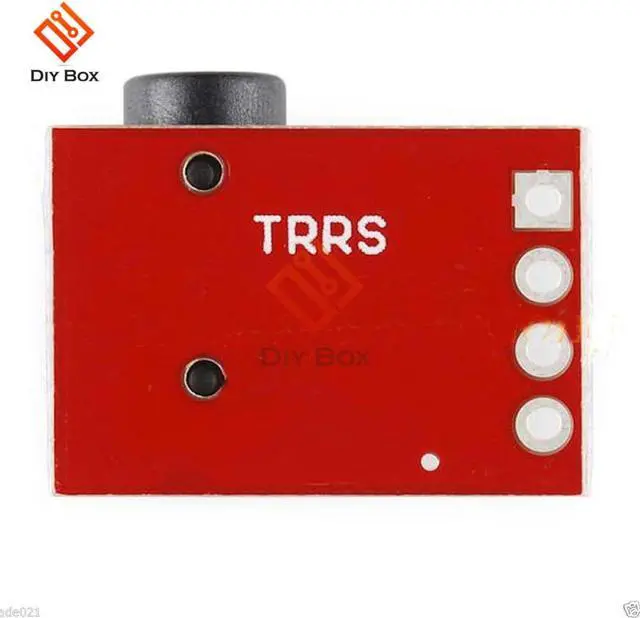

TRRS Audio Board 3.5mm Jack Stereo Earphones Headset Audio Breakout Board Extension Module
- TRRS Audio Board 3.5mm Jack Stereo Earphones Headset Audio Breakout Board Extension Module
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Model Number:3.5mm TRRS audio board
Dimensions (WxHxD)):1.80*1.49*0.65cm
Weight:0.002
100% and !!
TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for "Tip, Ring, Ring, Sleeve," which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-headsets) or to carry a video signal (like in some MP3/MP4 players). This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Model Number:3.5mm TRRS audio board
Dimensions (WxHxD)):1.80*1.49*0.65cm
Weight:0.002
100% and !!
TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for "Tip, Ring, Ring, Sleeve," which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-headsets) or to carry a video signal (like in some MP3/MP4 players). This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.
