MB102 Breadboard Power Supply Board Module 3.3V/5V Dual Voltage for Arduino
- Fit for: MB-102 Breadboard; Arduino Board Solderless Breadboard;Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
+
+
Overview
Specs
Reviews
Great Sensors for Arduino Project. Having Fun With Electronics and Programming!
KEY_TAB
Description:

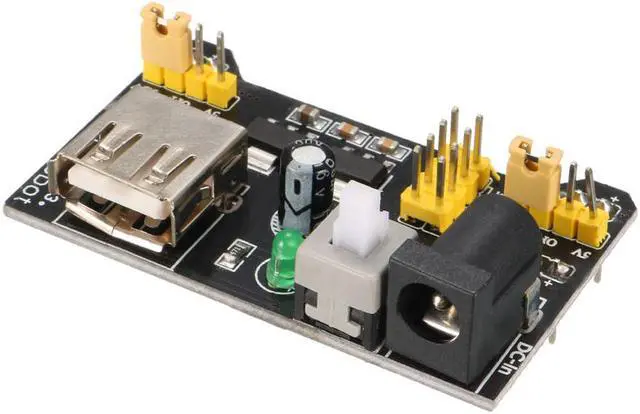

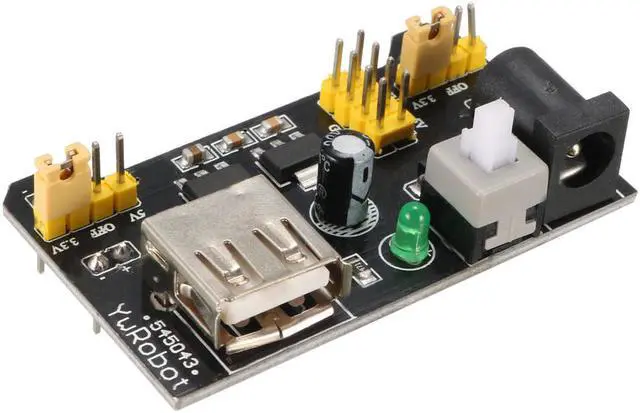

This is a very simple breadboard power supply board that takes power from a DC wall wart or an USB port and provides dual output voltages (5.0V and 3.3V).
Apply to MB102 breadboard.
The output voltage for each breadboard rail can be selected through a 2-pin shunt jumper.
Fluctuation two road independent control. Can switch over to 0 V, 3.3 V, 5 V.
On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads.
KEY_TAB
Specification:
Input Voltage: DC 6.5V-12V or USB port
Output Voltage: 3.3V, 5V
Max. Output Current: 700mA

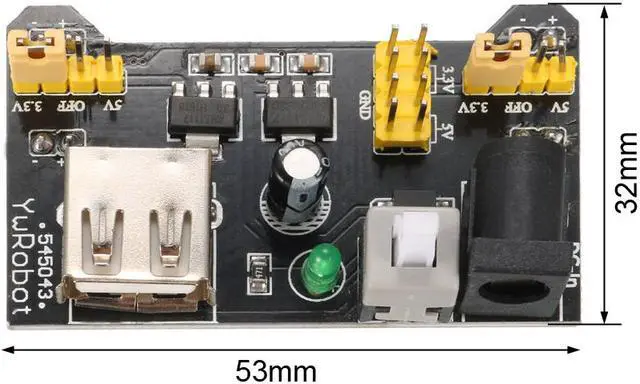

PCB Size: 53mm x 32mm (L*W)
KEY_TAB
Package Includes:
1 x Breadboard Power Supply Module (Breadboard in not included)
