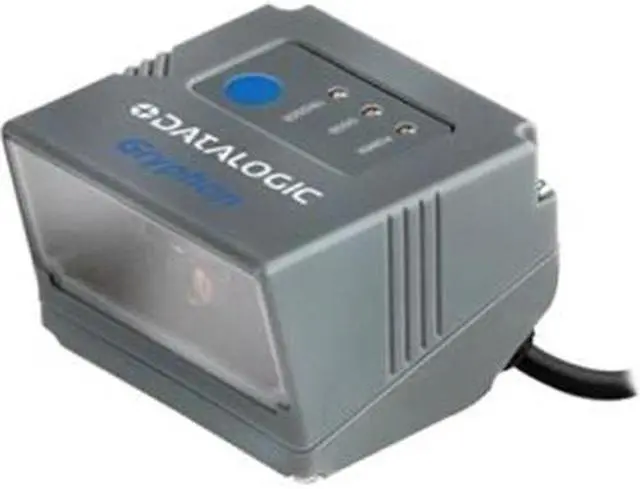

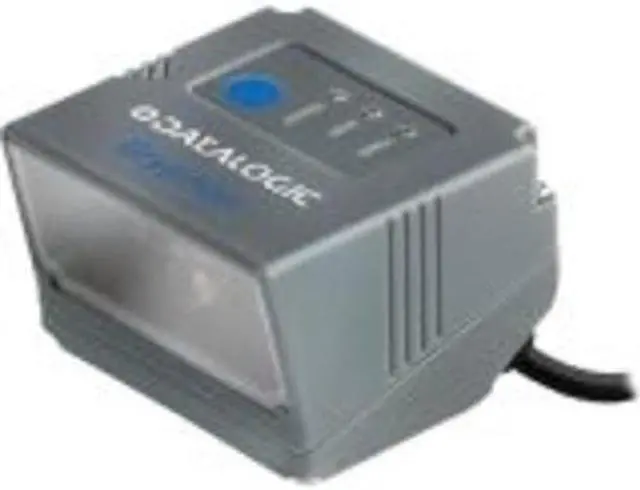

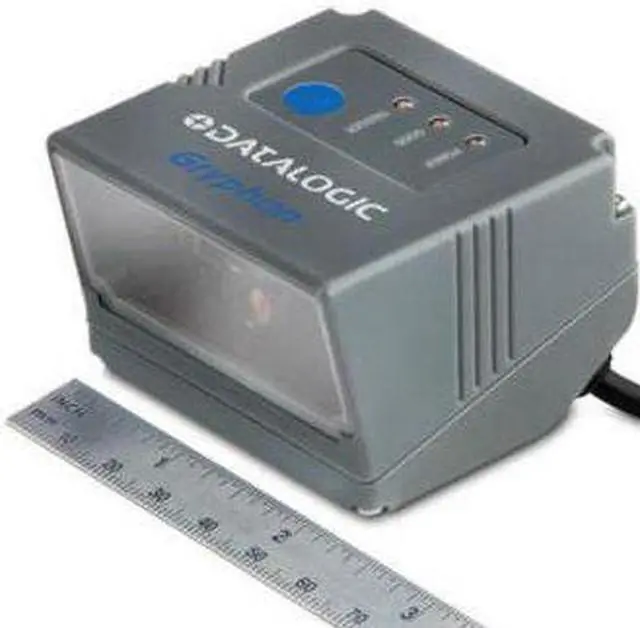

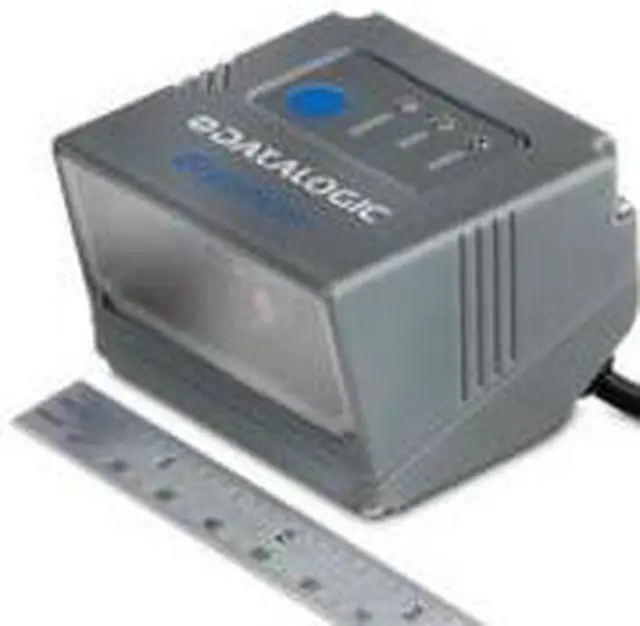

Datalogic - GFS4170 - Datalogic Gryphon GFS4170 Fixed Mount Bar Code Reader - Cable Connectivity - 320 scan/s - 1D - LED

The Gryphon GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor. Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.

Host Interface: USB
Barcode Symbology Supported: 1D /
Linear Codes: Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes Host Interface: USB
Product Type: Barcode Scanner
Limited Warranty: 18 Month
Product Type: Barcode Scanner
Manufacturer Part Number: GFS4170
Limited Warranty: 18 Month
Weight (Approximate): 6 oz
Connectivity Technology: Cable
Form Factor: Fixed Mount
Connectivity Technology: Cable
Form Factor: Fixed
Mount Manufacturer: Datalogic S. p.
A Product Model: GFS4170
Product Name: Gryphon GFS4170 Fixed Mount Bar Code Reader
Product Line: Gryphon
Brand Name: Datalogic
Light Source: LED
Product Series: 4100
Brand Name: Datalogic
Light Source: LED
Country of Origin: Slovakia
Height: 1.5
Width: 2.2
Depth: 2.3 Image
Sensor Type: CCD
Product Family: Gryphon 4100
Scanning Capability: 1D
Environmentally Friendly: Yes
Environmental Certification: China RoHS
Environmental Certification: RoHS
Scan Rate: 320 scan/s
Image Sensor Type: CCD
Scanning Capability: 1D
