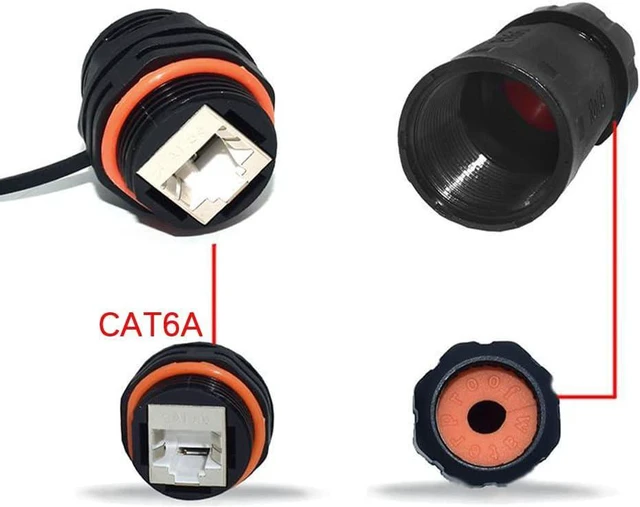

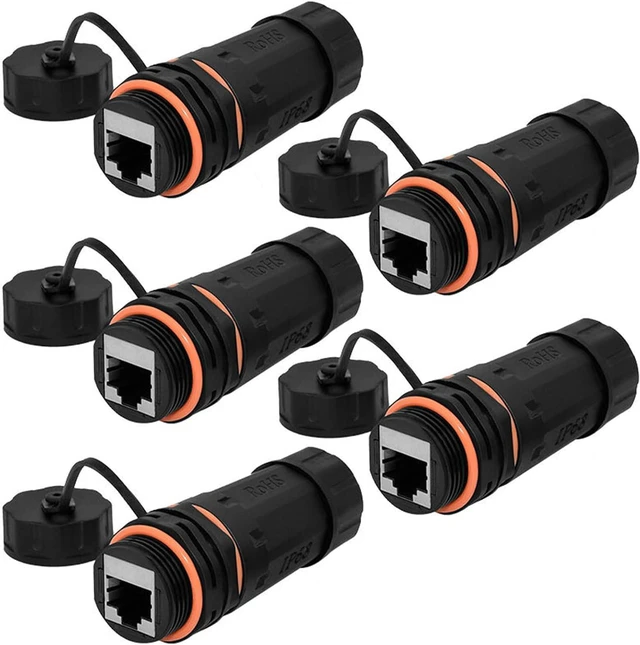

5PCS Shielded RJ45 CAT6A Waterproof Panel Mount Connector IP68 Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Female to Female Outdoor Network Adapter
- The Waterproof RJ45 Connector are IP68 Compliant. Prevent the network parts from moisture, dirt and insects for quality connections. Perfect for external holiday lighting displays, IP security cameras, industrial applications.
- CAT6A standard provides performance of up to 500 MHz and backwards compatible with CAT5/CAT5E/CAT6. Transfer speed up to 10-Gigabit.
- Apply to cable size: Ø4.5-7.5mm. These RJ45 waterproof connectors can accommodate Ethernet cables as large as CAT6 CMX rated, down to standard CAT5.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refund.
+
+
Overview
Specs
Reviews
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6/6A patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.
Specifications:
INGRESS PROTECTION: IP68Waterproof and dustproof
Thread: M23
Color: Black, Blue
Number of cores: 8 PIN
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock

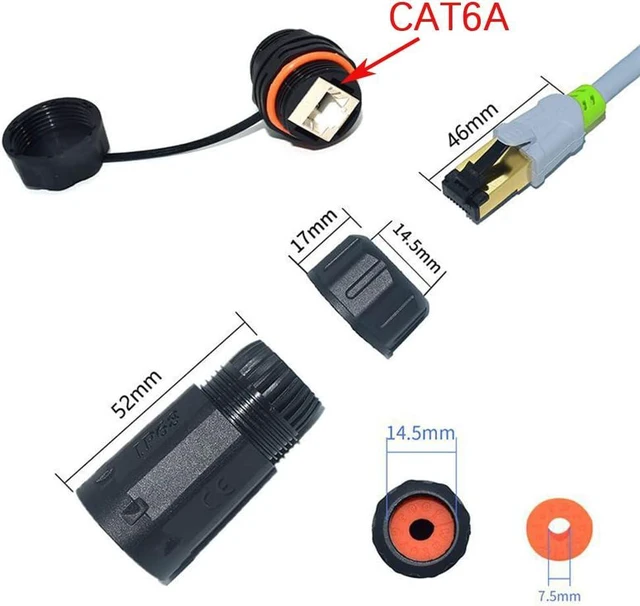

Connector wire-in range: OD (4.57.5) mm
Connector transmission classification: CAT5, CAT5E, CAT6, CAT6A
Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M

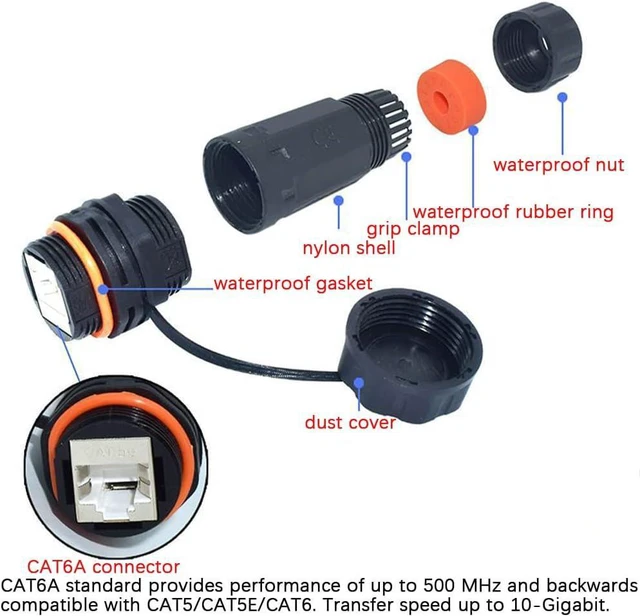

Material:
Shell: nylon plus fiber (UL94V-0)
Socket contact pin: 0.5mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x M23-CAT6A Shielded Waterproof RJ45 Connector
Specifications:
INGRESS PROTECTION: IP68Waterproof and dustproof
Thread: M23
Color: Black, Blue
Number of cores: 8 PIN
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (4.57.5) mm
Connector transmission classification: CAT5, CAT5E, CAT6, CAT6A
Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: nylon plus fiber (UL94V-0)
Socket contact pin: 0.5mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x M23-CAT6A Shielded Waterproof RJ45 Connector
