Main image of PCIe to USB 3.2 Gen1 & M.2 HAT, Compatible with Raspberry Pi 5, Supports NVMe Protocol Solid State Drive, Expands 4-Ch USB 3.2 Ports, High-Speed Reading/Writing, HAT+ Standard

Alt view image 2 of 5 - PCIe to USB 3.2 Gen1 & M.2 HAT, Compatible with Raspberry Pi 5, Supports NVMe Protocol Solid State Drive, Expands 4-Ch USB 3.2 Ports, High-Speed Reading/Writing, HAT+ Standard

Alt view image 3 of 5 - PCIe to USB 3.2 Gen1 & M.2 HAT, Compatible with Raspberry Pi 5, Supports NVMe Protocol Solid State Drive, Expands 4-Ch USB 3.2 Ports, High-Speed Reading/Writing, HAT+ Standard

Alt view image 4 of 5 - PCIe to USB 3.2 Gen1 & M.2 HAT, Compatible with Raspberry Pi 5, Supports NVMe Protocol Solid State Drive, Expands 4-Ch USB 3.2 Ports, High-Speed Reading/Writing, HAT+ Standard

Alt view image 5 of 5 - PCIe to USB 3.2 Gen1 & M.2 HAT, Compatible with Raspberry Pi 5, Supports NVMe Protocol Solid State Drive, Expands 4-Ch USB 3.2 Ports, High-Speed Reading/Writing, HAT+ Standard

Shop All SQUARE D Products | Visit EmpressTech Store

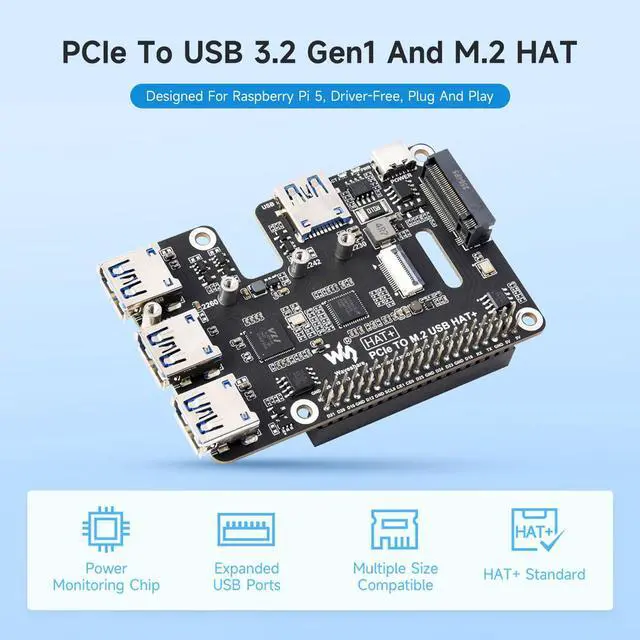

PCIe to USB 3.2 Gen1 & M.2 HAT, Compatible with Raspberry Pi 5, Supports NVMe Protocol Solid State Drive, Expands 4-Ch USB 3.2 Ports, High-Speed Reading/Writing, HAT+ Standard

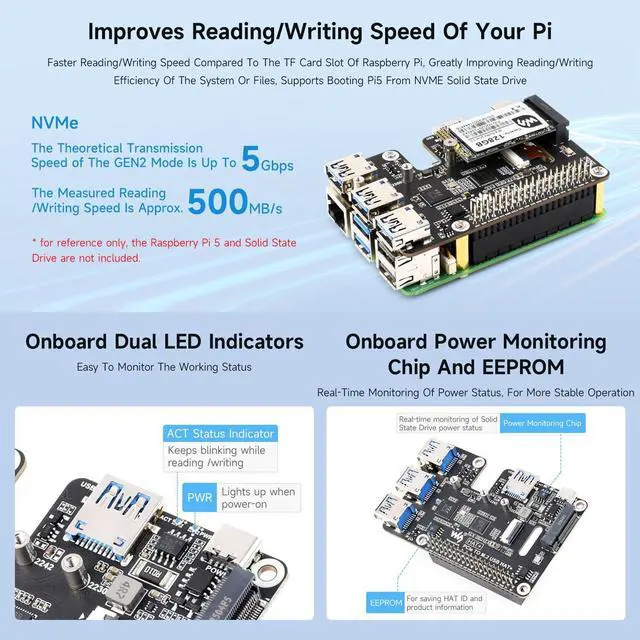

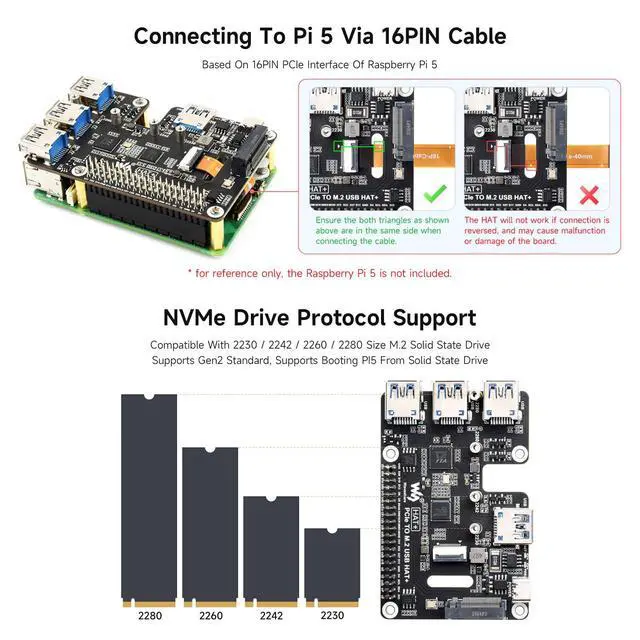

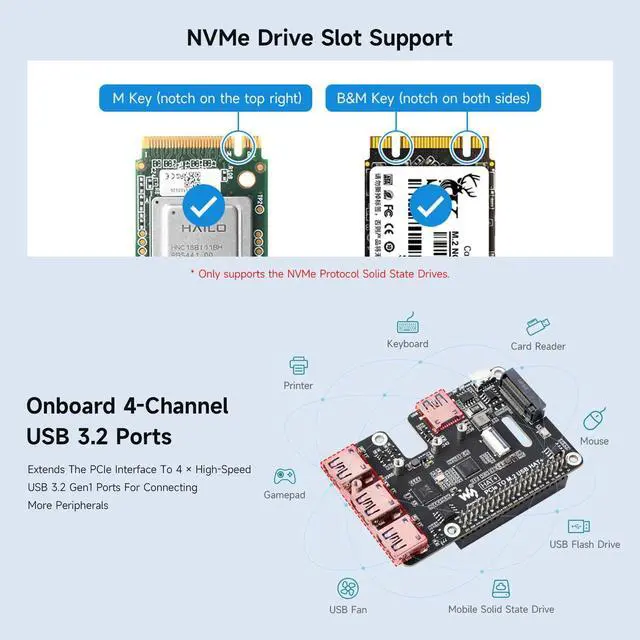

High-Speed NVMe SSD Support: This HAT+ enables Raspberry Pi 5 to connect to M.2 NVMe SSDs in 2230 and 2242 form factors, supporting both PCIe Gen2 and Gen3 modes.It allows for high-speed read/write operations and the capability to boot directly from the SSD, enhancing system performance; Comprehensive Power Management: Equipped with an onboard power monitoring chip and EEPROM, the HAT+ provides real-time monitoring of the SSD's power status.This ensures stable operation and efficient power usage.; Enhanced Cooling Design: The HAT+ features a reserved airflow vent for a cooling fan, which helps maintain optimal temperatures for both the Raspberry Pi 5 and the connected SSD during intensive operations.; Easy Installation and Compatibility:Designed specifically for Raspberry Pi 5, the HAT+ connects via a 16-pin PCIe interface.It is compatible with M.2 SSDs of sizes 2230 and 2242, and supports booting from the SSD with appropriate configuration.; Clear Operational Indicators: The HAT+ includes onboard dual LED indicators: a power (PWR) LED that remains on when powered, and an activity (ACT) LED that blinks during read/write operations.These indicators provide clear visual cues of the device's operational status.; Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.

Overview

Specs

Reviews

Product description

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 90 days
This item is covered by EmpressTech Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIC6W2KZS5380
