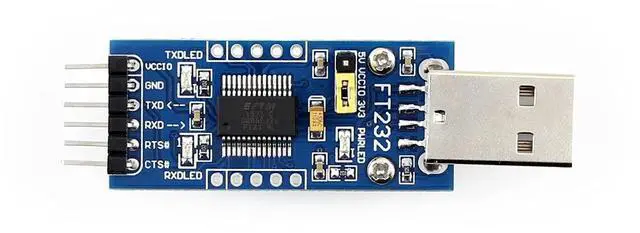

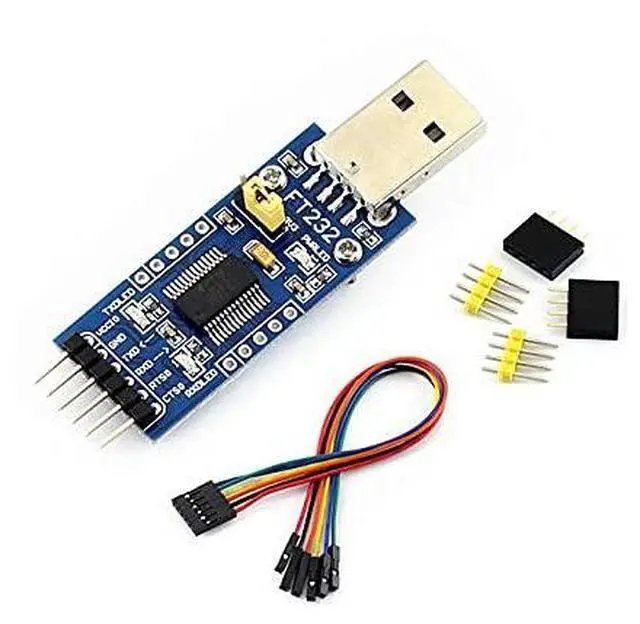

FT232 USB to TTLUART Communication Module, USB Type C Connector, Compatible with Mac OS, Linux, Android, Wince, Windows 7/8/8.1/10/11...

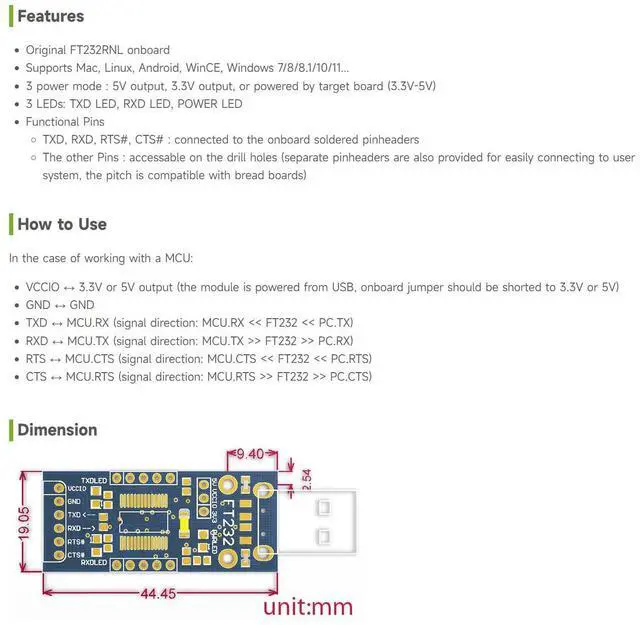

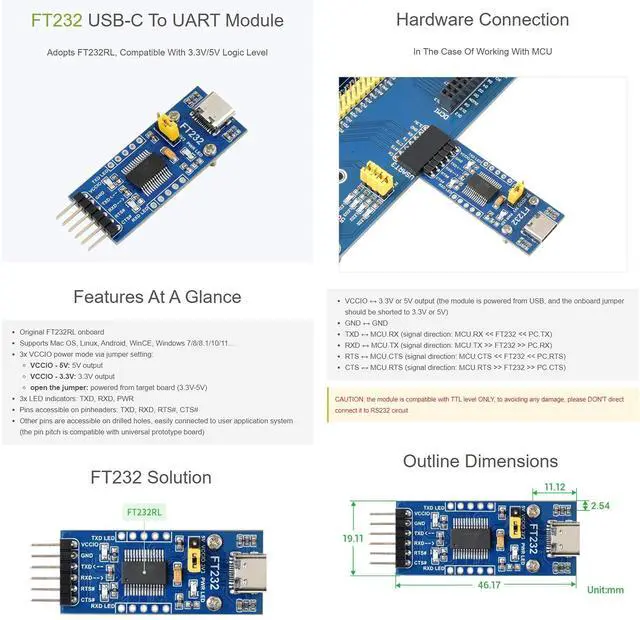

Product description FT232 USB To UART (TTL) Communication Module, USB-C Connector Features At A Glance Original FT232RL onboard Supports Mac OS, Linux, Android, WinCE, Windows 7/8/ 8.1 /10/11... 3x VCCIO power mode via jumper setting: VCCIO
- 5V: 5V output
VCCIO - 3.3V: 3.3V
output open the jumper: powered from target board ( 3.3V -5V) 3x
LED indicators: TXD, RXD, PWR
Pins accessible on pinheaders: TXD, RXD, RTS#, CTS# Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board) VCCIO - 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V) GND - GND TXD - MCU.
RX (signal direction: MCU. RX << FT232 << PC.TX) RXD - MCU.TX (signal direction: MCU.TX > > FT232 >> PC. RX) RTS - MCU.
CTS (signal direction: MCU. CTS << FT232 << PC.RTS) CTS - MCU.RTS (signal direction: MCU.RTS > > FT232 >> PC.
CTS) CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
WIKI:. com/wiki/FT232_USB_UART_Board_ (Type_C)? amazon
