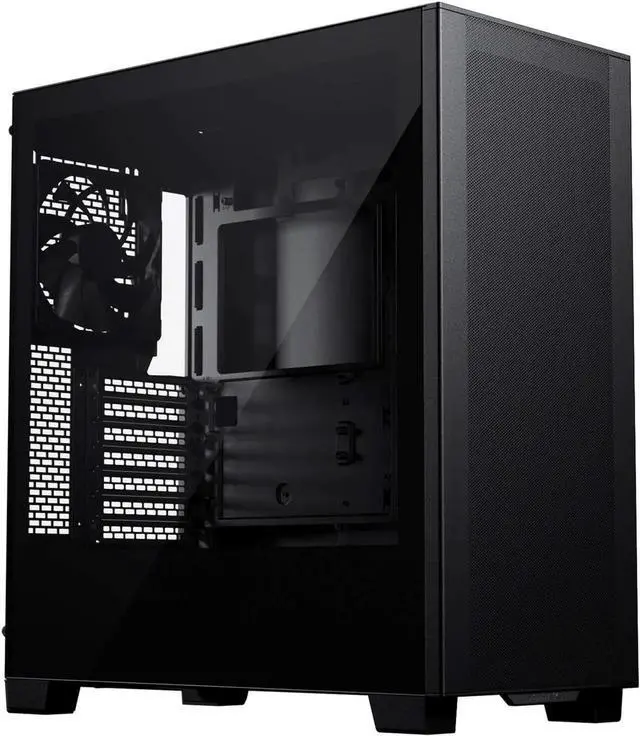

Phanteks XT Pro, Mid-Tower Gaming Chassis, High Airflow Performance Mesh, Tempered Glass Window, 1x M25-120 Black fan included, Black
Limited time offer, ends 03/09 By Mystery Gate

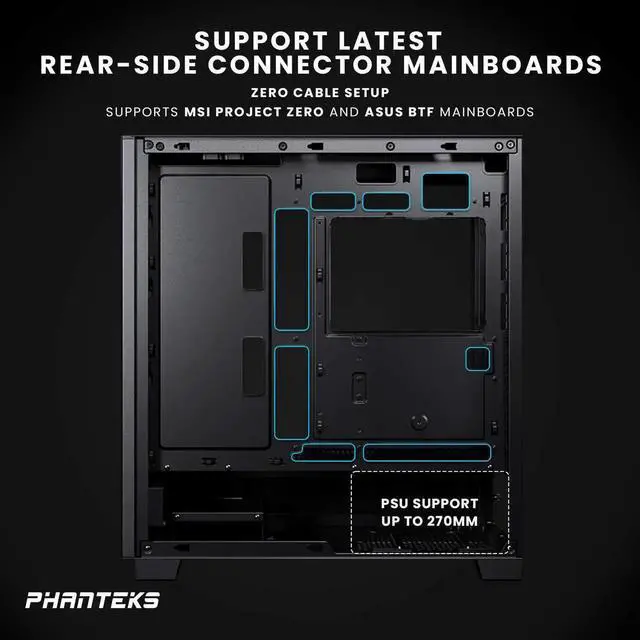

- Support for the latest rear-side connector mainboards
- Ultra-fine Performance mesh front panel and top dust filter

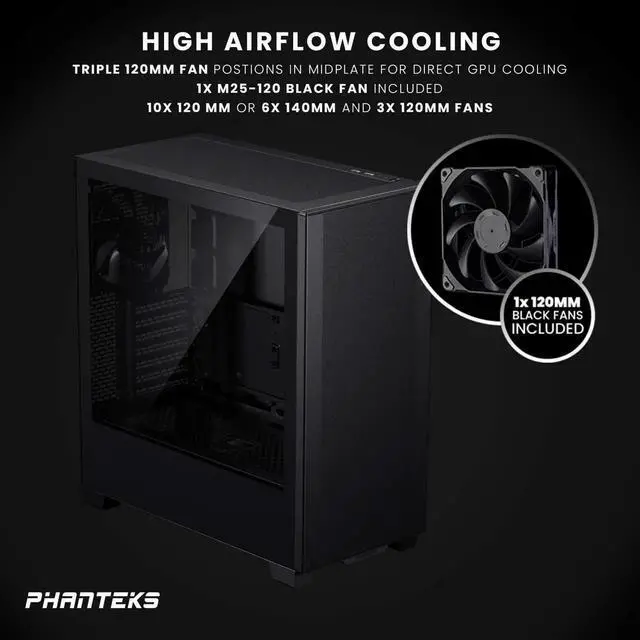

- Support up to 10x 120mm or 6x 140mm and 3x 120mm fan positions

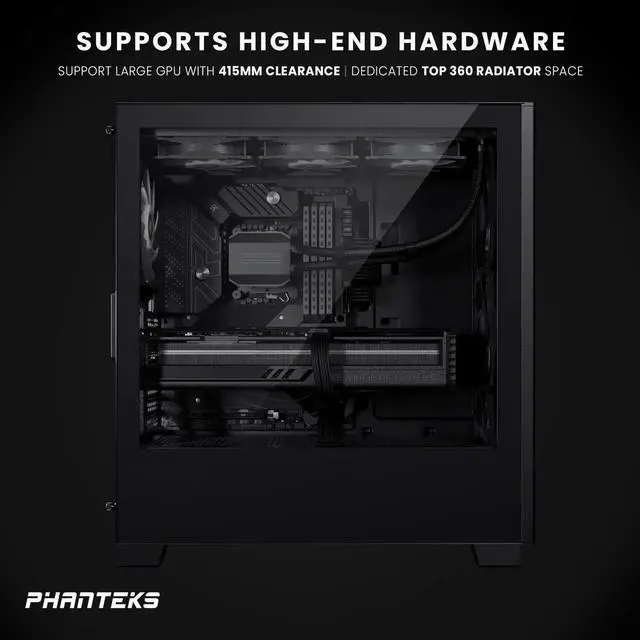

- Dedicated 360 radiator support in the top without restrictions
- Support for the largest graphics cards without compromise
+
+
Overview
Specs
Reviews
Model
| Brand | Phanteks |
| Series | XT |
| Model | PH-XT523P1_BK01 |
Details
| Type | Mid-Tower |
| Color | Black |
| Case Material | Steel Chassis, Tempered Glass Window, ABS plastic |
| Motherboard Compatibility | ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide) |
| Side Panel | Yes, Side Tempered Glass |
Expansion
| Internal 3.5" Drive Bays | 2x (1x if 2x SSD installed) | |
| Internal 2.5" Drive Bays | 2x (0x if 2x HDD installed) | |
| Expansion Slots | 7 | Also support Vertical GPU, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01 |
Front Panel Ports

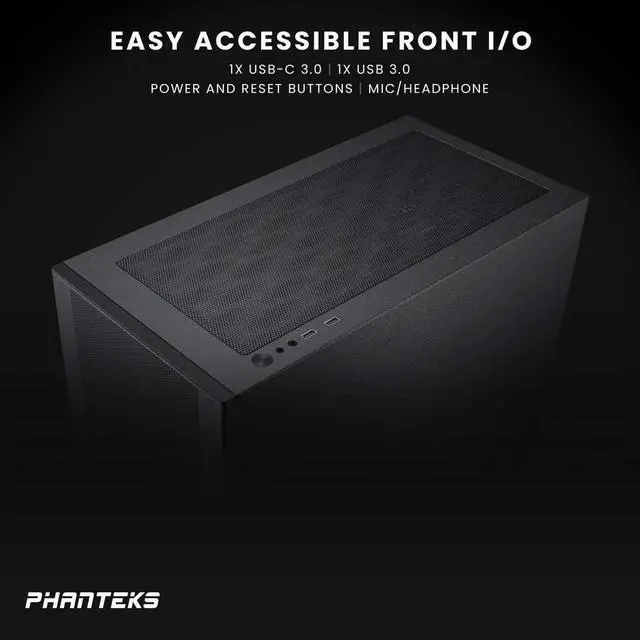

| Front Ports | 1 x USB 3.0, 1 x USB-C 3.0, 1 x Audio, 2 x Buttons, |
Cooling System
| Fan Options | Front: 3 x 120mm / 3 x 140mm | Top: 3 x 120mm / 2 x 140mm | Rear: 1 x 120mm / 1 x 140mm | Midplate: 3 x 120mm |
| Pre-installed Fans | Rear - 1 x 120mm | |||
| Radiator Options | Front: Up to 240 (120mm radiator) | Top: Up to 360 (120mm radiator) | Rear: Up to 120 (120mm radiator) |
Dimensions & Weight
| Max GPU Length | 415 mm |
| Max CPU Cooler Height | 184 mm |
| Max PSU Length | 270 mm |
| Dimensions | 450 x 230 x 500 mm / 17.7 × 9.05 × 19.68 in |
| Weight | 16.64lbs |
Additional Info
| Package Content | XT Pro Chassis | 1 x Storage Bracket | 1 x M25-120_BK Fan | Accessory Box: | 30 x Zip ties | 30 x MB/SSD Screw | 4 x Thumb Screw | 8 x HDD Screw | 1 x Standoff Tool | 1 x MB stand-off | 4 x PSU Screw | 12 x 30mm Fan Screw |
Additional Information
| First Listed on Newegg | February 19, 2024 |
