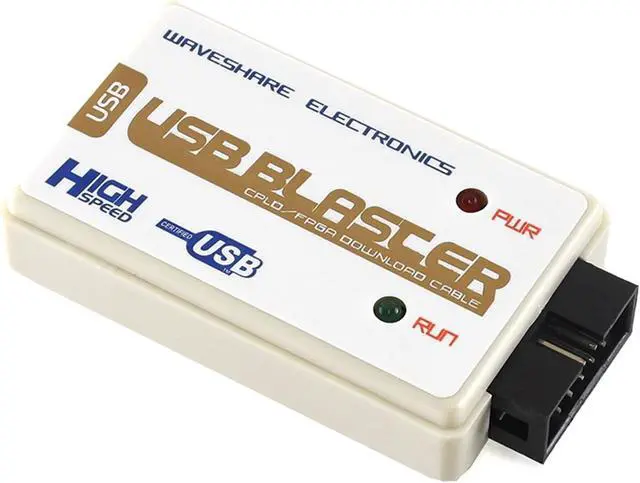

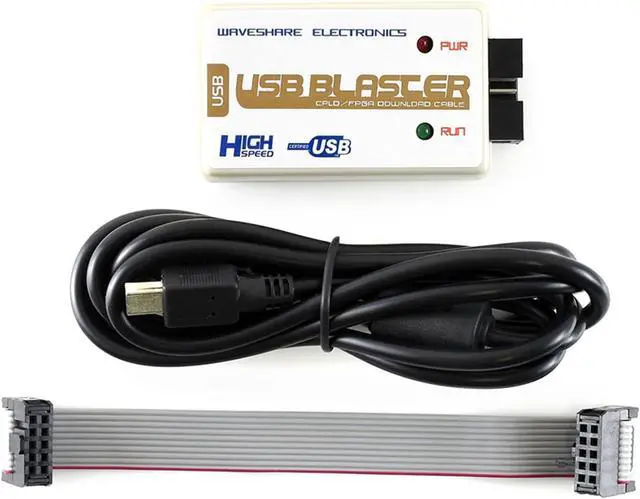

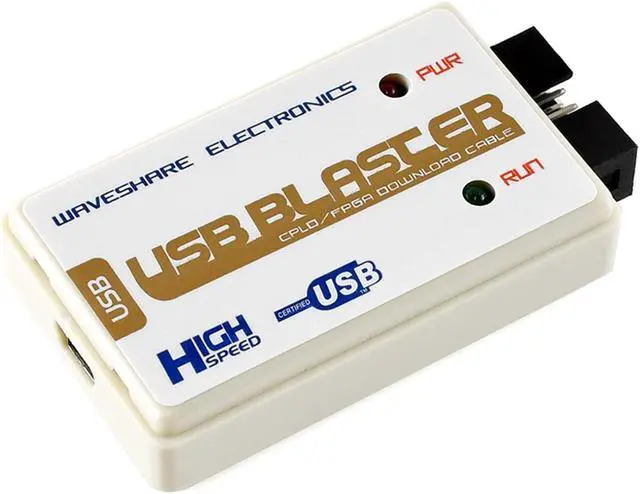

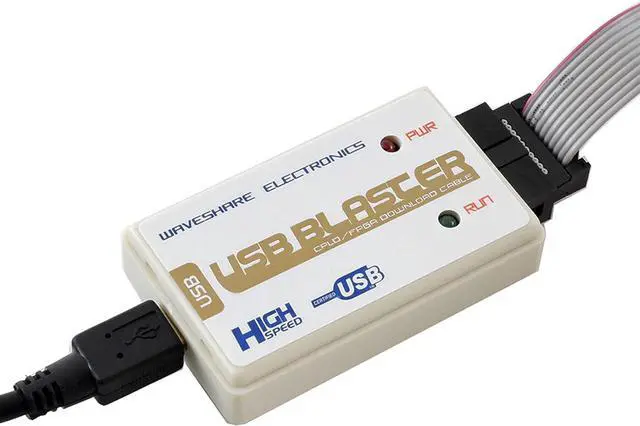

waveshare USB Blaster V2 Download Cable Programmer Debuggers, High-Speed FT245+CPLD+244 Solution, Support ALTERA FPGA/CPLD Devices, AS, PS, JTAG Three Download Modes

USB Blaster V2 Download Cable, compatible with ALTERA USB Blaster FPGA/CPLD programmer. The USB Blaster Download Cable interfaces a USB port on a host computer to an Altera FPGA mounted on a printed circuit board.
The cable sends configuration data from the PC to a standard 10-pin header connected to the FPGA. You can use the USB Blaster cable to iteratively download configuration data to a system during prototyping or to program data into the system during production.
It surpports most of the ALTERA FPGA/CPLD devices, Active Serial Configuration devices, Enhanced Configuration devices. It supports AS, PS, JTAG three download modes. Supports 1.2-5V programming voltage. Supports Nios II of embedded processor communication and debugging.
Hardware Solution--- 1) High speed FT245+CPLD+244 solution, similar download speed as the original ALTERA USB Blaster, with the same operation. 2) Download speed 1-3 times faster than other schemes, such as 68013 or C8051F.
Supported Devices,Tested devices are listed below, including but not limited to:--- CPLD: MAX3000, MAX7000A/B/S, MAX9000 and MAX II etc. FPGA: Stratix, Stratix II, Cyclone, Cyclone II, CycloneIII, ACEX 1K, APEX 20K and FLEX 10K etc. Active Serial Configuration Devices including: EPCS1, EPCS4, EPCS16 etc. Enhanced Configuration Devices including: EPC1, EPC4 etc.
