7 Inch Touchscreen Monitor for Raspberry Pi 5 4 B 3 B+ A+, 800x480 Pixel TN Display, 5-Point Touch Capacitive Screen, Driver-Free MIPI DSI Port
- Specifically for Raspberry Pi: Only need the connection to the display port (marked CAM/DISP on Raspberry Pi 5, DISPLAY on 4 and previous)
- Compatible Models: Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+ (No HDMI, not compatible with any other device)
- Compatible Systems: Raspberry Pi OS (multi-touch available) / Ubuntu (single touch only)
- Screen Parameters: 7 inch, 800x480 pixel, TN type, 5-point touch capacitive screen
- Easy to Use: No configuration is required (for new and configuration-unchanged systems)
+
+
Overview
Specs
Reviews
Important Notes:
This kit does NOT include Raspberry Pi and its accessories.
This display has no HDMI port and is only compatible with certain models of Raspberry Pi.
Overview:

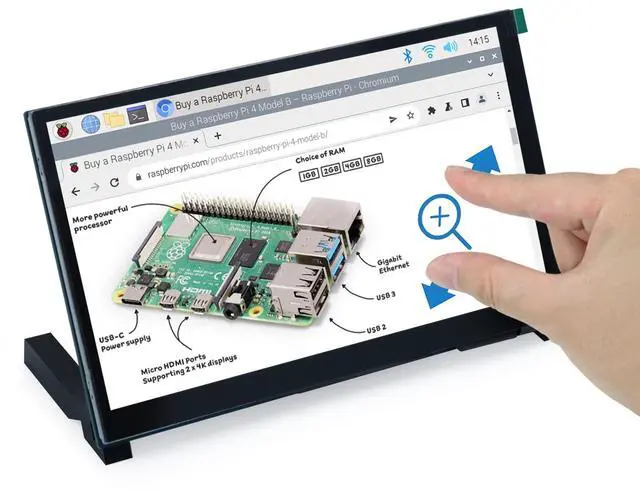

This is a 7 inch TN monitor with 5-point touch capacitive screen for Raspberry Pi.

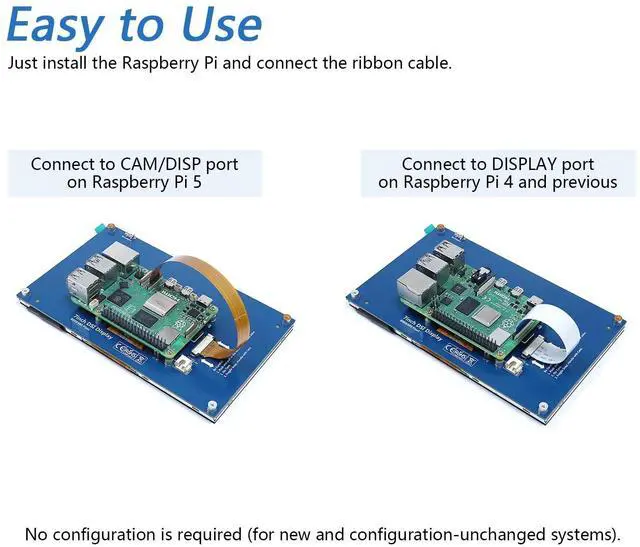

Only need the connection to the display port (marked CAM/DISP on Raspberry Pi 5, DISPLAY on 4 and previous).
We provide free technical support to help you with any questions and problems.

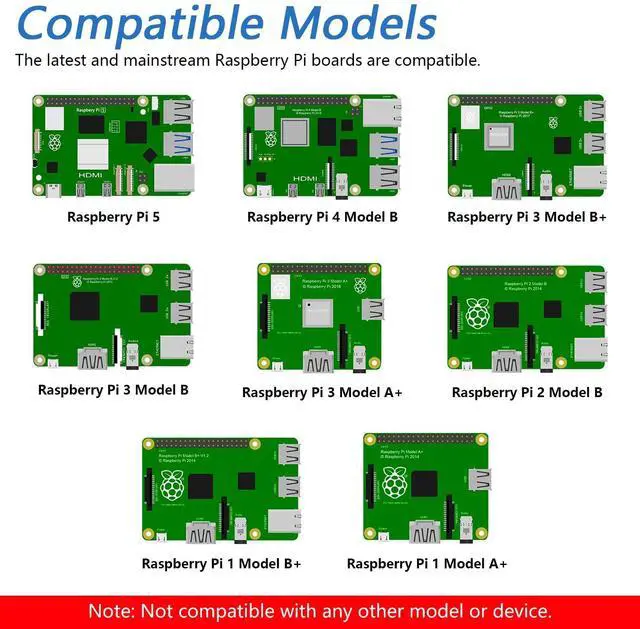

Compatible Models:
* Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+
(Note: No HDMI, not compatible with any other device.)

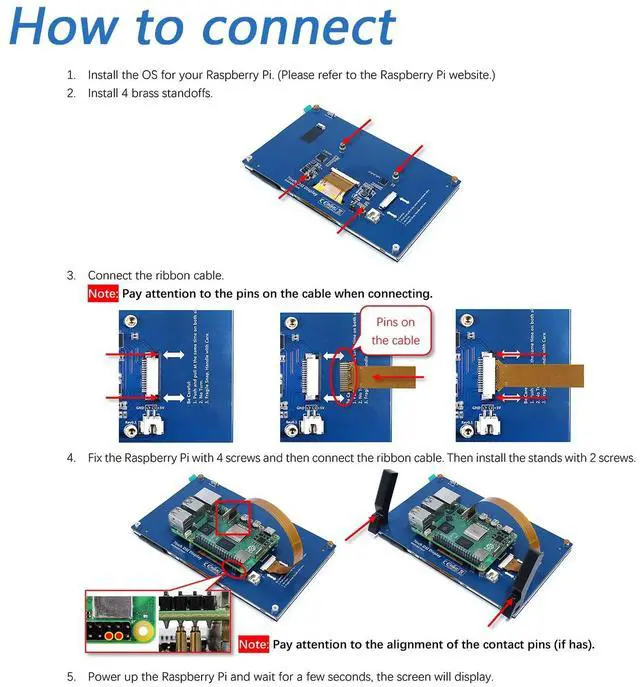

Tutorial:
Comes with tutorial to show how to use. (Downloadable and paper tutorial.)
The download link can be found on the product box.
Screen Parameters:
Size: 7 inch
Resolution: 800 x 480 pixel
Refresh rate: 60 Hz
Screen type: TN
Touch type: 5-point touch capacitive
Interface: MIPI DSI

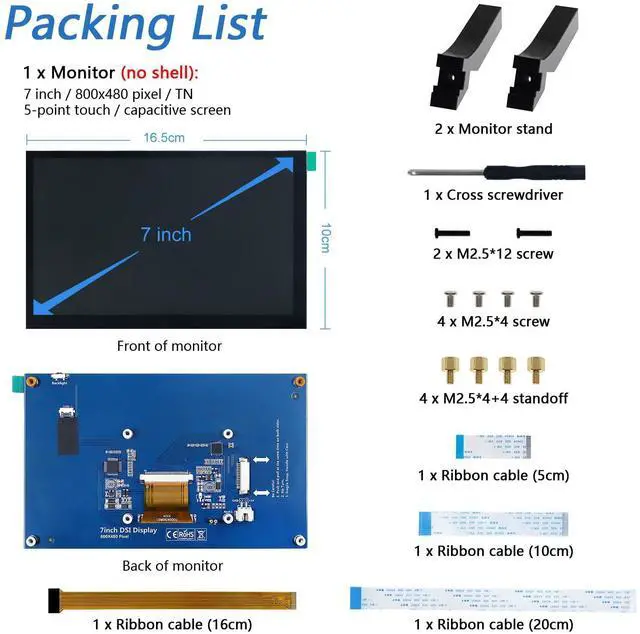

Package Includes:
1 x Touchscreen monitor
1 x Ribbon cable (5cm)
1 x Ribbon cable (10cm)
1 x Ribbon cable (20cm)
1 x Ribbon cable (16cm) for 5
1 x Cross screwdriver
4 x M2.5*4+4 standoff
4 x M2.5*4 screw
2 x M2.5*12 screw
2 x Monitor stand
Product information
| Brand | FREENOVE |
| Screen Size | 7 Inches |
| Resolution | 800 x 480 pixel |
| Aspect Ratio | 4:3 |
| Screen Surface Description | Glossy |
| Standing screen display size | 7 Inches |
| Screen Resolution | 800 x 480 |
| Max Screen Resolution | 800x480 Pixels |
| Series | FNK0078 |
| Item model number | FNK0078 |
| Operating System | Embedded |
| Item Weight | 12.3 ounces |
| Product Dimensions | 5.98 x 5.51 x 1.5 inches |
| Item Dimensions LxWxH | 5.98 x 5.51 x 1.5 inches |
| Color | 7 inch TN touchscreen |
| Processor Brand | Freenove |
| Computer Memory Type | SRAM |
| Voltage | 5 Volts |
| Manufacturer | Freenove |
| Date First Available | December 10, 2022 |
