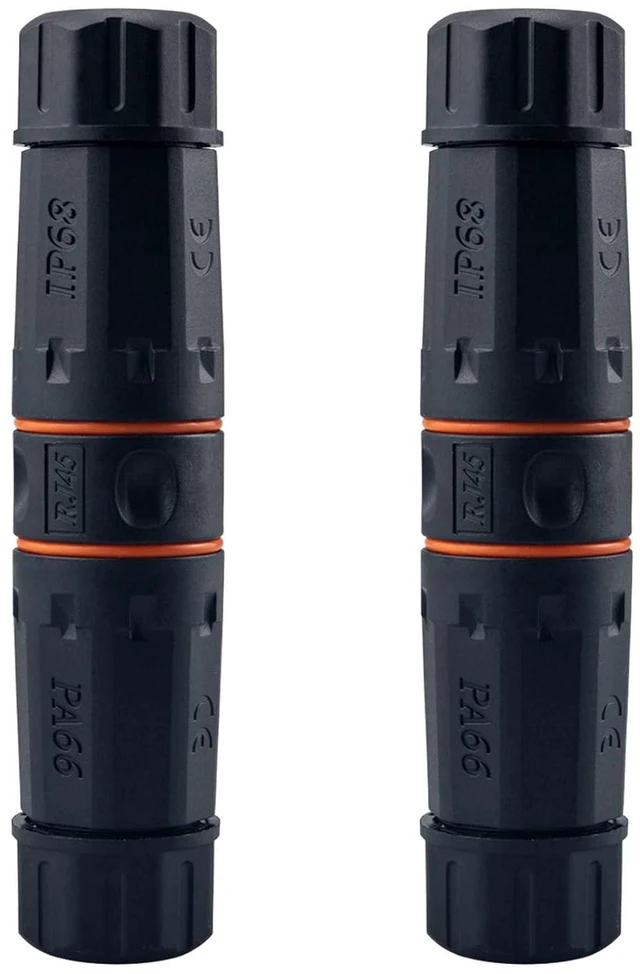

Waterproof Shielded RJ45 Coupler IP68,CAT6A/CAT6/CAT5E/CAT5 Female to Female Coupler Connector Shielded for Outdoor Ethernet LAN Cable-2 Pack

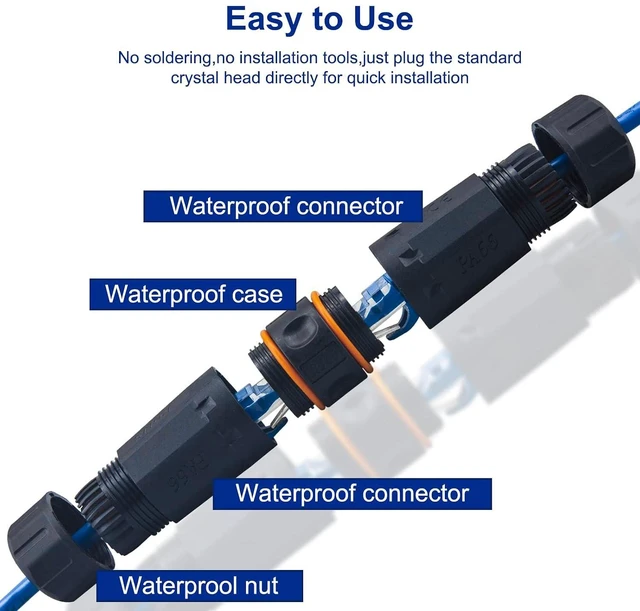

- Easy Installation RJ45 Waterproof Field Installable Coupler female to female, no soldering, no installation tools,Just plug the standard modular plug directly for quick installation without tools.

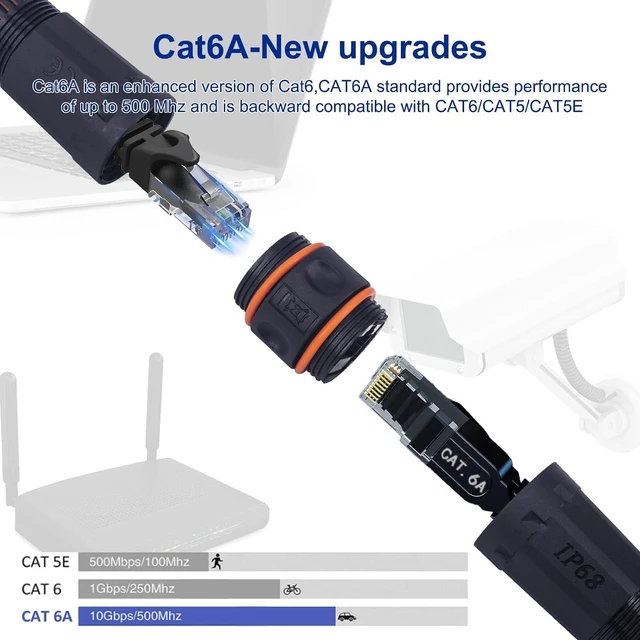

- New upgrades-CAT6ACat6A is an enhanced version of Cat6,CAT6A standard provides performance of up to 500 Mhz and is backward compatible with CAT6/CAT5/CAT5E. Although Cat6A offer the same 10 Gb Ethernet speeds per second as Cat6, Cat6A can maintain this speed over longer distances of up to 330 feet compared to the Cat6's 120-180 feet. Compared to Cat 5e and Cat6 cables, Cat6A offer less crosstalk, less signal loss, and a greater 500 MHz frequency bandwidth twice as much as Cat6.
- IP68 Waterproof & Dust-proofLonlonty Cat6A network coupler is waterproof, dust-proof and anti-jamming, which can be used in harsh industrial or outdoor environments to protect the cable head well, preventing the environment from interfering with the network cable that guarantees the Internet speed.The IP68-r
+
+
Overview
Specs
Reviews
The female to female RJ45 Ethernet Lan cable coupler is used to turn the standard CAT6A/CAT6/CAT5E/CAT5 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.
Specifications:
Color: Black
CNBTR Material: Plastic + Metal
INGRESS PROTECTION: IP68
Connect Port: RJ45
Cable Core: 8
Pins:8P8C
Working Temperature: -40°C-105°C

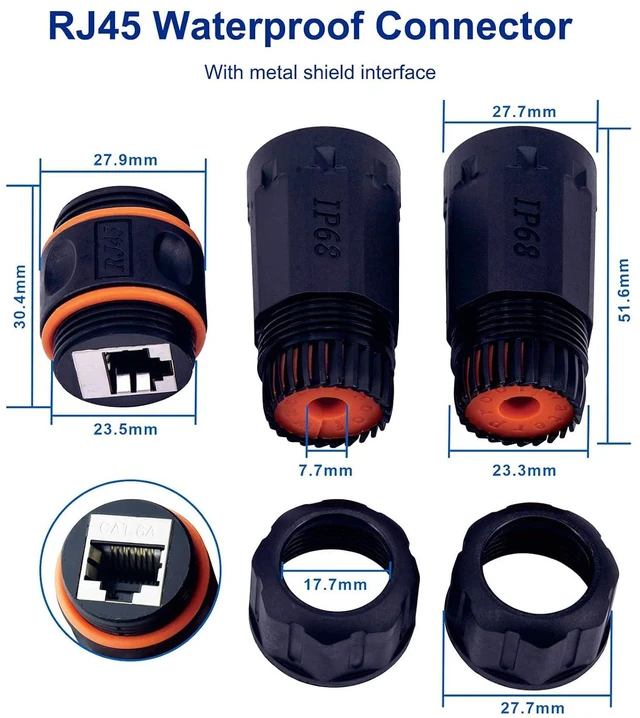

Total Length: approx. 88mm/3.46inch
Middle Connector: approx. 37 x 28mm/1.46 x 1.10inch
Double Head(with cap): 41 x 28mm/1.61 x 1.10inch
ATTENTION:
This product is only suitable for crimping crystal heads. Can't have locking clip cover.
Package Included:
Waterproof RJ45 Connector*2PCS
Specifications:
Color: Black
CNBTR Material: Plastic + Metal
INGRESS PROTECTION: IP68
Connect Port: RJ45
Cable Core: 8
Pins:8P8C
Working Temperature: -40°C-105°C
Total Length: approx. 88mm/3.46inch
Middle Connector: approx. 37 x 28mm/1.46 x 1.10inch
Double Head(with cap): 41 x 28mm/1.61 x 1.10inch
ATTENTION:
This product is only suitable for crimping crystal heads. Can't have locking clip cover.
Package Included:
Waterproof RJ45 Connector*2PCS
