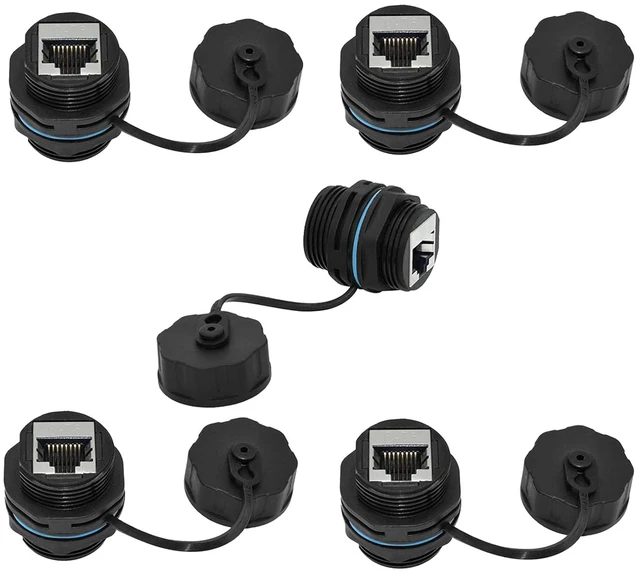

PENGLIN 5PCS IP68 Waterproof Shielded RJ45 Panel Mount Bulkhead Connector
- RJ45 CAT6 Connectors Provides feed-through CAT6 Ethernet connectivity for data and PoE in industrial environments.
- IP68 WATERPROOFThe panel mount RJ45 connector has a waterproof cover,rubber ring provides superior water resistance and sealing.
- HIGH QUALITYNylon PA66 shell, highly flame retardant. Gold-plated interface, anti-oxidation, more durable.
- EASY INSTALLTION:The Shielded Industrial Panel Mount is a Female/Female Coupler, plug and play, threaded connecting design, no soldering and no need to damage or interrupt the original wire, no signal degradation.
- MULTI-APPLICATION Waterproof RJ45 connectors can be used in environments where wall penetration is required and are ensured to be waterproof, it is very much ideal for printers, PCs, routers, computer servers, switch boxes, network media players, Gaming, POE device.
+
+
Overview
Specs
Reviews
waterproof rj45 connector rj45 waterproof coupler waterproof rj45 bulkhead shielded rj45 bulkhead waterproof coupler RJ45 waterproof Ethernet LAN cable coupler RJ45 CAT6 Connectors CAT6 RJ45 feed-thru coupler CAT6 Shielded Industrial Panel Mount The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps.
Technical Specifications:
Pins: 8P8C
Connection Type: RJ45
Transmission Category : CAT6
Transfer Sspeed : 10BASE-T100 BASE-T1000 BASE-T10000BASE-T
Rated Current: 1.5A
Rated Voltage : 125VAC, 75VDC
Insulation Resistance: greater than 500M
Withstand Voltage(AC.V)1min: 1000V
Shell Material: nylon PA66
Socket Contact Pin Material: phosphor copper C5210
Contact Pin Plating: 6FU gold
Waterproof Rubber Ring: silicone
Working Temperature : -40~120
Relative Humidity: less than 90%
Flame Retardant Rating: UL94V-0
Durability: more than 500 mating&unmating cycles
Package included
5pcs RJ45 CAT6 Connectors
Technical Specifications:
Pins: 8P8C
Connection Type: RJ45
Transmission Category : CAT6
Transfer Sspeed : 10BASE-T100 BASE-T1000 BASE-T10000BASE-T
Rated Current: 1.5A
Rated Voltage : 125VAC, 75VDC
Insulation Resistance: greater than 500M
Withstand Voltage(AC.V)1min: 1000V
Shell Material: nylon PA66
Socket Contact Pin Material: phosphor copper C5210
Contact Pin Plating: 6FU gold
Waterproof Rubber Ring: silicone
Working Temperature : -40~120
Relative Humidity: less than 90%
Flame Retardant Rating: UL94V-0
Durability: more than 500 mating&unmating cycles
Package included
5pcs RJ45 CAT6 Connectors
