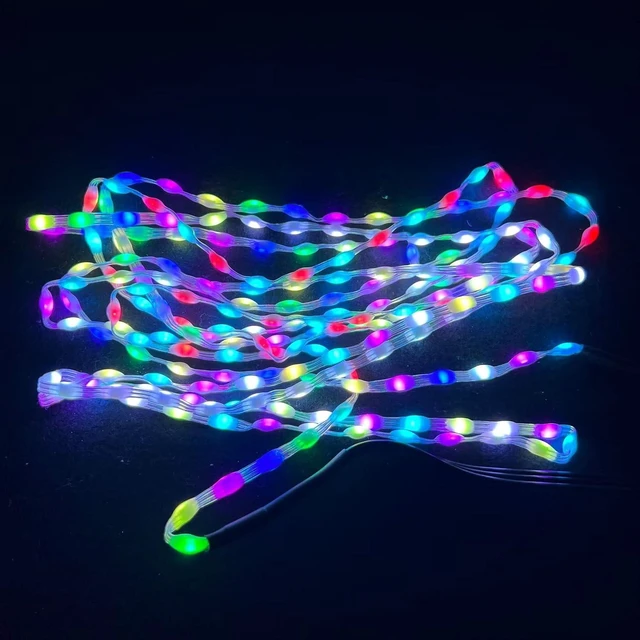

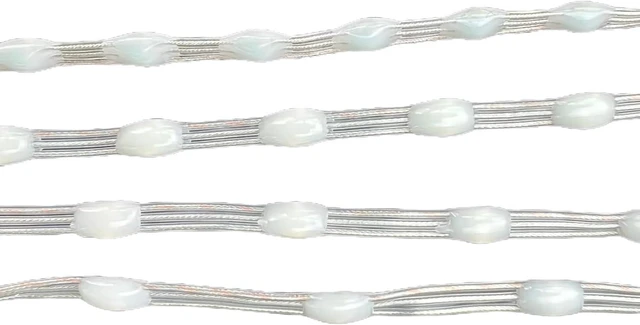

DC5V 200ct 15/20/25/30mm Pitch WS2811 LED Pebble Pixel String Light RGB addressable Full Color IP67 Transparent Wire 13.5mm(25mm Pitch 5M,XConnect Pigtails)
- LED quantity: one LED is one pixel (addressable); total 1000ct/string
- Line length: 1.5m line spacing; so 200 pixels/string is 3m long
- 2.0cm line spacing; so 200 pixels/string is 4m long
- 2.5cm line spacing; so 200 pixels/string is 5m long
- 3.0 cm line spacing; so 200 pixels/string is 6m long
+
+
Overview
Specs
Reviews
Color: 200ct WS2811 5V
Wattage: Transparent Wire
Working input voltage: DC5V
Output power: 0.1 watts per unit
Power Consumption (W/m): 11.52 W/m
Luminous color: WS2811 RGB IC, addressable RGB full color
Color sequence: GRB (not RGB)

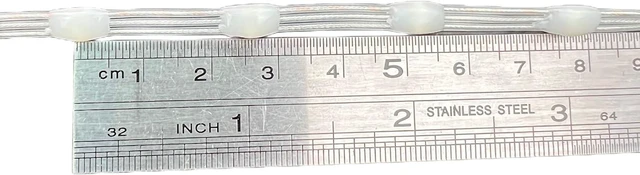

LED pitch: 15mm/20mm/25mm/30mm pitch
LED quantity: one LED is one pixel (addressable); total 1000ct/string
Power injection: It is recommended to boost every 100-150 LEDs
Wire color: 22AWG fully transparent 3-core wire (VCC+, data, ground)
Viewing angle: 360 degrees.
Long life: more than 50000 hours.
Working temperature: -20~50.
Waterproof grade: IP67 waterproof
Warranty: 2 years
Strip Type: SMD
Waterproof pigtail type: x connection/13.5mm series black waterproof male and female connectors at both ends
3 cores x connecting pigtails
3-core 13.5mm pigtail
Input: 0.2m long male connector with black flat wire
Output: 0.2m long female connector with black flat wire
Standard pinout diagram for pixel lights: For Pigtail: Brown: - 5/12v +
Yellow: data
Blue: ground
Input: Plug (screw end with bare pins)
Output: female connector (with hole)
Recommended controller:
APP Bluetooth and WIFI / SD card / Artent SPI etc.
Certification: CCC, CE, FCC, ROHS, UL
Origin: Mainland China
Wattage: Transparent Wire
Working input voltage: DC5V
Output power: 0.1 watts per unit
Power Consumption (W/m): 11.52 W/m
Luminous color: WS2811 RGB IC, addressable RGB full color
Color sequence: GRB (not RGB)
LED pitch: 15mm/20mm/25mm/30mm pitch
LED quantity: one LED is one pixel (addressable); total 1000ct/string
Power injection: It is recommended to boost every 100-150 LEDs
Wire color: 22AWG fully transparent 3-core wire (VCC+, data, ground)
Viewing angle: 360 degrees.
Long life: more than 50000 hours.
Working temperature: -20~50.
Waterproof grade: IP67 waterproof
Warranty: 2 years
Strip Type: SMD
Waterproof pigtail type: x connection/13.5mm series black waterproof male and female connectors at both ends
3 cores x connecting pigtails
3-core 13.5mm pigtail
Input: 0.2m long male connector with black flat wire
Output: 0.2m long female connector with black flat wire
Standard pinout diagram for pixel lights: For Pigtail: Brown: - 5/12v +
Yellow: data
Blue: ground
Input: Plug (screw end with bare pins)
Output: female connector (with hole)
Recommended controller:
APP Bluetooth and WIFI / SD card / Artent SPI etc.
Certification: CCC, CE, FCC, ROHS, UL
Origin: Mainland China
