External 36 Pins S-AS 4X SFF-8644 to SFF-8644 Cable(1M)

Product Description
M1ni S-AS 36P Straight to 36P Straight
Part Number: LRSAS 8644
Series: M1ni S-AS
Cable Length: 1.0/2.0/3.0 meters
Signal Wire Size: 28AWG, Tinned Copper, OD: 0. 9*2.3,MM
Plating: Au 3u' min over Ni 100u' min
Color: Over Black
Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Product Description: M1ni S-AS 36P Straight to 36P Straight
Series: M1ni S-AS
Cable Length:1.0/2.0/3.0 meters
Wire Size: 28AWG, Tinned copper,OD: 0.9*2.3mm
Lock to Mating Part: With Latch
Plating: Au(3u" min) over Ni(100u" min)
Color: Over Black
Compliance:
Flammability: Cable Horizontal flame,PCB 94V-0,PBT 94V-0
High-speed data storage interface up to 12Gbps (actual Data transfer speed is determined by the capabilities of the connected hardware)
SFF-8644 compliant with S-AS 3.0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Features and Benefits
1. Transmission rate 12 Gbps.
2. Meet SAS3.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. insert and extract at a speed of 25mm/minute.
Mating Force: 100 N maximum.
Unmating Force: 50 N maximum.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
30VAC per when mated or unmated.
3. Resistance
30mohm max. initial, 15mohm maximum after stress test.
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1.Mated Connector Impedance: 100 ±15%
2.Cable Absolute Impedance: 100 ±10%
Product Compliance
RoHS2.0:Compliant
ChinaRoHS:Yes
REACH SVHC:Yes
Low-Halogen Status:Not Reviewed

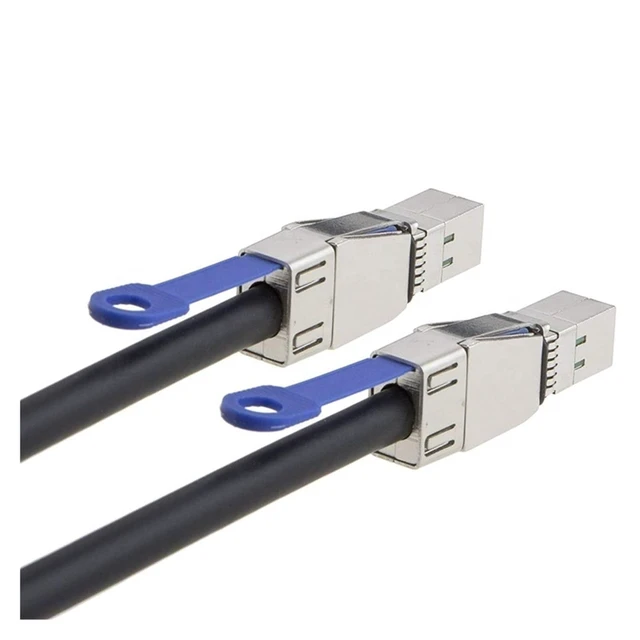

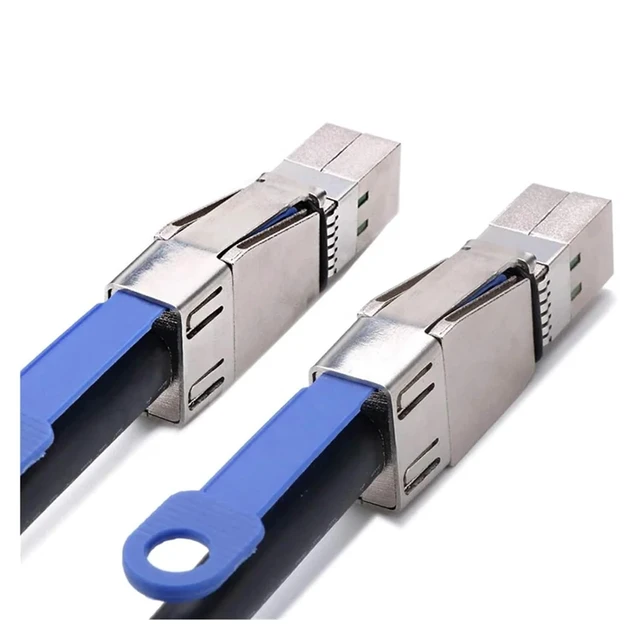

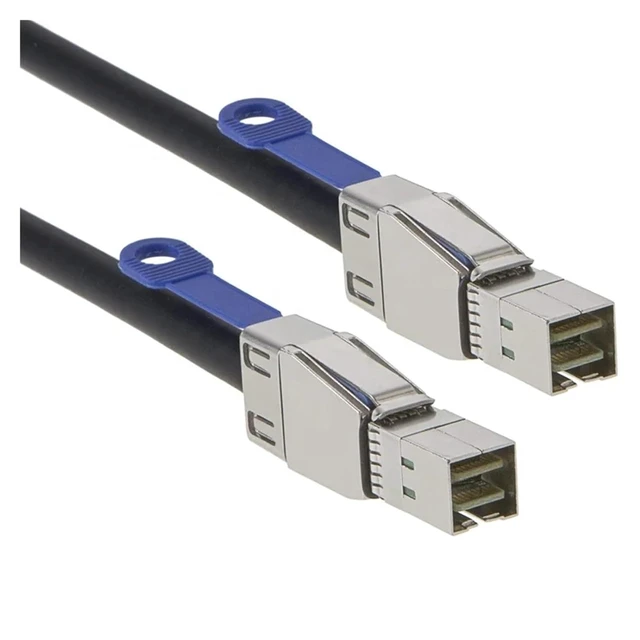

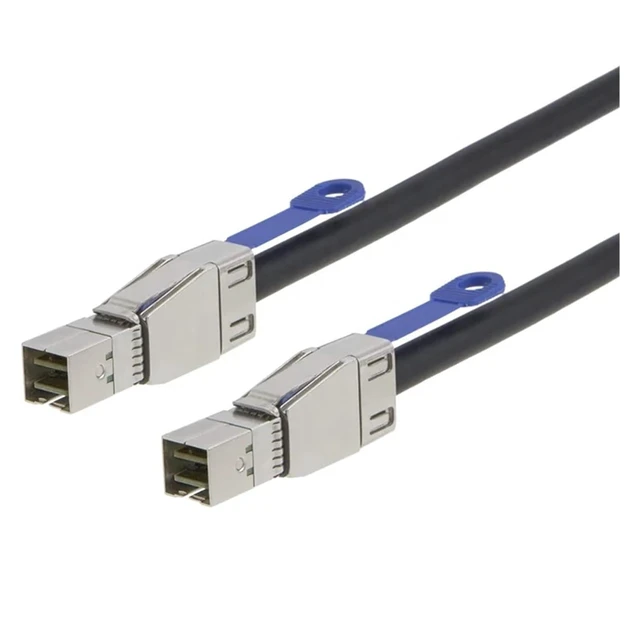

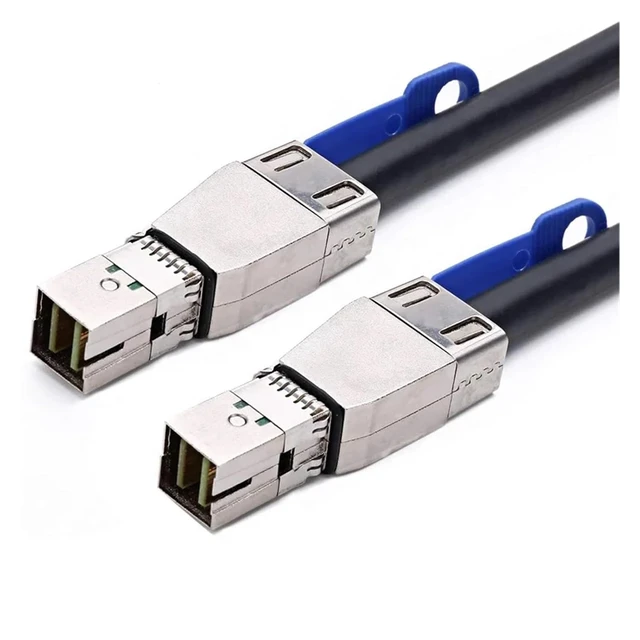

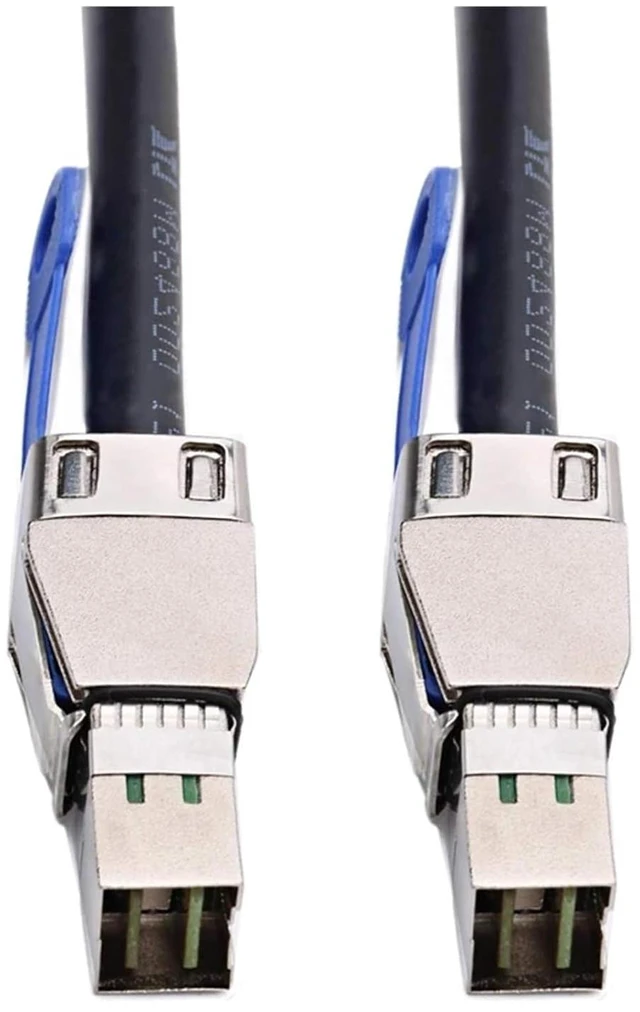

Product Photos
Product Drawing
