CAN Bus Adapter Board Kit with USB and CAN Ports 6 Layer PCB for 3D Printer Parts

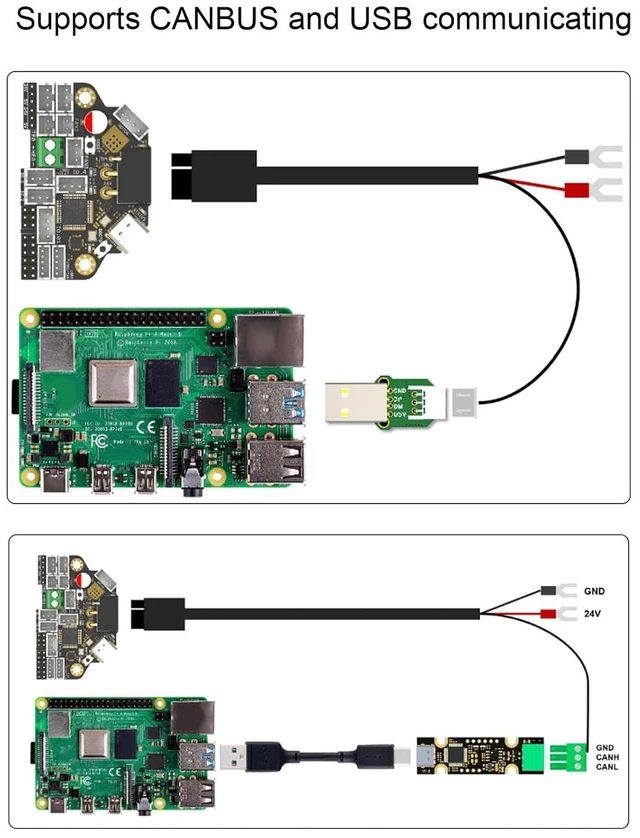

- Double Communicating Options: The can bus USB tool board offers versatile communicating capabilities with support for both CANBUS and USB protocols. Featuring a built in USB Hub with up to two USB ports (or one CAN port and one USB port), it allows for seamless connectivity with devices like IDM scanners, level sensors, and cameras, making it an essential tool for various applications.
- Robust And Efficient Design: Engineered with a 6 layer PCB, this hot end PCB adapter board kit utilizes solid state capacitors and tantalum capacitors for excellent thermal management and reliability. This advanced design not only enhances durability but also ensures better heat dissipation, enabling stable operating in demanding environments.
- Convenient IO Control: The can bus expansion module board kit includes on board IO control with a CAN, USB switch, making it easy to switch between communicating modes. Additionally, it features a RESET key and a BOOT0 key that simplify firmware updates, ensurin
+
+
Overview
Specs
Reviews
Spec:
Item Type: Printer CAN Bus Adapter Board Kit
Material: PCB

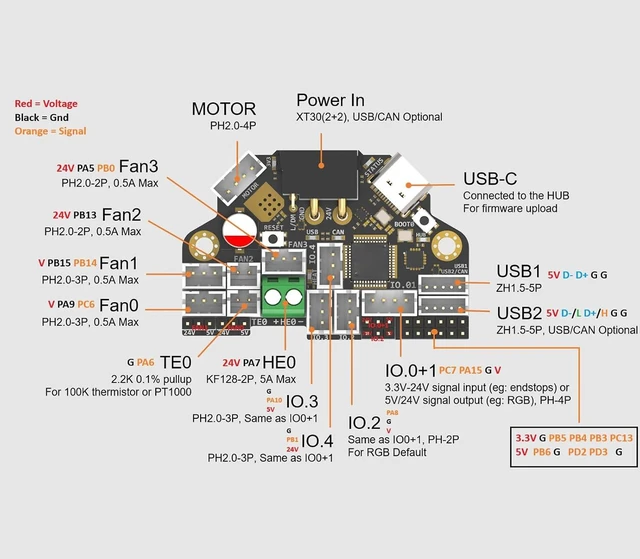

Function: H36ComboV1.3
Microcontroller: STM32G0B1T3
Accelerometer: ADXL345
USB Port: 2+1 (for MCU) powered by CH334P
CANBUS: 1+1 (for MCU)
Fan: 4 (1x2 pin, 3x3 pin)
Heating Outputs: 1
Temperature Measurement: 1 (PH2.0 Connector) + 1 (on board) Thermistor)
Motor Driver: TMC2209
Signal Inputs and Outputs: 5 (PH2.0) + 7 (Pin Header)
RGB Ribbon Control: Default 2, Maximum 5
Auxiliary Board Support: None
On Board Mounting Nut: None
How to Use:
Match the appropriate type of machine before use.

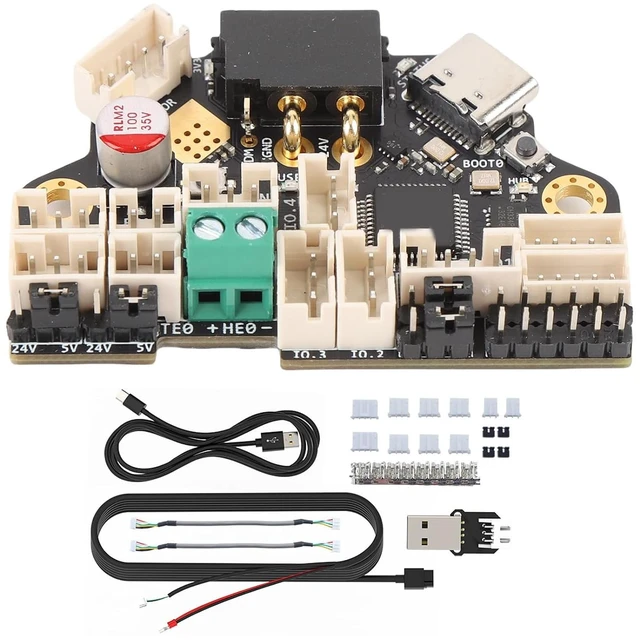

PackageList:
1 x Printer CAN Bus Adapter Board

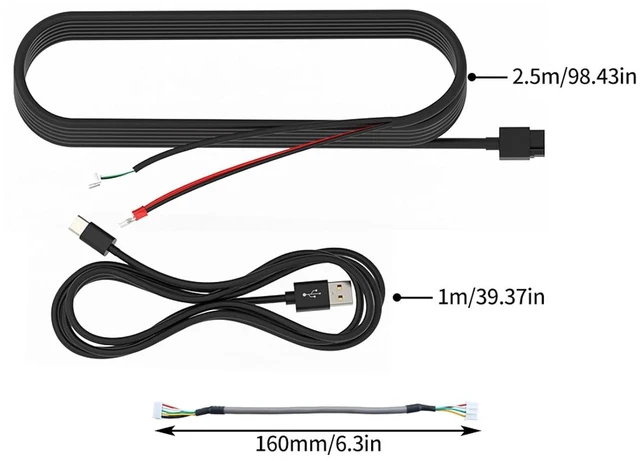

1 x USB C Cable 1m
1 x H36CAN USB CableV1 2.5m
2 x ZH1.5-PH2.0 Cable 14cm
14 x Connector Terminals
1 x Pin Header
Item Type: Printer CAN Bus Adapter Board Kit
Material: PCB
Function: H36ComboV1.3
Microcontroller: STM32G0B1T3
Accelerometer: ADXL345
USB Port: 2+1 (for MCU) powered by CH334P
CANBUS: 1+1 (for MCU)
Fan: 4 (1x2 pin, 3x3 pin)
Heating Outputs: 1
Temperature Measurement: 1 (PH2.0 Connector) + 1 (on board) Thermistor)
Motor Driver: TMC2209
Signal Inputs and Outputs: 5 (PH2.0) + 7 (Pin Header)
RGB Ribbon Control: Default 2, Maximum 5
Auxiliary Board Support: None
On Board Mounting Nut: None
How to Use:
Match the appropriate type of machine before use.
PackageList:
1 x Printer CAN Bus Adapter Board
1 x USB C Cable 1m
1 x H36CAN USB CableV1 2.5m
2 x ZH1.5-PH2.0 Cable 14cm
14 x Connector Terminals
1 x Pin Header
