IP67 Waterproof USB 3.0 Type-B Bulkhead Panel Mount Cable USB B Male to Female Extension Cable 5Gbps for Printer, PLC, HMI, CNC, Industrial Camera, Machine Vision (0.3M/0.98FT)

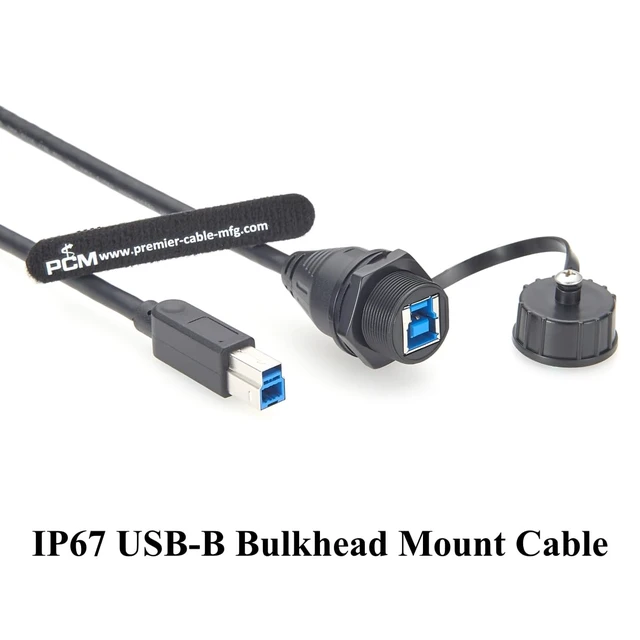

- Bulkhead Panel Mount The IP67 Waterproof USB 3.0 B Male to Female Extension Cable, Designed with a 21.5mm panel cutout and locking hex nut structure, this USB B female bulkhead connector allows secure installation on control cabinets, equipment enclosures, and industrial machines.
- SuperSpeed 5Gbps Data Transfer USB-B Bulkhead Feedthrough Panel Mount Cable, Supports USB 3.0 high-speed data transfer up to 5Gbps, Backward compatible with USB 2.0 and USB 1.1. Plug and play design enables easy and convenient use without additional drivers.
- IP67 Waterproof This USB 3.0 Type-B Passthrough panel mount cable features an IP67-rated waterproof bulkhead connector, with sealing gasket and protective cap, ensuring reliable protection against dust, moisture, and water ingress in harsh industrial environments.

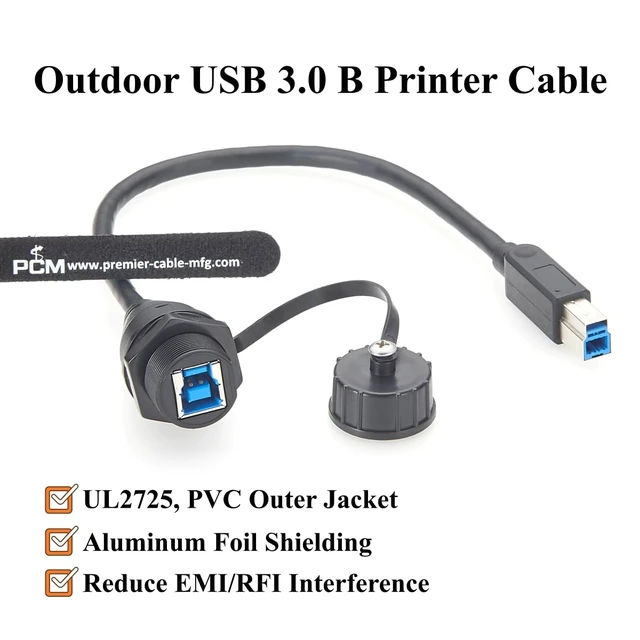

- High Quality & Durable USB 3.0 Type-B Bulkhead Extension Cable, Built with UL2725 industrial cable, featuring aluminum foil shielding to effectively reduce EMI/RFI interference.
+
+
Overview
Specs
Reviews
Specifications:
Product Name: IP67 Waterproof USB 3.0 Type-B Male to Female Extension Cable

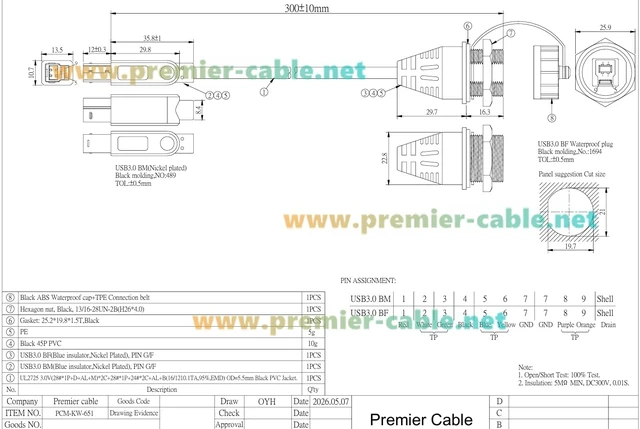

DWG No.: PCM-KW-651
Connector A: USB 3.0 Type-B Male
Connector B: USB 3.0 Type-B Female, Bulkhead Panel Mount

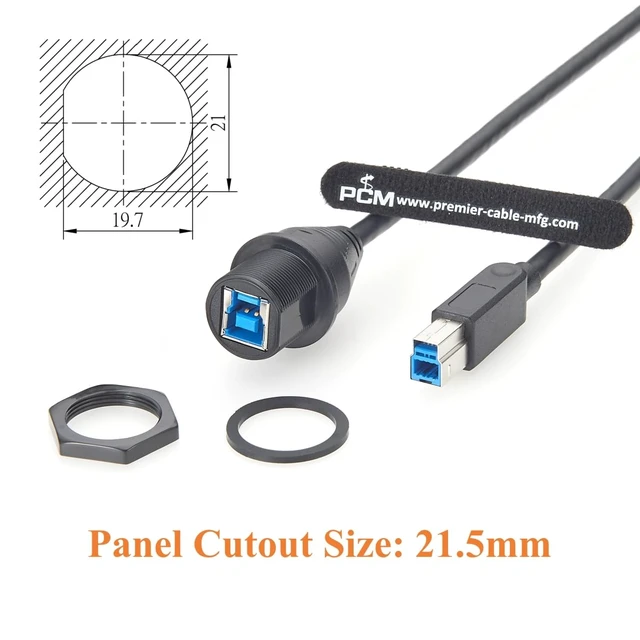

Panel Cutout Size: 21.5mm
Cable length: 0.3m/0.98FT
Waterproof Grade: IP67

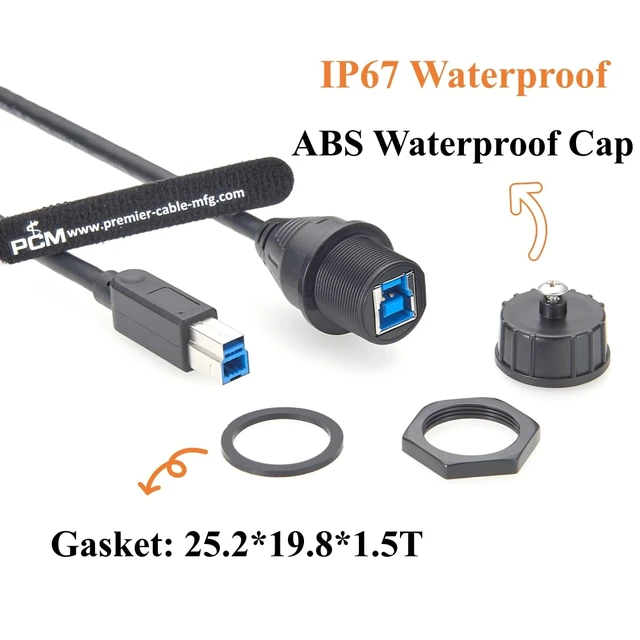

Gasket: 25.2*19.8*1.5T
Hexagon Nut, Black, 13/16-28UN-2B, M22(H26*4.0)

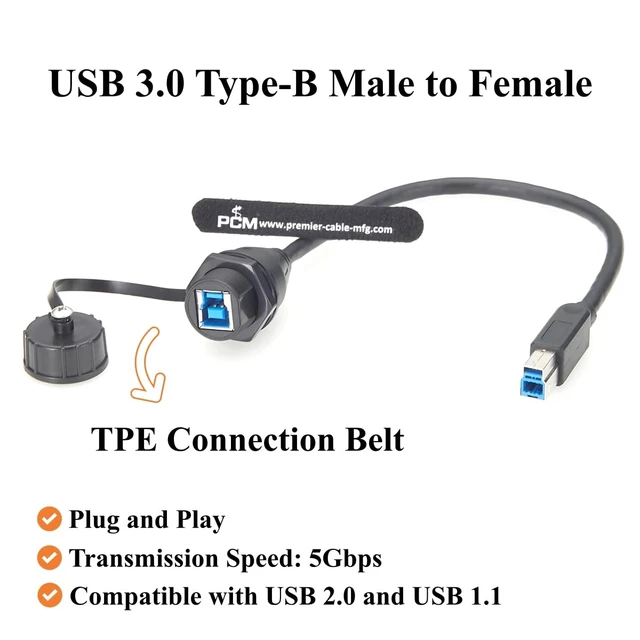

Material: Black ABS Waterproof Cap+TPE Connection Belt
Cable: UL2725 3.0V(28#*1P+D+AL+M)*2C+28#*1P+24#*2C+AL+B(16/1210.1TA,95%,EMD)
OD: 5.5MM, PVC Jacket
Contact: Nickel Plated
Transmission Speed: 5Gbps
