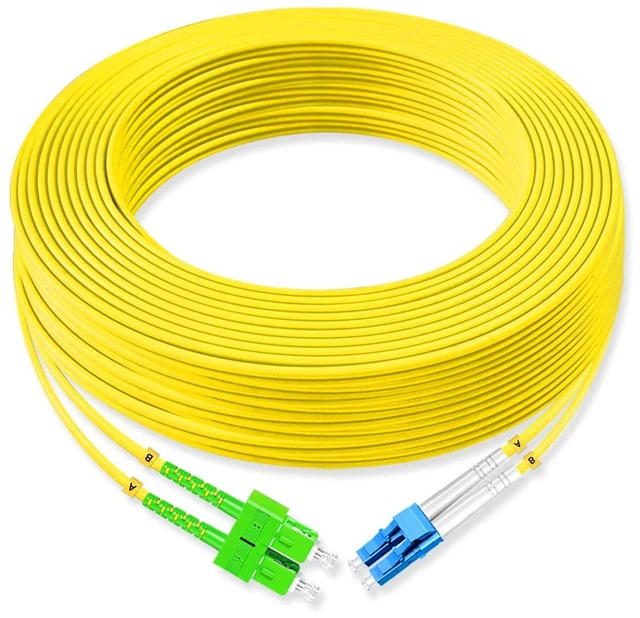

1Pcs 30 Meter Fiber Optic Patch Cord SC for APC to LC UPC, Duplex Single Mode Fiber Cable Jumper OS2 G652D 9/125m, 1310nm/1550nm LSZH 3.0mm

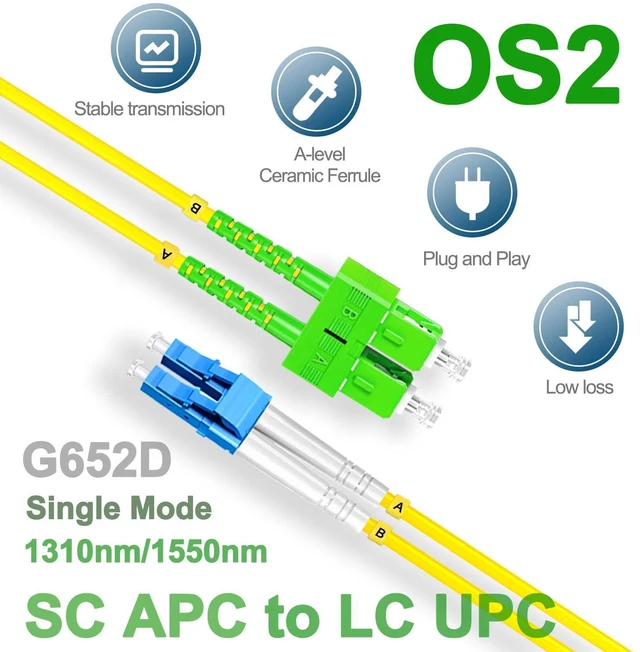

- Main Parameters1Pcs 30 Meter (3.28ft) SC APC to LC UPC Single Mode Duplex OS2 Fiber Optic Patch Cord9/125 m G652D fiber core, which supports 1310nm/1550nm wavelength
- High PerformanceThe fiber patch cord 0.2dB repeatability and interchangeability, 0.3dB insertion loss, and 50dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70°C.

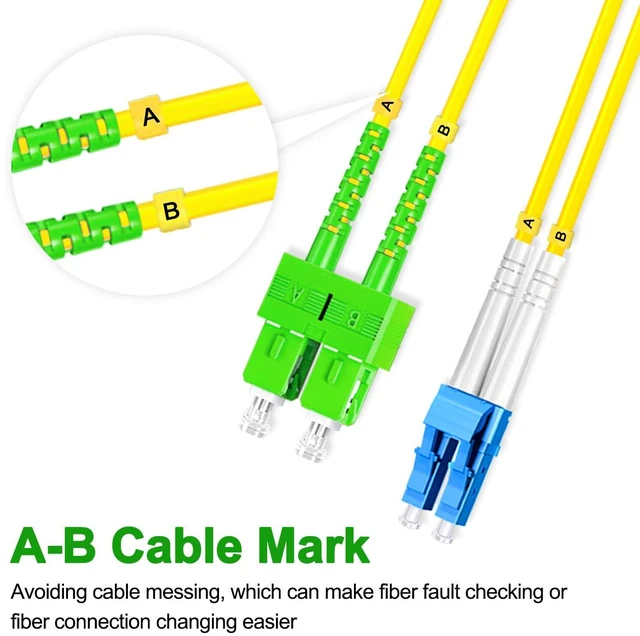

- A-B Cable Mark the duplex fiber patch cable comes with A-B cable mark for distinguishing the fiber connection, which can make fiber fault checking or fiber connection changing easier.
- 3.0mm&LSZH Fiber Jacket The Fiber Optic Patch Cord is buffered to the specified size of 0.9mm with LSZH material, and a para-aramid yarn is used as a strength member to wrap the 0.9mm buffer layer. The 3.0mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic ferrule, ensuring data transmission quality and prov
+
+
Overview
Specs
Reviews
Product Description
The main function of fiber optic patch cords is to serve as a key component connecting different devices to the fiber optic cabling system. It is designed with a thick protective layer, typically used for connecting optical transceivers and termination boxes. Fiber optic patch cords are widely used in various applications, including fiber optic communication systems, fiber optic access networks, fiber optic data transmission, local area networks (LAN), fiber optic cable television (CATV), fiber optic sensors, and many other fields.

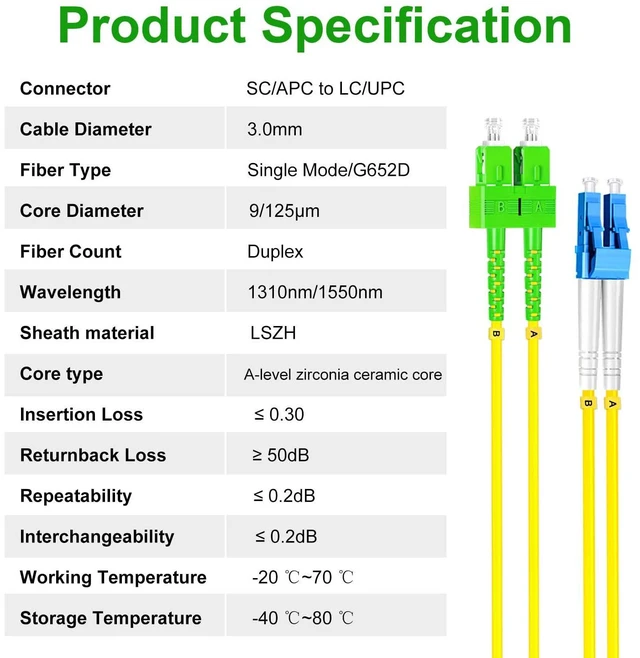

Product Details
ConnectorSC/APC to LC/UPC
Wire Diameter3.0mm
Fiber TypeSingle mode G652D
Fiber CountDuplex
Core Diameter9/125m
Wavelength1310nm/1550nm
Sheath materialLSZH
Core typeA-level zirconia ceramic core
Insertion Loss 0.30
Returnback Loss 50dB
Repeatability 0.2dB
Interchangeability 0.2dB
Working Temperature -20 ~70
Storage Temperature - 40 ~80
Cable Length30M
Packing Quantity1 PCS
The main function of fiber optic patch cords is to serve as a key component connecting different devices to the fiber optic cabling system. It is designed with a thick protective layer, typically used for connecting optical transceivers and termination boxes. Fiber optic patch cords are widely used in various applications, including fiber optic communication systems, fiber optic access networks, fiber optic data transmission, local area networks (LAN), fiber optic cable television (CATV), fiber optic sensors, and many other fields.
Product Details
ConnectorSC/APC to LC/UPC
Wire Diameter3.0mm
Fiber TypeSingle mode G652D
Fiber CountDuplex
Core Diameter9/125m
Wavelength1310nm/1550nm
Sheath materialLSZH
Core typeA-level zirconia ceramic core
Insertion Loss 0.30
Returnback Loss 50dB
Repeatability 0.2dB
Interchangeability 0.2dB
Working Temperature -20 ~70
Storage Temperature - 40 ~80
Cable Length30M
Packing Quantity1 PCS
