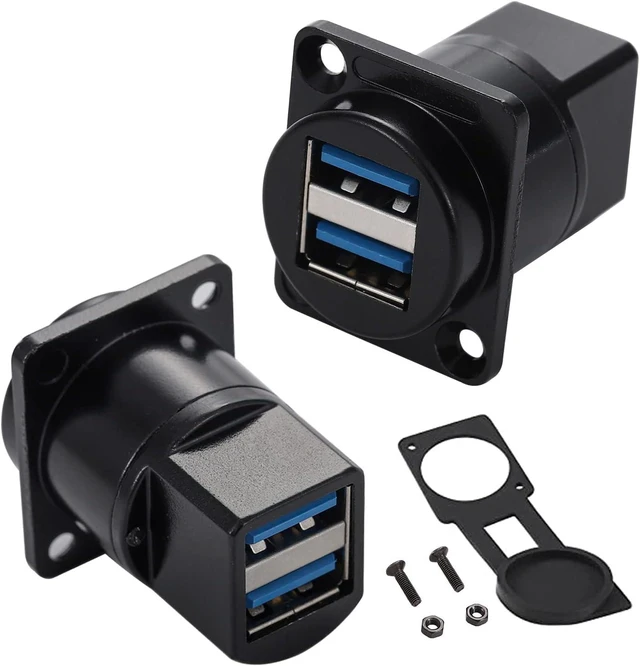

PENGLIN 2PCS Dual Ports USB 3.0 Panel Mount Connector,USB 3.0 Female to Female Coupler D-Type USB Bulkhead Adapter with Waterproof Cap
- USB 3.0 COUPLERThis two ports Dual USB 3.0 connector is a Female/Female Coupler,Compatible with USB 3.0/2.0, with water/dustproof cap,provide a more stable transmission environment for data in the electronic information environment.
- EASY INSTALLATIONStandard Connector for Panel-Mount Installations, dual-channel USB signal connection, and save installation space, USB female to female field installable coupler, no soldering, no installation tools, just plug the standard USB head directly for quick installation.
- High speedTransmission speed is up to 5.0Gbps,Plug and play and enjoy high-speed data transmission with this USB panel mount connector.independent channels work without affecting each other.
- WIDELY APPLICATIONConnects equipment with USB ports like a PC, Mac, desktop, laptop, notebook, media player, USB external hard drive, AV receiver or other equipment with USB ports with the cables concealed behind the wall via wall plates.
- DURABLE QUALITYZinc alloy material, scra
+
+
Overview
Specs
Reviews
Technical Specifications:
Waterproof rating: IP67 (with waterproof cover)
Connection type: USB3.0
Rated current: 0.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: Zinc diecast
Contact material: Bronze
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Installation panel thickness: min 2.0mm-max 10mm
Base shape: D type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 xDual Port USB3.0 Waterproof Connector
2 x waterproof cap
Waterproof rating: IP67 (with waterproof cover)
Connection type: USB3.0
Rated current: 0.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: Zinc diecast
Contact material: Bronze
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Installation panel thickness: min 2.0mm-max 10mm
Base shape: D type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 xDual Port USB3.0 Waterproof Connector
2 x waterproof cap
