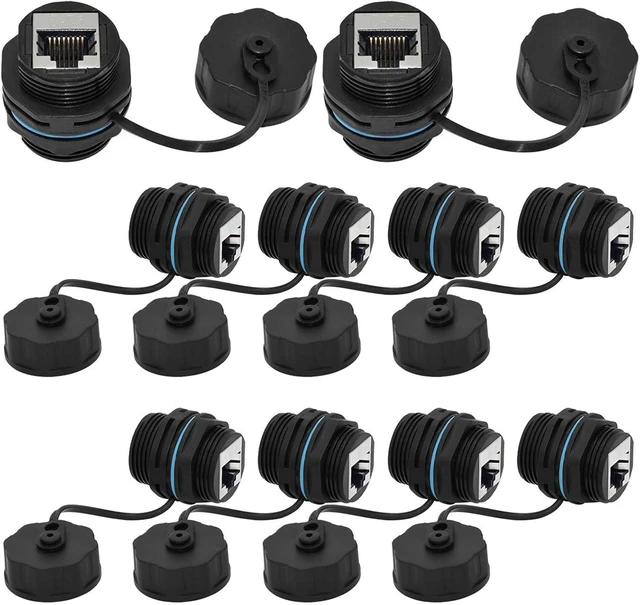

10PCS Panel Mounting Shielded CAT6 RJ45 Waterproof Connector

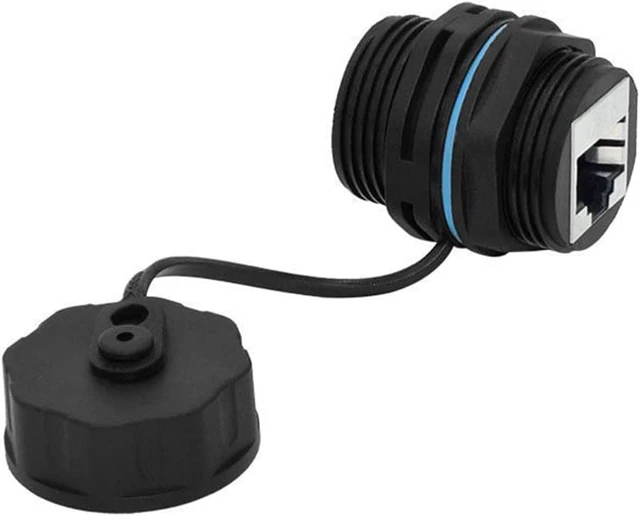

- Shielded RJ45 female to female field installable coupler. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
- NO ATTENUATION: The socket contacts are nickel-plated phosphor bronze alloy plugs, and the socket does not need to break or interrupt any connection, so there is no signal attenuation.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.

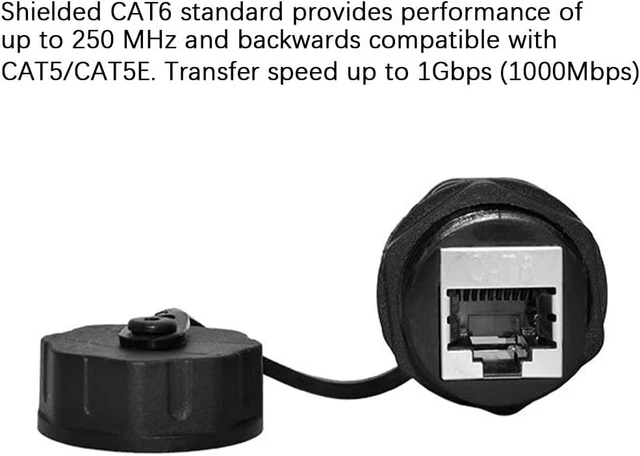

- CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 1Gbps (1000Mbps).
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory.
+
+
Overview
Specs
Reviews

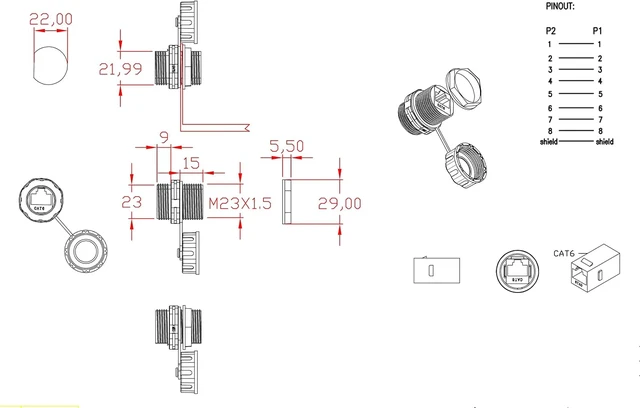

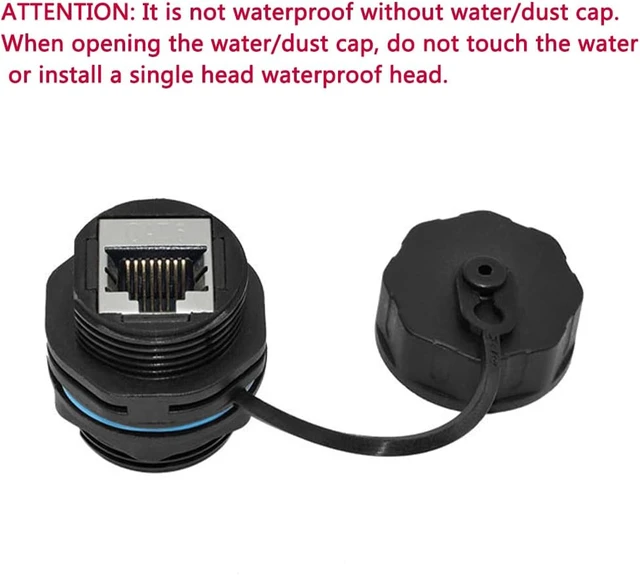

The Shielded Industrial Panel Mount is a Female/Female Couple. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Specifications: INGRESS PROTECTION: IP68With dust/waterproof cap Thread: M23 Color: Black, Blue Number of cores: 8 PIN Connection type: RJ45 Flame retardant rating: UL94V-0 Connection method: plug type + thread pressure lock Mounting panel thickness:0.5~7mm(not included) Connector transmission classification: CAT5, CAT5E, CAT6 Transmission speed range: 10BASE-T, 100 BASE-T, 1000 BASE-T and 10000 BASE-T network Electrical parameters: Rated current: 1.5A Rated voltage: 125VAC, 75VDC Insulation resistance: 500M Compressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance: 10M Material: Shell: nylon plus fiber (UL94V-0) Socket contact pin: 0.5mm diameter phosphor copper wire Contact pin gold plating thickness: 6u inch Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40120Celsius Storage temperature: -2585Celsius Atmospheric pressure: 86106kPa Relative humidity: 90% RH Package Included: 10x M23 Shielded Waterproof RJ45 Connector
