Club 3D Thunderbolt 4 40Gbps Portable 5-in-1 Hub DisplayPort 4K60Hz 8K30Hz USB Type-C USB Type-A 10Gbps Smart Power 60W (CSV-1580)

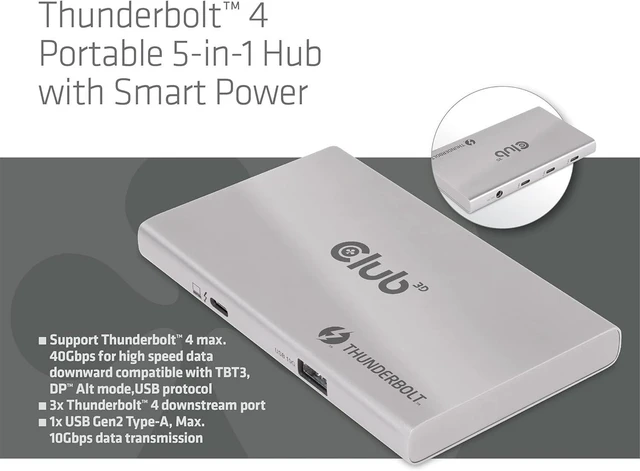

- The Club 3D CSV-1580 is a certified Thunderbolt 4 portable hub that offers the most advanced efficient and versatile I/O solution (up to 40Gb/s data and video)

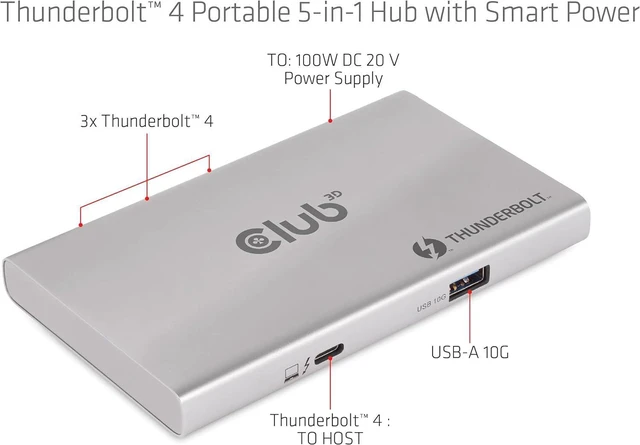

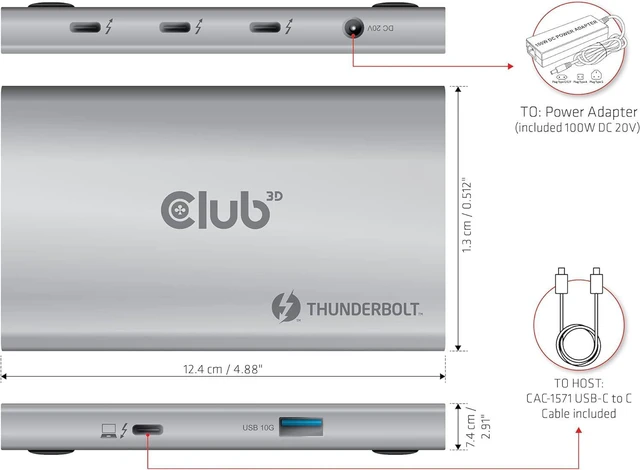

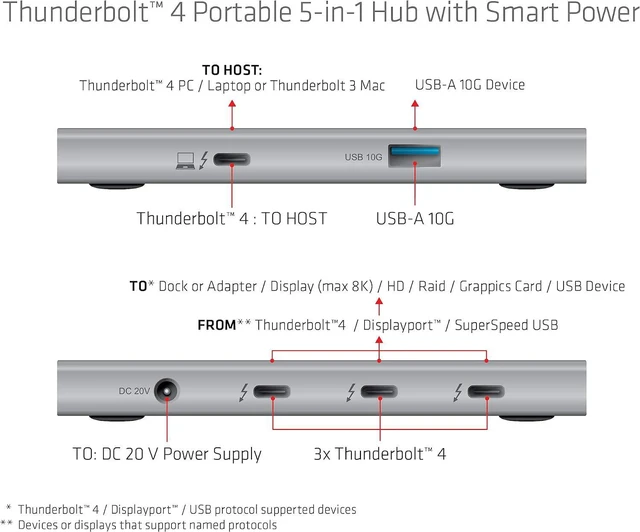

- Upstream has one Thunderbolt 4 receptacle on the host connection, downstream has three Thunderbolt 4 receptacles, and one USB Gen2 Type-A. Hub measures 4.9 x 2.9 x 0.5 inches Power adapter is 6.1 x 2.2 x 1.3 inches (15.5 x 5.7 x 3.4 cm). The power cable is 1.8m. The included CAC-1571 USB 4 cable is 0.8m
- One upstream Thunderbolt 4 receptacle supports fast data transfer up to 40Gbps, support up to 60W host charge 5V/9V/15V/20V@3A. Three downstream's Thunderbolt 4 receptacles support high speed data transfer up to 40Gbps, single player video 8K30Hz/dual display video 4K/60Hz, and USB Gen2 data transfer up to 10Gbps. (Does not support PD) One USB Gen2 Type A supports data transfer up to 10Gbps, backwards compatible to the previous version, and up to 900mA downstream charging
- Provides up to 60W for host, 85W max for host and host
+
+
Overview
Specs
Reviews
The Club 3D CSV-1580 is a certified Thunderbolt 4 portable hub that offers the most advanced efficient and versatile I/O solution (up to 40Gb/s data and video)
Upstream has one Thunderbolt 4 receptacle on the host connection, downstream has three Thunderbolt 4 receptacles, and one USB Gen2 Type-A. Hub measures 4.9 x 2.9 x 0.5 inches Power adapter is 6.1 x 2.2 x 1.3 inches (15.5 x 5.7 x 3.4 cm). The power cable is 1.8m. The included CAC-1571 USB 4 cable is 0.8m

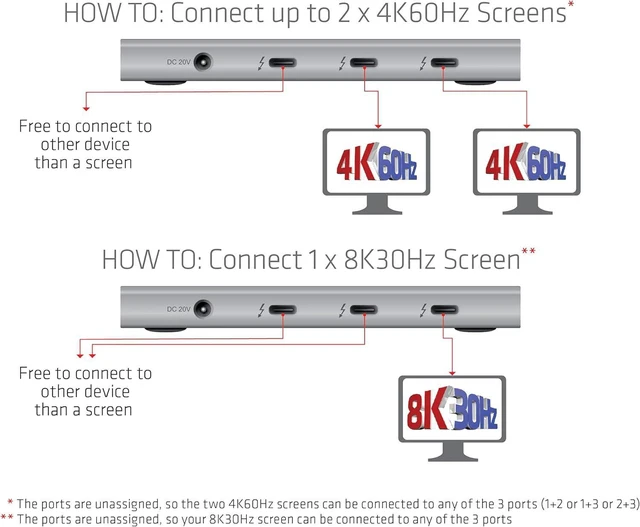

One upstream Thunderbolt 4 receptacle supports fast data transfer up to 40Gbps, support up to 60W host charge 5V/9V/15V/20V@3A. Three downstream's Thunderbolt 4 receptacles support high speed data transfer up to 40Gbps, single player video 8K30Hz/dual display video 4K/60Hz, and USB Gen2 data transfer up to 10Gbps. (Does not support PD) One USB Gen2 Type A supports data transfer up to 10Gbps, backwards compatible to the previous version, and up to 900mA downstream charging
Provides up to 60W for host, 85W max for host and host. Smart power allows you to flexibly distribute power to your PC and hub in real-time depending on the power consumption of connected devices, maximizing the power supplied by an external DC power adapter
Compatible OS support Thunderbolt 4 hosts, Windows 10 or later and MacOS 11 or above supporting Thunderbolt 3 hosts. Conforms to ROHS (Limitation of Hazardous Substances), FCC and CE mark EMI requirements (electromagnetic interference to human body and other devices). "Domestic Official Warranty" Warranty is 1 year from the date of purchase
Upstream has one Thunderbolt 4 receptacle on the host connection, downstream has three Thunderbolt 4 receptacles, and one USB Gen2 Type-A. Hub measures 4.9 x 2.9 x 0.5 inches Power adapter is 6.1 x 2.2 x 1.3 inches (15.5 x 5.7 x 3.4 cm). The power cable is 1.8m. The included CAC-1571 USB 4 cable is 0.8m
One upstream Thunderbolt 4 receptacle supports fast data transfer up to 40Gbps, support up to 60W host charge 5V/9V/15V/20V@3A. Three downstream's Thunderbolt 4 receptacles support high speed data transfer up to 40Gbps, single player video 8K30Hz/dual display video 4K/60Hz, and USB Gen2 data transfer up to 10Gbps. (Does not support PD) One USB Gen2 Type A supports data transfer up to 10Gbps, backwards compatible to the previous version, and up to 900mA downstream charging
Provides up to 60W for host, 85W max for host and host. Smart power allows you to flexibly distribute power to your PC and hub in real-time depending on the power consumption of connected devices, maximizing the power supplied by an external DC power adapter
Compatible OS support Thunderbolt 4 hosts, Windows 10 or later and MacOS 11 or above supporting Thunderbolt 3 hosts. Conforms to ROHS (Limitation of Hazardous Substances), FCC and CE mark EMI requirements (electromagnetic interference to human body and other devices). "Domestic Official Warranty" Warranty is 1 year from the date of purchase
