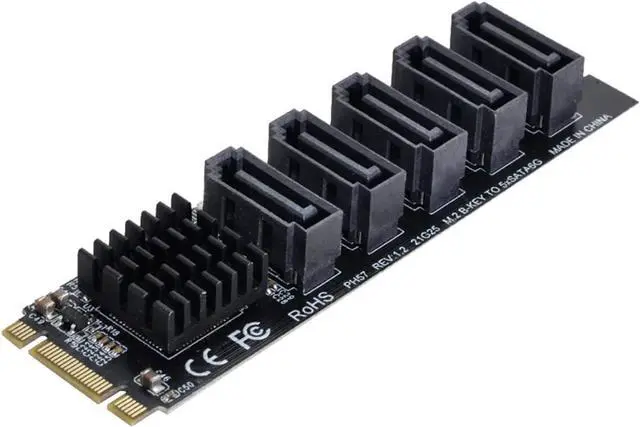

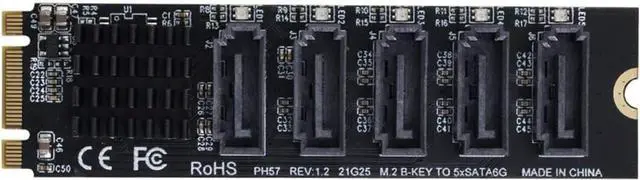

Cablecc NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port JMB575 2280

Be the first to review this product...

JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.
With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port .
JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
Key Features ·Comply with Serial ATA Port Spec. Revision 1.2 ·Comply with Serial ATA Port Spec. Revision 1.0 ·Support 6 port SATA 6Gbps interface ·Supports BIST and loopback mode ·Support command-based and FIS-based switching ·Support PM aware and non-PM aware host
Main control chip: JMB575. Interface: 5 * SATA3.0 interface. Applicable slot: NGFF Key B+M.

Overview

Specs

Reviews

JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.
With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port .
JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
Key Features ·Comply with Serial ATA Port Spec. Revision 1.2 ·Comply with Serial ATA Port Spec. Revision 1.0 ·Support 6 port SATA 6Gbps interface ·Supports BIST and loopback mode ·Support command-based and FIS-based switching ·Support PM aware and non-PM aware host
Main control chip: JMB575. Interface: 5 * SATA3.0 interface. Applicable slot: NGFF Key B+M.
