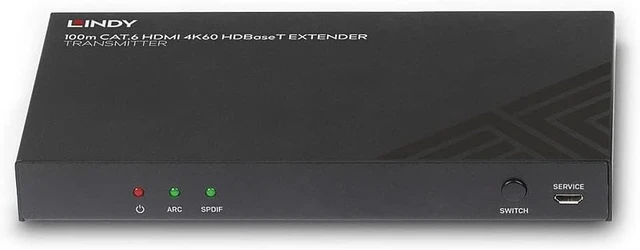

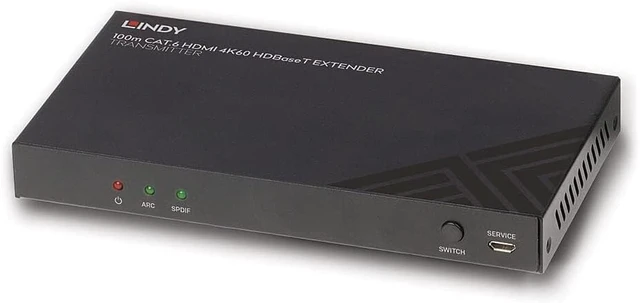

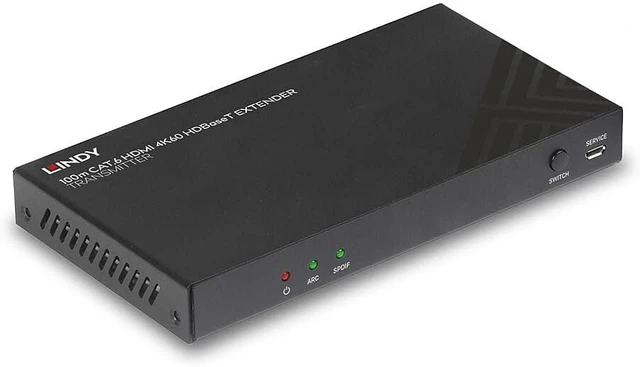

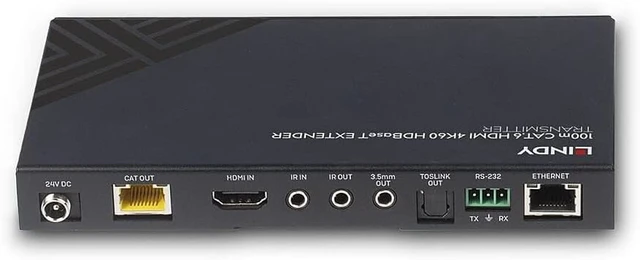

HDBaseT CAT.6 HDMI Transmitter 4K60, Audio, IR & RS-232, 100 m

The Lindy Cat.6 HDMI 4K60, Audio, IR & RS-232 100m HDBaseT Transmitter is part of a reliable and powerful solution for extending HDMI signals over long distances via a Cat.6 network cable. By combining this transmitter with a compatible Lindy HDBaseT receiver (38342), this solution ensures reliable transmission up to 100m. The following distance and resolution combinations are possible using high quality Cat.6 U/UTP or F/UTP cable: 100m: 1920x1080@60Hz 4:4:4 8bit 70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit Socket Support for resolutions up to 4K Ultra HD allows you to view videos with stunning clarity, while additional support for HDR (High Dynamic Range) enables content to be displayed with increased brightness, greater contrasts between blacks and whites, and a much wider color gamut. It is a reliable solution for creating eye-catching digital signage in stores, immersive displays at events, or engaging setups in large conference rooms or classrooms. ARC over HDMI support allows audio content to be sent back from the display to a connected amplifier or soundbar, while local audio extraction connects audio outputs for immersive multi-channel audio. The receiver-side digital audio integration can also be used for source audio, which can be easily switched via the push button of the main unit. Power over cable (PoC) functionality provides additional flexibility. It provides power at the same time as data via a Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning that only one power is required on the transmitter unit. This is ideal when power outlets are limited on the receiver side of the installation. Featuring two-way IR ports on both sides of the installation, the source equipment can be easily controlled from the screen side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows controls from a single main remote, this extension system allows complete and simple control for the user. Two-way RS-232 and Ethernet ports also allow integration into larger control systems, or connect to network switches and hubs with LAN access. In addition, the power supply is connected via a screw-on type DC socket, providing a safer and more reliable connection, perfect for professional installations where accidental disconnections could create a major problem. HDBaseT is a globally recognized standard for distributing high-quality AV content and other technologies, including power and control, over longer distances via Cat.6 cable or higher. HDBaseT and the HDBaseT Alliance logo are registered trademarks of the HDBaseT Alliance. The use of another type of cable, the introduction of wall plates, couplers or patch panels will lead to a reduction in possible distances. Please note: This product uses the DSC compression method to achieve 18G resolutions. If you are using another HDBaseT 18G product combined with it, please make sure both products support the same type of compression.
