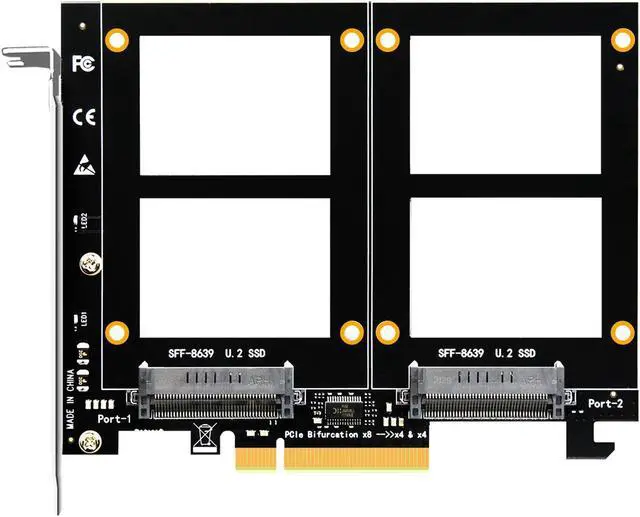

GLOTRENDS PU21 Dual U.2 SFF-8639 SSD to PCIe 3.0 X8, Bifurcation Required

(2) Write a Review
  • Add up to two 2.5" U.2 (SFF-8639) NVMe SSDs to a single PCIe 3.0 x8 slot and run both at the same time - a clean way to put a pair of enterprise U.2 drives to work in a workstation, NAS build or home server.
  • CHECK BEFORE ORDERING: this card carries no onboard switch, so your motherboard must support PCIe x8 bifurcation - enable X4X4 in BIOS. Without bifurcation only one drive is detected. Not compatible with Mac Pro.
  • PCIe 3.0 x8 delivers up to 64Gbps of total bandwidth shared by both drives. With no onboard switch chip there are fewer active components, less heat and fewer failure points than on switch-based cards. Fully backward compatible with PCIe 2.0 U.2 drives.
  • Build RAID 0 / RAID 1 across the two drives with Windows Disk Management or Linux mdadm, and boot from a U.2 drive after reinstalling the OS and setting BIOS/UEFI (some legacy boards support data-disk use only).
  • Rated for enterprise-class U.2 SSDs with no capacity limit (4TB/6TB and above). New drives need initialization and formatting. Backed by GLOTRENDS lifetime technical support.
+
+
Overview
Specs
Reviews (2)

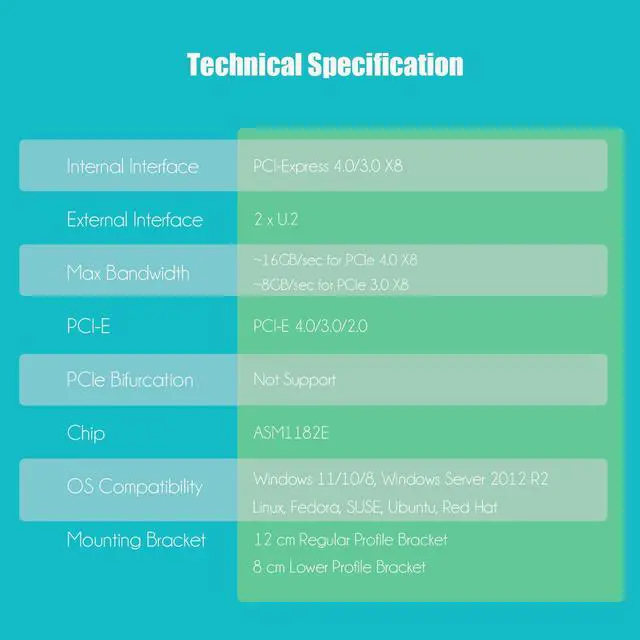

Model: PU21

Interface to PC

PCI-Express 4.0 X8 (128GBbps at max)

Interface to SSD

2 x U.2

OS Compatibility

Windows and Linux (Note: not support windows 7)

PCIe Bifurcation

Not support, so it requires a motherboard that supports PCIe Bifurcation

Hardware Platform

Intel and AMD motherboard with PCIe Bifurcation (Note: not support Mac Pro)

CPU Requirements

Intel 11th Gen or Ryzen 5000 Series and above

RAID Setup

Software RAID setup via Windows Disk Management or Linux mdadm Utility

Installation

Regular-profile bracket
Dual U.2 to PCIe 4.0 X8
Dual U.2 to PCIe 4.0 X8
Dual U.2 to PCIe 4.0 X8
Dual U.2 to PCIe 4.0 X8
Dual U.2 to PCIe 4.0 X8
Dual U.2 to PCIe 4.0 X8

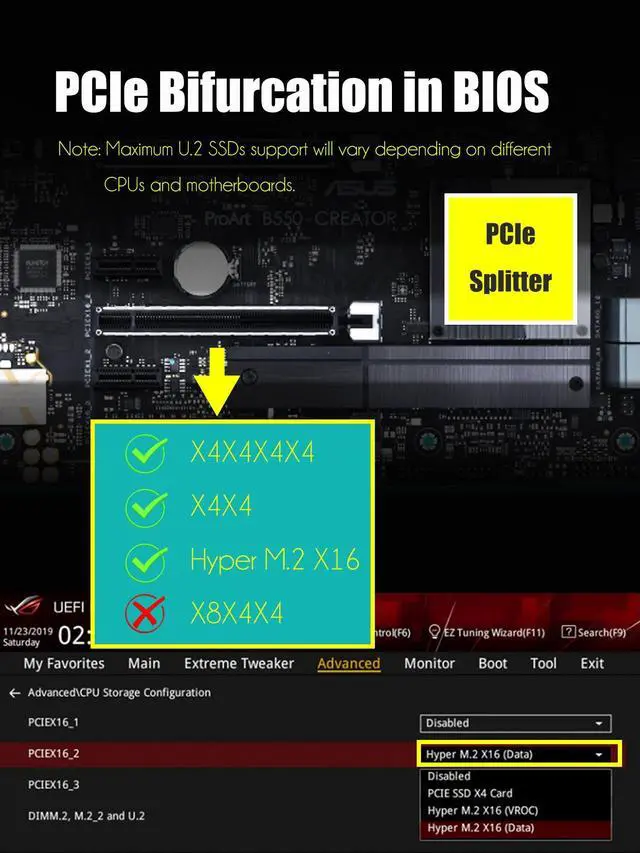

PCIe Bifurcation in ASUS BIOS

Enable Hyper M.2 <---> Advanced\Onboard Devices Configuration

Dual U.2 to PCIe 4.0 X8
PCIe Bifurcation in MSI or others BIOS

Configure PCIe x4+x4 or x4+x4x4+x4

Dual U.2 to PCIe 4.0 X8

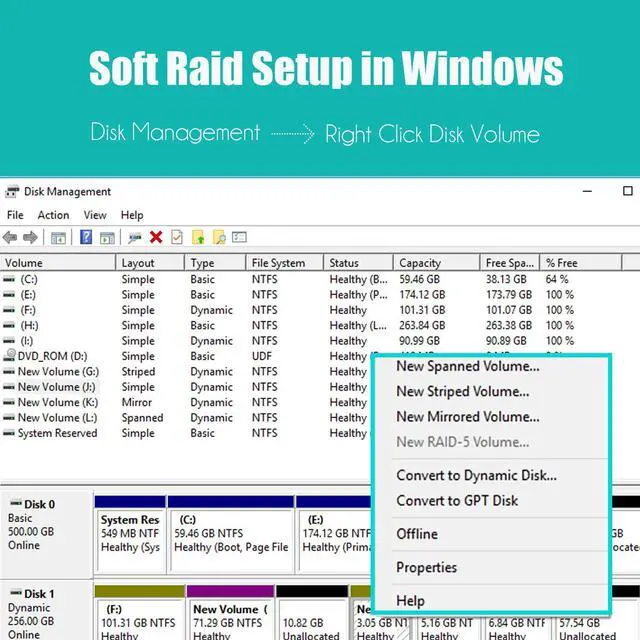

RAID Setup in Window 10/11
Software RAID for U.2 SSD
  1. When you locate 2 separate U.2 SSDs in Windows 10/11 Disk Management
  2. Right-click the disk volume you want to set up as a soft RAID
  3. A pop-up window will appear; click the desired option (Spanned/Striped/Mirrored)
Products
PCIe 4.0 X4 Adapter PU11
PCIe 4.0 X4 Adapter PU13
PCIe 4.0 X4 Adapter PU21
PCIe 4.0 X4 Adapter PU41
PCIe 4.0 X4 Adapter PA21
PCIe 4.0 X4 Adapter PA41
Internal Interface PCI-Express 4.0 X4 PCI-Express 4.0 X4 PCI-Express 4.0 X8 PCI-Express 4.0 X16 PCI-Express 4.0 X8 PCI-Express 4.0 X16
External Interface U.2 U.3 2 x U.2 4 x U.2 2 x M.2 4 x M.2

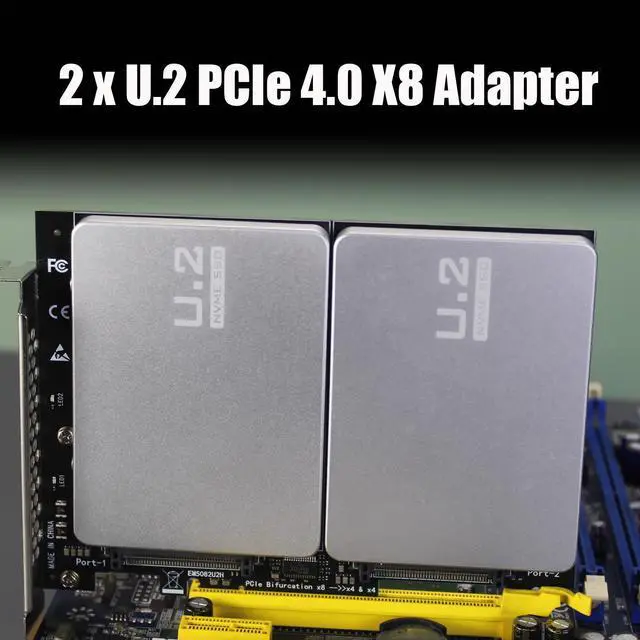

Dual U. 2
PCIe Adapter: add 2 x U. 2 SSD onto a single PCIe X8 host adapter, so you can access 2 x U. 2 SSD individually, or set up soft RAID in Windows/Linux/3rd party software.
U. 2 RAID for
Intel/AMD Platform: Support U. 2 SSD RAID-on-CPU (VROC) in the Intel Platform, but you need to purchase an Intel VROC license by yourself. Support U. 2 RAID in AMD Platform. Not compatible with Mac Pro 5.1
Note: Without the PCIe splitter function in this host adapter, so motherboard must support PCIe Bifurcation. Otherwise, only one U. 2 SSD will be recognized. If you are not sure PCIe Bifurcation of your motherboard, please consult the motherboard manufacturer or contact us via an Amazon message
Please set the PCIe splitter in BIOS/UEFI into X4X4X4X4 or X4X4X8 or Hyper M. 2 X16 mode.
Note: X8X4X4 mode will not work.
Please make sure BIOS/UEFI supports native NVMe and OS boot from the PCIe lane, then this PU21 supports OS boot from U. 2 SSD or U. 2 RAID.
Compatible with PCIe 4.0 / 3.0 / 2.0, and install into PCI-Express X8/X16 lane. To reach PCIe 4.0 speed, make sure your CPU and motherboard and U. 2 SSDs are all PCIe 4.0 enabled. To reach PCIe X8 full bandwidth, setup 2 x U. 2 SSD into RAID 0 mode.
U. 2
SSD Compatibility: Intel SSD D7-P5510 Series, D7-P5500 Series, D7-P5600 Series, Optane SSD 905P Series, Optane SSD DC P4801X Series, Optane SSD DC P4800X Series, D5-P4326 Series, D5-P4420 Series, D5-P4320 Series. Samsung PM9A3. WD Gold Enterprise Class NVMe SSD. Micron 7300 PRO Series.
