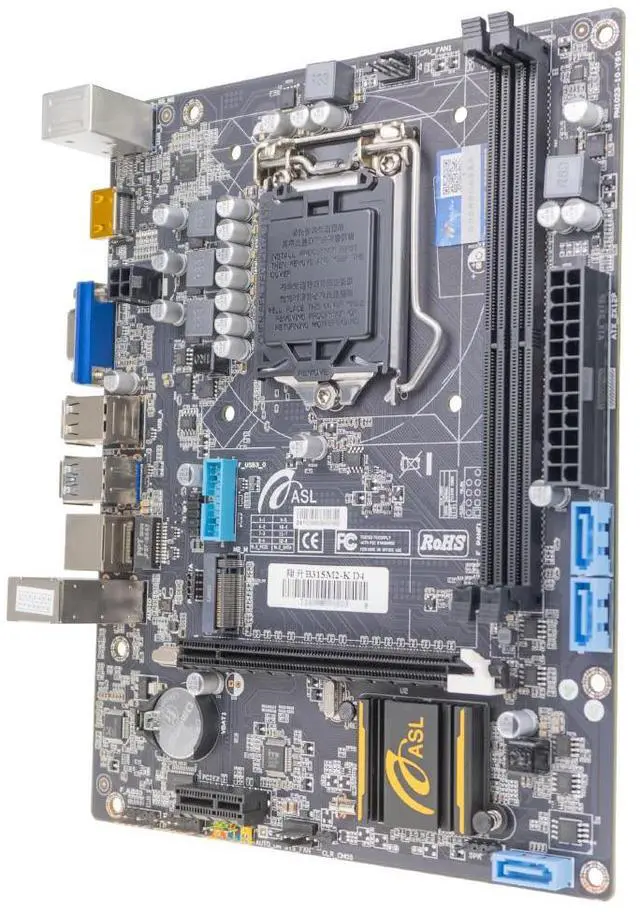

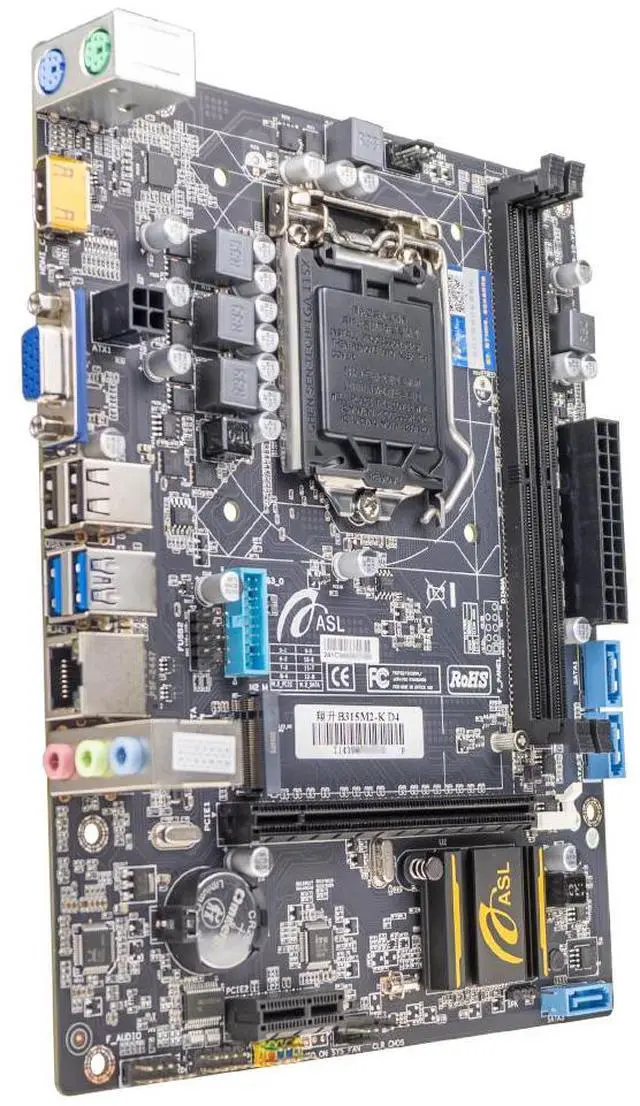

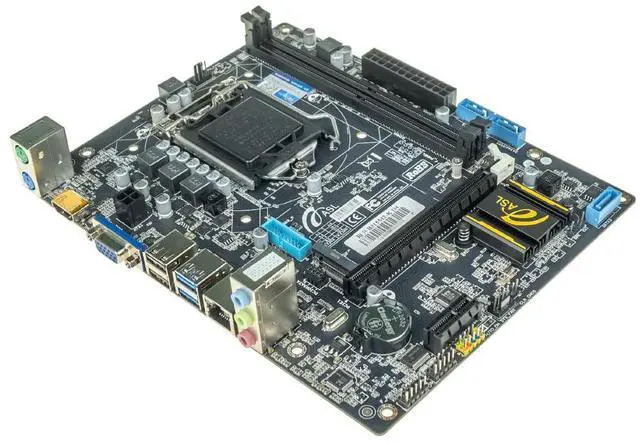

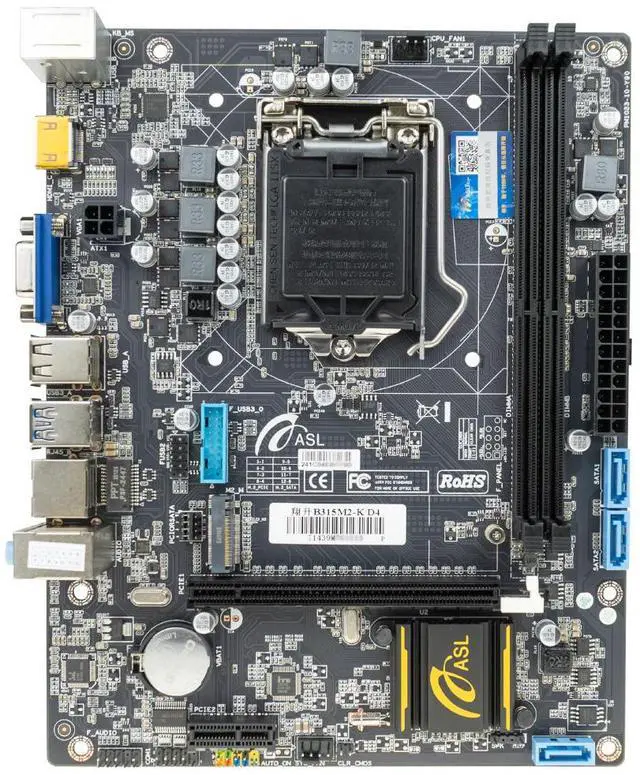

ASL B315M2-K D4 M-ATX Motherboard, Supports 6/7/8/9th Gen LGA1151, 2xDDR4, HDMI+VGA, 3×SATA3 + M.2, 1x PCI-E x16, 2x PCI-E x1 slots
Limited time offer, ends 12/30 By STELLAR
- 1. M - ATX form factor, dimensions 170×215 mm, supports 6th/7th/8th/9th - generation LGA1151 processors with TDP 65W.
- 2. 2 DDR4 DIMM memory slots, maximum support 64GB.
- 3. 3 SATA3.0 (6.0Gb/s) hard drive interfaces, 1 M.2 (2280, switchable between SATA/PCIe protocols) interface.
- 4. Expansion slots include 1 PCI - E x16 slot and 1 PCI - E x1 slot.
- 5. The rear panel has 1 HDMI, 1 VGA video interface, 2 USB2.0, 2 USB3.0 interfaces, etc.
+
+
Overview
Specs
Reviews
Product Model: ASL B315M2-K D4
Chipset Platform: Intel B-series Desktop Chipset
Form Factor: M-ATX
Dimensions: 170 x215 mm
Processor:
Supports Intel 6th/7th/8th/9th Gen LGA1151 processors
Supports Intel Core/Pentium/Celeron series processors
TDP: 65W
Memory Slots:
2x DDR4 DIMM dual-channel memory slots
Supports up to 64GB
Frequency support depends on motherboard/processor
Video Output Ports:
Requires processor-integrated graphics functionality
Rear 1x HDMI video output port
Rear 1x VGA video output port
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek network chip
Supports 1000M
Rear 1x RJ45 Ethernet port
Storage:
3x SATA 3.0 6.0Gb/s hard drive interfaces
1x M.2 SSD slot (2280 form factor, switchable between SATA/PCIe protocols via jumper)
Expansion Slots:
1x PCI-E x16 slot
1x PCI-E x1 slot

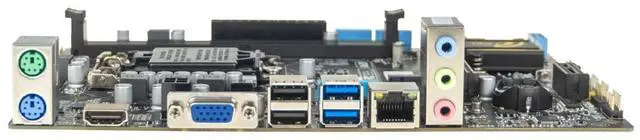

Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
2x USB 2.0 ports
2x USB 3.0 ports
1x RJ45 Ethernet port
1x 3-Jack audio port
Internal Pins/Connectors:
1x 24-Pin Motherboard Power Connector
1x 4-Pin CPU Power Connector
1x 4-Pin CPU Fan Header
1x 4-pin system fan header
1x Front USB 2.0 header
1x Front USB 3.0 header
1x COM port header
1x Front audio header
1x 2-pin CMOS reset header
1x 2-pin external buzzer header
1x M.2 SSD protocol switch jumper
1x Front panel header
