Specification:
Source: visible laserdiode, the wavelength of 650nm
Scanning speed: 100 lines per second
Decoding respectively: 0.10 mm
Scan depth: 0-45cm
Read the elevation angle: 30 degrees -60 degrees
EAN-8, EAN-13, UPC-E, Code39, Code93, Code128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of5, Matrix 2of 5, MSI,
Keyboard, Wand, RS232, DualRS232, USB
Support interface: Keyboard, Wand, RS232, Dual, RS232, USB
Error: 1/5, 000, 000
Prompt: the buzzer, theindicating lamp
Scanning mode: manual /continuous
Voltage: DC 5V
Working current: 110mA
Static current: 40mA
Electromagneticcompatibility CEFCC: DOC compliance
Working temperature: -10degrees to 45 degrees
Storage temperature: -20degrees to 60 degrees
Humidity: the relativehumidity of 5% - 95% (no condensation)
The brightness of theenvironment: Max. 4000Lux (fluorescence)
Seismic capacity: 1.2 m canwithstand the air fall
General Specifications
:
Dimensions: 150mm * 90mm *65mm
Weight: 155g
Material: ABS + PC
Cable standard: Line: 200cm

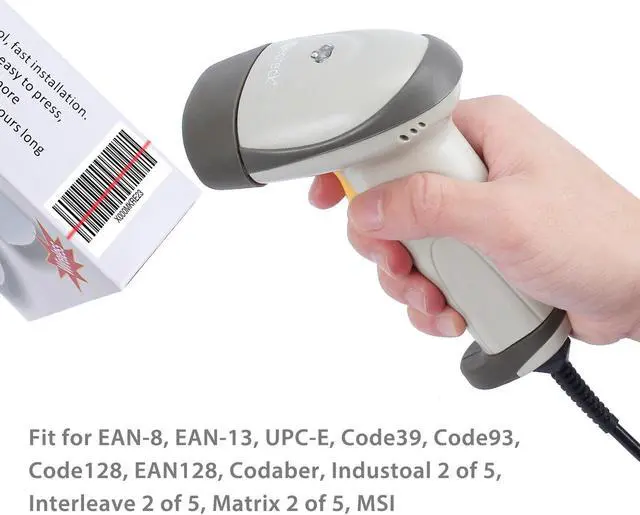

The decoding ability: EAN-8, EAN-13, UPC-E, Code39, Code93, Code128, EAN128, Codaber, Industoal 2 of5, Interleave 2 of5, Matrix 2, of 5, MSI,

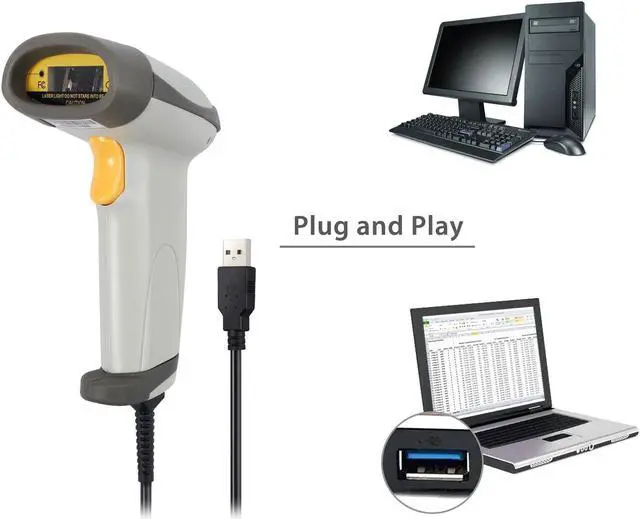

Plug and Play.
Just plug the USB cable into the USB port of your computer, laptop or other host and you can start scanning immediately.

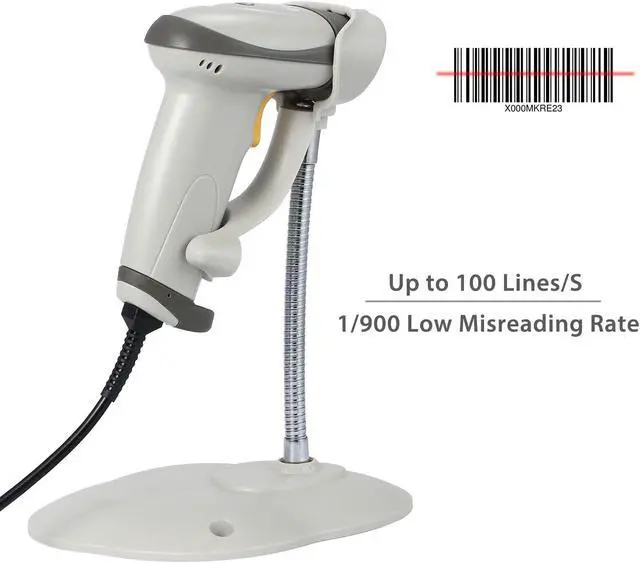

Adjustable Stand
Adjustable Stand Bracket allows you to find the most appropriate angle for more convenient use.

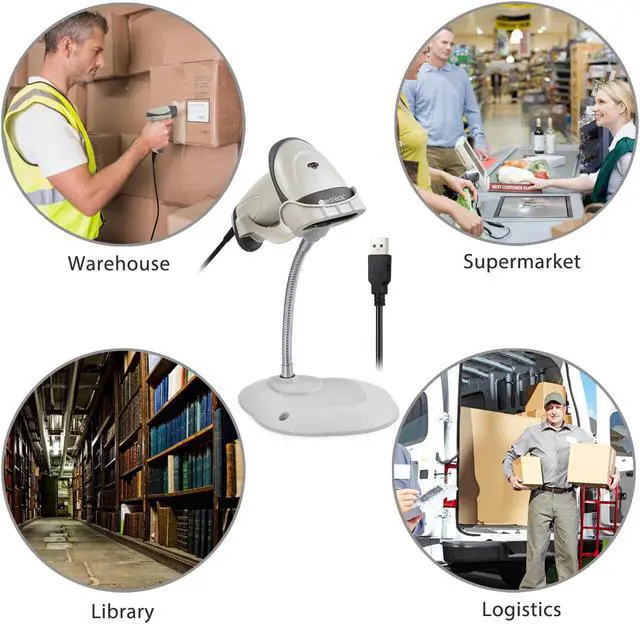

Lightweight and convenient, apply to supermarkets, warehouses, library, logistics etcSuitable for POS system, Postalsystem, Physical distribution, transportation.

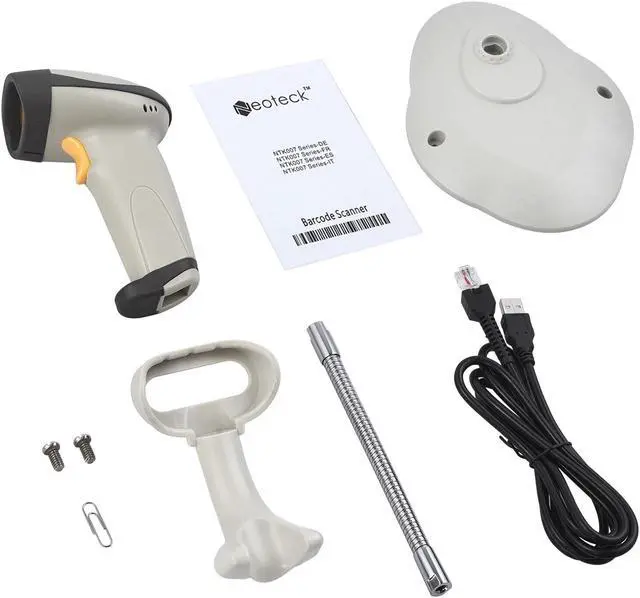

Package list:
1x Laser Barcode Scanner
1x USB data cable
1x User manual
1x Free stand
