Zebra DS457 DP Fixed Mount Barcode Scanner DS457-DP20004ZZWW USB Port

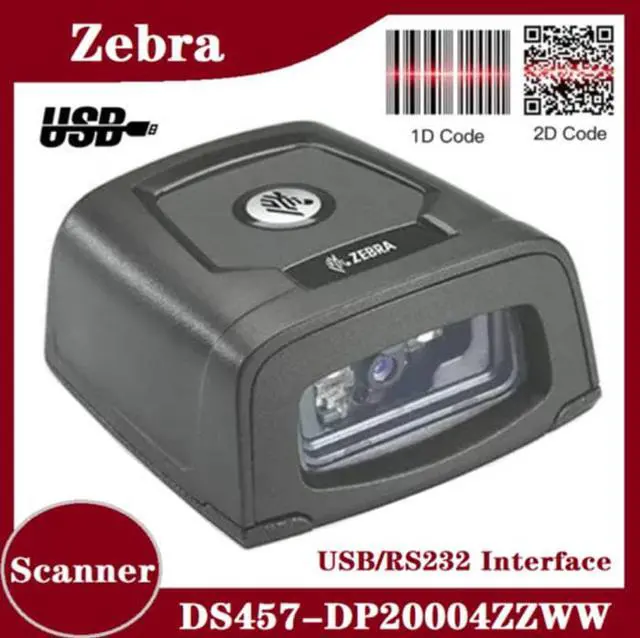

Original Zebra DS457-DP20004ZZWW USB/RS232 Fixed Mount 1D/2D Barcode Scanner


The Zebra DS457-DP20004ZZWW fixed-mount barcode reader can be used at a point of sale or a production line to scan and decode linear one-dimensional (1D), two-dimensional (2D), and Portable Document Format 417 (PDF417) barcodes. A laser produces lines of light in an omnidirectional pattern to scan barcodes on labels or cell phone screens at different angles. A trigger can be used to scan barcodes by hand instead of automatically. The barcode reader contains a 624 MHz processor to decode barcodes. A cable (sold separately) and on-board interfaces can be used to connect the barcode reader to a computer or host system.

A mounting accessory can be used to mount the barcode reader to a counter or surface. The barcode reader's footprint makes it suitable for small spaces. The barcode reader weighs 3.9 oz. and measures 1.15 x 2.44 x 2.3 inches (H x W x D). (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. ) It can withstand drops of up to 30" on a concrete floor.

The barcode reader is suitable for use with Motorola 123Scan software (available separately for download).





Physical parameters:

Scanner volume (length x width x height): 5.84 x 6.2 x 2.92 cm

Weight: 111 g

With rope: Yes

Hands-free function: Yes

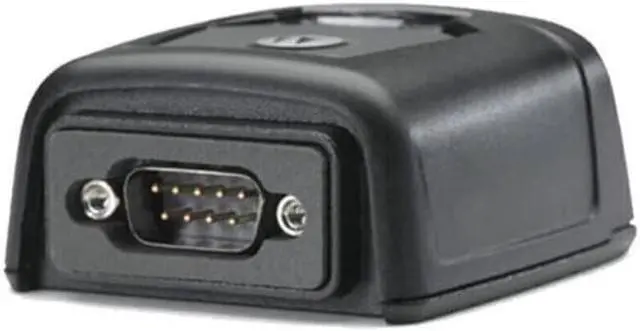

Supported interfaces: RS-232, USB

Decoding capability: 1D, 2D barcodes and direct component marking



Performance parameter:

Sensor resolution: 752 (horizontal) x480 (vertical) gray scale

Field of view: 38.4 ° horizontal, 24.9 ° vertical

Aiming element: 655 ± 10 nanometers (VLD)

Lighting element: 655 ± 5nm (LED)

Minimum printing contrast: minimum 25% absolute black / volume reflectance

Barcode decoding capability: 1D/2D



Use environment:

Operating temperature: -4 ° to 122 ° F / -20 ° to 50 °
C (Note: laser sight is disabled above 113 ° F / 45 ° C)

Storage temperature: -40 ° to 158 ° F / -40 ° to 70 ° C

Humidity: Working relative humidity 95%, 50 ° C non-condensing; storage relative humidity 85%, 70 ° C non-condensing

Environmental seal: IP54

Drop specifications: can withstand multiple impacts from a 30-inch / 76-cm height to the concrete floor

Ambient light: pitch black to 9000 foot candles (96, 900 lux)

Programming parameters: power mode, trigger mode, buzzer ringtone, call back time, focus control, camera control, image control, advanced data formatting, file collection, signature collection

Image file format: BMP, TIFF, JPG.



Regulations:

Electrical safety: ETL, VDE, CETL, EN60950, Ctick, VCCl.

Laser classification: suitable for CDRH class II / IEC8251 class equipment.

EMI electromagnetic interference / RFI radio frequency interference: FCC Part 15 Class B, ICES 003 Class B. CISPR22 Class B.

Environment: RoHs compliance.
