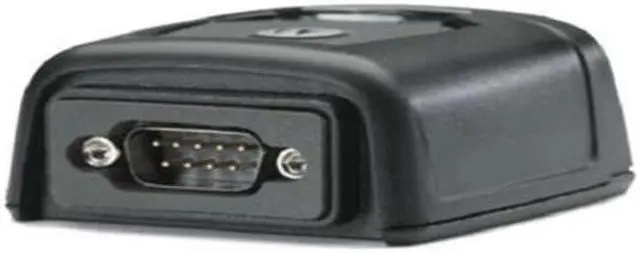

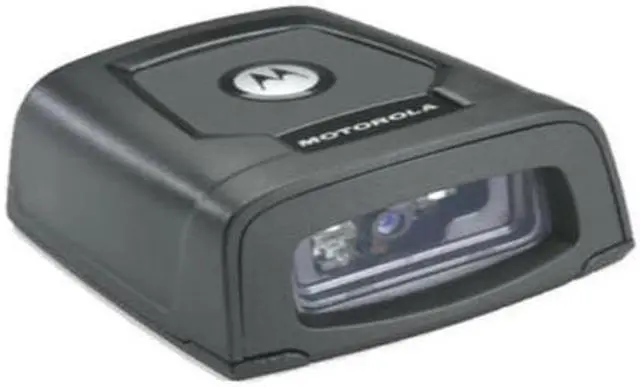

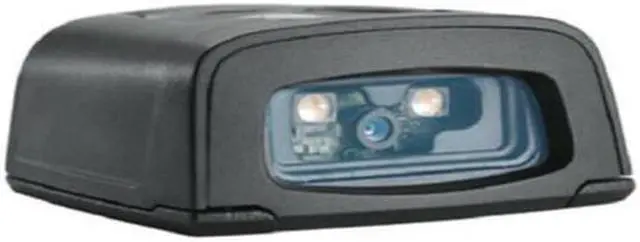

Motorola Zebra DS457-SR USB Fixed Mount Barcode Scanner Reader DS457-SR20009
- Motorola Zebra DS457-SR Fixed Mount Barcode Scanner Reader DS457-SR20009
- The Motorola DS457-SR20009 fixed-mount barcode reader can be used at a point of sale or a production line to scan and decode linear one-dimensional (1D), two-dimensional (2D), and Portable Document Format 417 (PDF417) barcodes. A laser produces lines of light in an omnidirectional pattern to scan barcodes on labels or cell phone screens at different angles. A trigger can be used to scan barcodes by hand instead of automatically. The barcode reader contains a 624 MHz processor to decode barcodes. A cable (sold separately) and on-board interfaces can be used to connect the barcode reader to a computer or host system. A mounting accessory can be used to mount the barcode reader to a counter or surface. The barcode reader's footprint makes it suitable for small spaces. The barcode reader weighs 3.9 oz. and measures 1.15 x 2.44 x 2.3 inches (H x W x D). (H is height, the vertical distance from the lowest to highest p
+
+
Overview
Specs
Reviews
Physical parameters: Scanner
volume (length x width x height): 5.84 x 6.2 x 2.92 cm
Weight: 111 g
With rope: Yes
Hands-free function: Yes
Supported interfaces: RS-232,
USB Decoding capability: 1D, 2D barcodes and direct component marking
Performance parameter: Sensor
resolution: 752 (horizontal) x480 (vertical) gray scale
Field of view: 38.4 ° horizontal, 24.9 ° vertical
Aiming element: 655 ± 10 nanometers (VLD)
Lighting element: 655 ± 5nm (LED)
Minimum printing contrast: minimum 25% absolute black / volume reflectance
Barcode decoding capability: 1D/2D
Use environment: Operating
temperature: -4 ° to 122 ° F / -20 ° to 50 °
C (Note: laser sight is disabled above 113 ° F / 45 ° C)
Storage temperature: -40 ° to 158 ° F / -40 ° to 70 °
C Humidity: Working relative humidity 95%, 50 ° C non-condensing; storage relative humidity 85%, 70 ° C non-condensing
Environmental seal: IP54
Drop specifications: can withstand multiple impacts from a 30-inch / 76-cm height to the concrete floor
Ambient light: pitch black to 9000 foot candles (96, 900 lux)
Programming parameters: power mode, trigger mode, buzzer ringtone, call back time, focus control, camera control, image control, advanced data formatting, file collection, signature collection
Image file format: BMP, TIFF, JPG.
Regulations: Electrical
safety: ETL, VDE, CETL, EN60950, Ctick, VCCl.
Laser classification: suitable for CDRH class II / IEC8251 class equipment. EMI electromagnetic interference /
RFI radio frequency interference: FCC Part 15 Class B, ICES 003 Class B. CISPR22 Class B.
Environment: RoHs compliance.
volume (length x width x height): 5.84 x 6.2 x 2.92 cm
Weight: 111 g
With rope: Yes
Hands-free function: Yes
Supported interfaces: RS-232,
USB Decoding capability: 1D, 2D barcodes and direct component marking
Performance parameter: Sensor
resolution: 752 (horizontal) x480 (vertical) gray scale
Field of view: 38.4 ° horizontal, 24.9 ° vertical
Aiming element: 655 ± 10 nanometers (VLD)
Lighting element: 655 ± 5nm (LED)
Minimum printing contrast: minimum 25% absolute black / volume reflectance
Barcode decoding capability: 1D/2D
Use environment: Operating
temperature: -4 ° to 122 ° F / -20 ° to 50 °
C (Note: laser sight is disabled above 113 ° F / 45 ° C)
Storage temperature: -40 ° to 158 ° F / -40 ° to 70 °
C Humidity: Working relative humidity 95%, 50 ° C non-condensing; storage relative humidity 85%, 70 ° C non-condensing
Environmental seal: IP54
Drop specifications: can withstand multiple impacts from a 30-inch / 76-cm height to the concrete floor
Ambient light: pitch black to 9000 foot candles (96, 900 lux)
Programming parameters: power mode, trigger mode, buzzer ringtone, call back time, focus control, camera control, image control, advanced data formatting, file collection, signature collection
Image file format: BMP, TIFF, JPG.
Regulations: Electrical
safety: ETL, VDE, CETL, EN60950, Ctick, VCCl.
Laser classification: suitable for CDRH class II / IEC8251 class equipment. EMI electromagnetic interference /
RFI radio frequency interference: FCC Part 15 Class B, ICES 003 Class B. CISPR22 Class B.
Environment: RoHs compliance.
