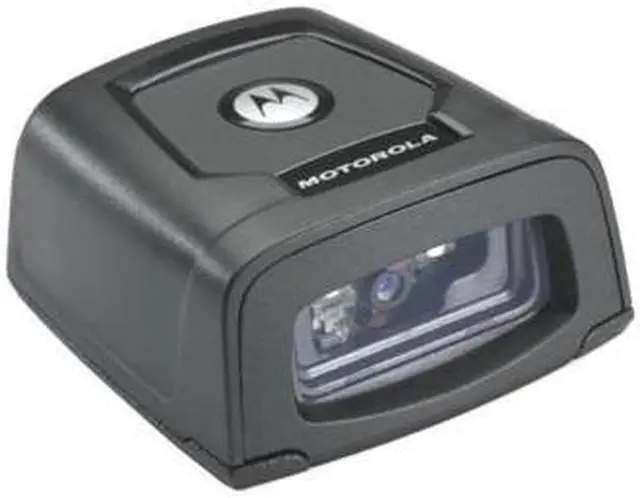

Main image of Zebra DS457-HD High Density Fixed Mount Imager and 1D/2D Barcode Scanner - Black - DS457-HD20009

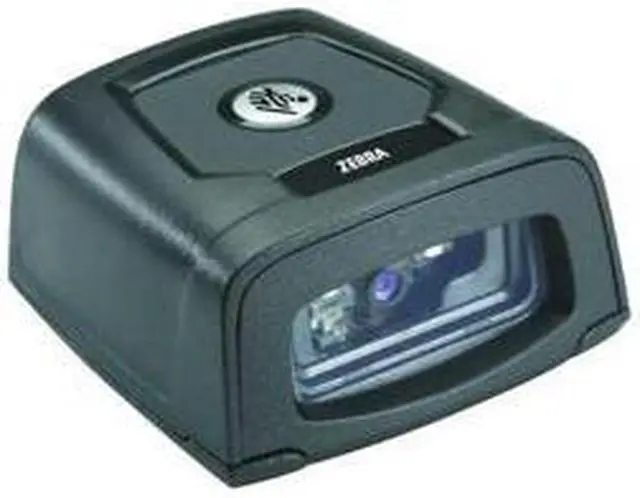

Alt view image 2 of 2 - Zebra DS457-HD High Density Fixed Mount Imager and 1D/2D Barcode Scanner - Black - DS457-HD20009

Shop All Zebra Products | Visit Lezone Marketplace Store

Zebra DS457-HD High Density Fixed Mount Imager and 1D/2D Barcode Scanner - Black - DS457-HD20009

DS457-HD: Optimized for comprehensive 2D barcode capture; electronic manufacturers can ensure the right part is used at the right time on the production line; & pharmaceutical manufacturers can track product as it is produced & packaged to meet track & trace regulations
Reads mobile bar codes — electronic versions of tickets, boarding passes & loyalty cards that can be carried right in the mobile phone
There is never a need to pause between scans
Ideal where a zero or minimal footprint is required
Can be used as a standalone scanner or integrated into the most space-constrained products to bring world-class scanning performance to mobile computers, handheld scanners, self-service kiosks, medical & diagnostic instruments, lottery terminals & more
Powerful 624 MHz processor, fast sensor shutter speed & patent pending fastpulse illumination
Full omni-directional scanning eliminates the need to precisely align bar code & imager
Withstands multiple 30 in. drops to concrete

Overview

Specs

Reviews

Learn more about the Zebra DS457 General Brand Zebra Model DS457 Part Number DS457-HD20004ZZWW Form Factor Fixed-position Connectivity Corded Scan Engine 2D/1D Connectivity Included Cables Scanner Only - No Cable Interfaces Supported 9-pin male D-sub - USB (full speed) and TTL level RS232 with RTS and CTS Scan Performance Light Source Aiming Element: 655 +/- 10 nm (VLD)
Illumination Element: 625 +/- 5 nm (LED) Imager Field of View HD Focus Print Contrast Ratio (Minimum) Minimum 25% absolute dark/light reflectance
Electrical Input Voltage Maximum: 5 VDC +/- 10% @ 450 mA Mechanical Dimensions 1.15" x 2.44" x 2.30" Weight 0.25 lb. Features Drop Withstands multiple 30" / 176 cm drops to concrete
