Durable, Single-Board Construction
Meets stringent 5ft drop tests.
Scratch-Resistant Tempered Glass Exit Window
Designed for continuous use.
Accurate First-Time Capture of 1D Bar Codes
Increased productivity, resulting in shorter check-out lines and better customer service.
Wide Working Range
Delivers optimal performance from contact to 17 in. (43cm).
Multiple On-Board Interface
Simple installation and integration, and ensures future compatibility.
Plug-and-Play, with Universal Cable
Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive Design
Minimizes setup and training time.
Ergonomic, Lightweight Design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.

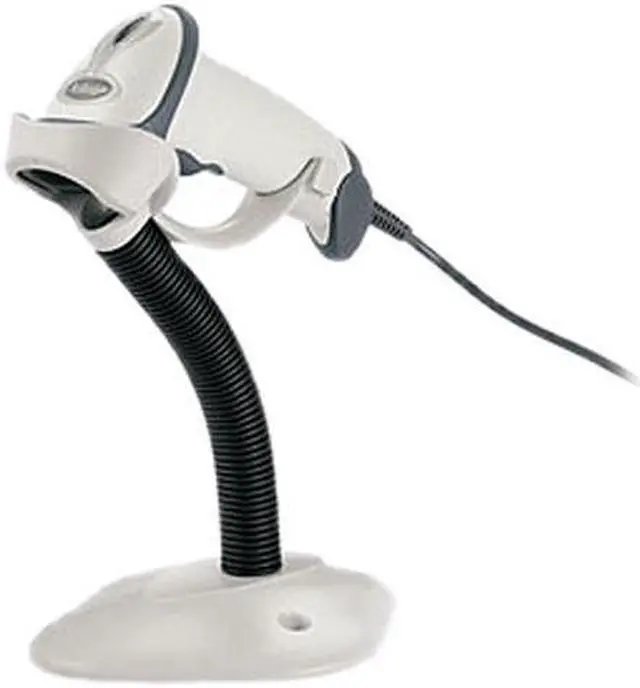

Hands-Free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
Brand Zebra Series Symbol Model LS2208 or Handheld Connectivity Cable Scan Engine 1D Connectivity Included Cables USB Cable w/ Stand Interfaces Supported USB Cordless Type Handheld Barcode Scanner Scan Performance Light Source 650 nm visible laser diode Pitch ±65 degree Roll ±30 degree Yaw ±60 degree Scan Speed 100 scan/s Print Contrast Ratio (Minimum) 20% Decoding Capability UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 Electrical Input Voltage 5 volts +/- 10% at 130 mA typical, 175 mA max Mechanical Color White Dimensions 6.00" x 2.50" x 3.34" Weight 0.33 lb.
Features
FeaturesUserEnvironment: Operating Temp.: 32° to 122° F/0° to 50° C
StorageTemp.: -40° to 158° F/-40° to 70°
CHumidity: 5% to 95% relative humidity, noncondensing Drop Unit functions normally after repeated 5 ft. / 1.5 m drops to concrete
