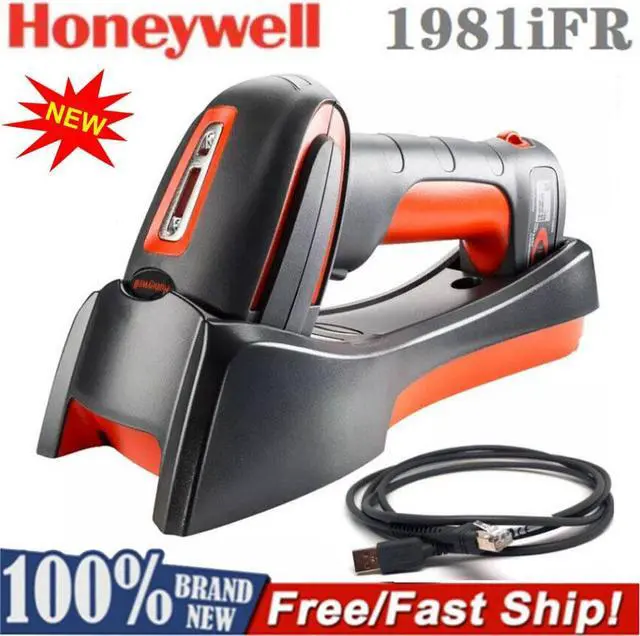

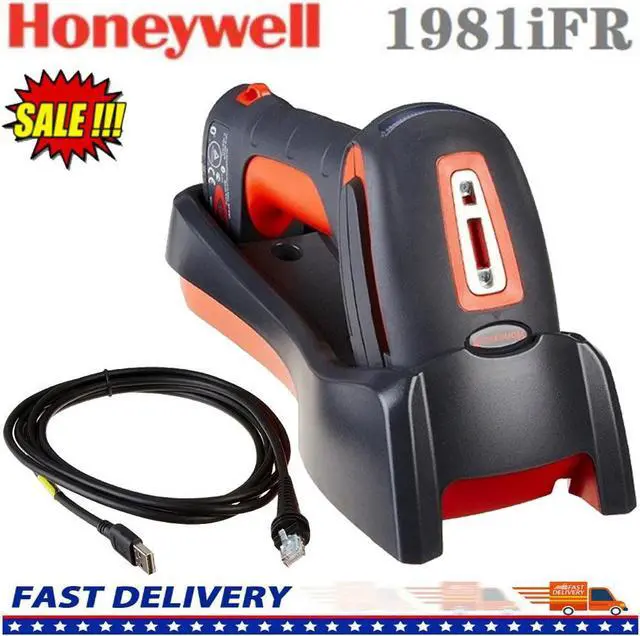

    Honeywell Granite 1981iFR-3USB-5 Barcode Scanner USB Interface 2D Wireless Scanner

    Limited time offer, ends 03/26 By Tech Frontier Electronics

    Be the first to review this product...
    • The Granit 1981i (wireless) area-imaging scanners are capable of reading 1D and 2D barcode from 15 cm (6 in) to 15 m (50 ft).
    • Theyre packed with technologies that make them easy to use and take the guesswork out of scanning at extended ranges. And Granit 1981i scanners are IP65 rated to withstand harsh environments.
    • The Granit 1981i is specifically designed to withstand the varied demands of harsh environment. The IP65 rated Granit 1981i is built to survive 5,000 1 m tumbles and 50 drops to concrete from 2 m even at 20C.
    • The Granit 1981i Industrial-Grade cordless area-imaging scanner is designed to withstand the varied demands that exist in harsh working environments.
    • Featuring a custom built housing that is redefining the standard for scanner reliability, the IP65 rated Granit 1981i is built to survive 5,000 1 m tumbles and 50 drops to concrete from 2 m even at -20?C. As a result, businesses can expect to experience minimal device downtime and a lower overall cost of ownership.
    +
    +
    Overview
    Specs
    Reviews
    Operating Temperature -30°C to 50°C (-22°F to 122°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
    Humidity 0 to 95% relative humidity, non-condensing
    Drop Designed to withstand 50 2 m (6.5 ft) drops to concrete at -30°C
    Tumble 5,000 1 m (40 in) tumbles
    ESD ±20Kv air discharge, ±8kV contact discharge
    Environmental Sealing IP65
    Light Levels 0 to 100,000 lux (9,290 foot-candles)
    Input Voltage 4.0 to 5.5 VDC
    Operating Power 2.35W (470mA @ 5.0V)
    Standby Power 0.5W (100mA @ 5.0V)
    Host System Interfaces USB and True RS232
    Scan Pattern Area Imager
    Scan Angle Horizontal: 12.9° Vertical: 8°
    Symbol Contrast 1D Codes: 30% minimum reflectance difference
    2D Codes 40% minimum reflectance difference
    Min. Resolution 1D & 2D Codes: 2 mil
    Pitch, Skew 70°, 80°
    Dimensions 133 mm x 75 mm x 195 mm (5.2 in x 2.9 in x 7.6 in)
    Weight 14.82 oz
    Connectivity Technology Wireless
    Scanning Distance 49.21 ft
    Maximum Ambient Light 100000 lux
