| Brand |
Honeywell |
| Model |
MK9520 |
| Part Number |
MK9520-32A38 |
| Form Factor |
Handheld |
| Connectivity |
Corded |
| Scan Engine |
Laser |
| Included Cables |

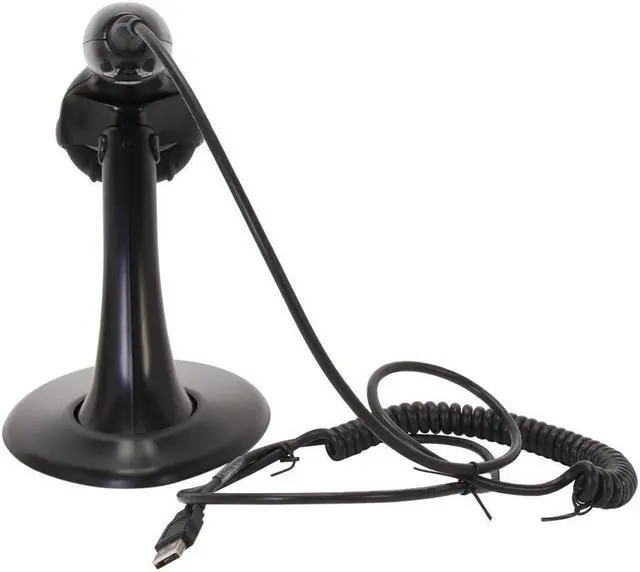

USB Cable Included |
| Interfaces Supported |
USB |
| Light Source |
650 nm visible laser diode |
| Depth of Scan Field |
0 mm - 203 mm (0" - 8") for 0.330 mm (13 mil) barcodes @ default |
| Width of Scan Field |
64 mm (2.5") @ face; 249 mm (9.8") @ 203 mm (8") |
| Pitch |
68 degree |
| Roll |
42 degree |
| Yaw |
52 degree |
| Dimensions |
7.8" x 1.6" x 3.1" |
| Weight |
5.25 oz. |
| Scan Speed |
72 scan lines per second + 2 |
| Decoding Capability |
all standard bar codes for others call a |
| Metrologic service |
representative |
Honeywell's Voyager® 9500 series of hand-held, single-line laser scanners offer aggressive scanning of all standard 1D bar codes. The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.
These sleek scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).

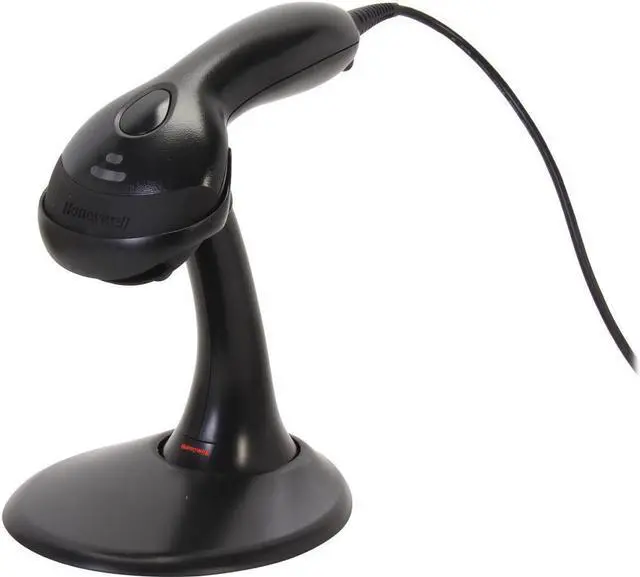

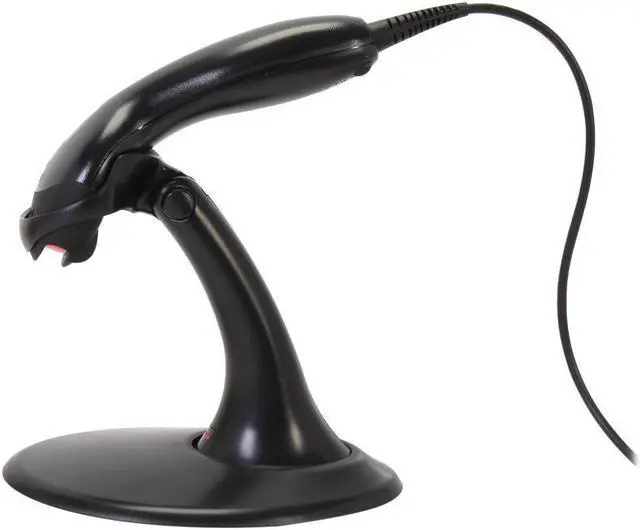

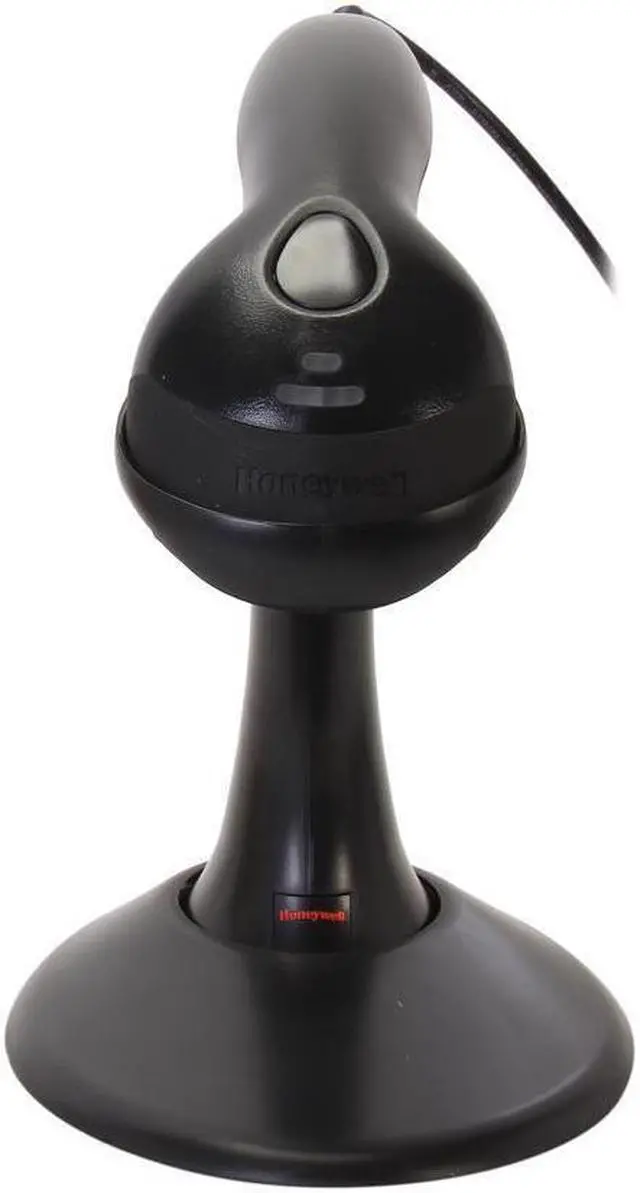

VoyagerCG 9540 also includes patented CodeGate® technology which allows the user to easily target the desired bar code and complete data transmission with the press of a single button. For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.
