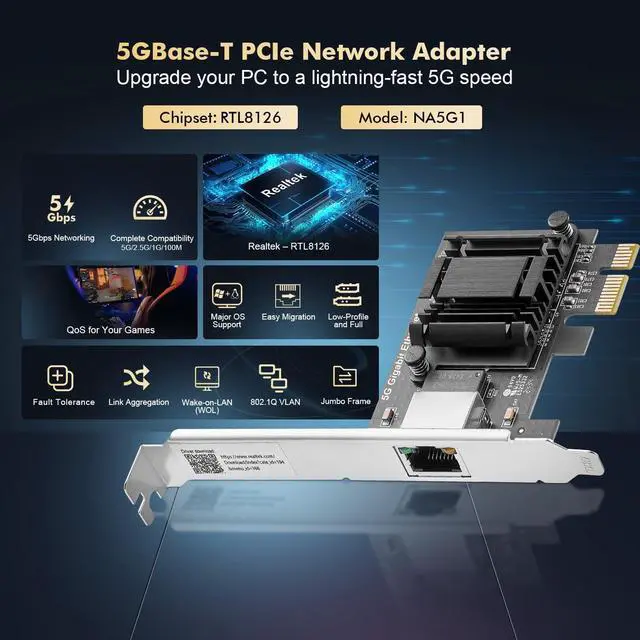

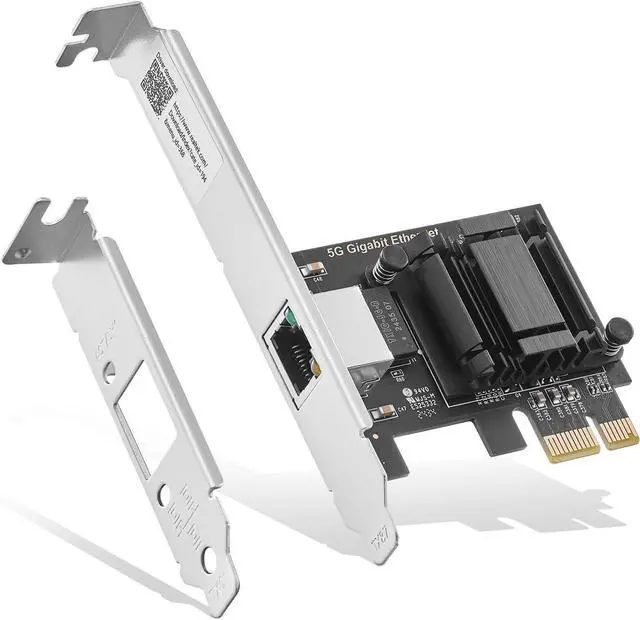

5G PCIe Network Adapter, RTL8126 5G/2.5G/1G/100Mbps Binardat Ethernet Card RJ45 LAN Controller with Low Profile, Support PXE for Windows 11/10, Linux
- 5Gbps Network Up to 5 Giga-bit with Realtek RTL8126 chip, compatibe 5G/2.5G/1Gbps/100M/10M auto-negotiation, support standard Cat5e or above UTP at distances up to 100m (328 feet)

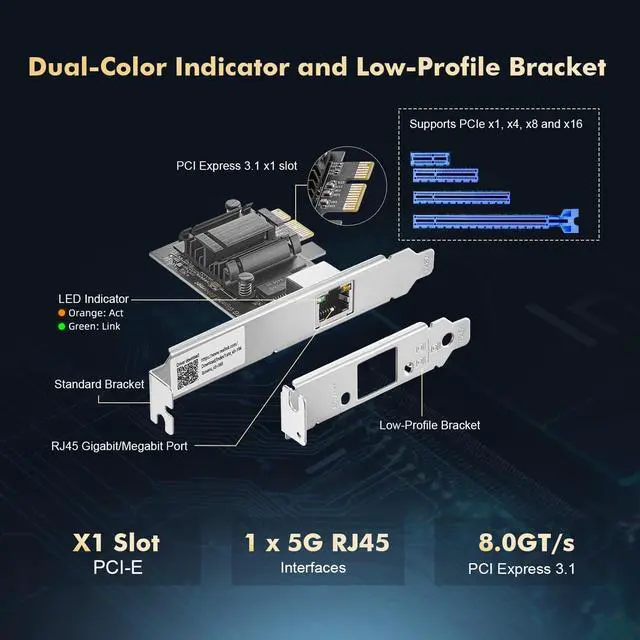

- PCIe SlotCompatible for PCIe slot X1,X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, workstation, NAS, etc. **not for PCI slot**
- Multiple OSSupport Windows11/10, Linux kernel up to 6.4, freely driver download, CD-ROM, Driver link on the bracket, Realtek official website can download the driver easily.
- Network FeatureSupport PXE, Auto MDIX, IEEE 802.1Q VLAN tagging, IEEE802.3bz(2.5G/5G BASE-T), Full Duplex flow control(IEEE 802.3x), Wake-on-LAN, Jumbo frame 16Kbytes
- Easy to UseSelect the appropriate brackets according to the chassis size, insert into the PCIe slots, install the driver, connect to the network, the LEDs show the link status and rate. Any questions, please contact our support email, we will provide timely service.
+
+
Overview
Specs
Reviews
The NA5G1 is a Single port 5Gbps PCIe network card, It adds one copper Ethernet port to your Server or Desktop computer and provides Multi-Giga-bit Ethernet access to your network at five speeds: 5Gbps, 2.5bps, 1G, 100Mbps and 10Mbps.
The 5G base-T solution provides additional bandwidth using your existing ethernet infrastructure to help reduce the cost cabling upgrades. The card enables you to connect to 5Gbase-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps and 5Gbps over your CAT5e cabling (up to 100M depending on the network configuration).
The Realtek RTL8126 chipset, compliant with IEEE 802.3az and IEEE 802.3u supports the PCIe 3.1 interface. It provides up to a 500% increase in data rate and requires no changes to existing cable infrastructure.
Main Features:
- Multi-Giga-bit Ethernet connectivity with four network speeds: 5G, 2.5G, 1G, 100Mbps, 10Mbps
- Compatible with both 5GBASE-T and NBASE-T specifications
- Support 5Gbps network speed on CAT5e and CAT6a cabling
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az and IEEE 802.3bz standards
- Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
- Supports IEEE 802.1ad Double VLAN
- Full and half duplex support
- PXE network boot support
- Transmit/Receive on-chip buffer support
- Jumbo frame supports up to 16Kbytes
- Wake-on-LAN (WOL) support
- Complies with Microsoft and Linux platforms
