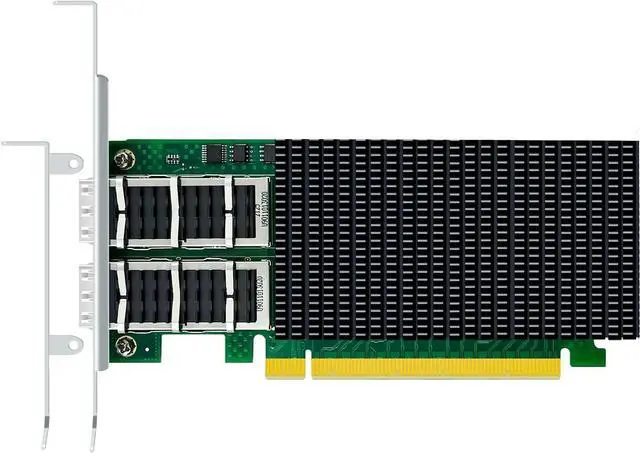

ST7336 2-Port QSFP28 VPI 100Gb EDR InfiniBand and Ethernet Network Card with Mellanox ConnectX-4 Controller, PCIe 3.0 X16 Interface, Support InfiniBand RDMA/RDMA (RoCE v2)
- 2-port 100Gb (100/56/50/40/25/10 Gb/s speeds) EDR InfiniBand & Ethernet Ethernet Network Interface Card (NIC) with PCIe 3.0 X8 Interface(8.0GT/s link rate), backward compatible PCIe 2.0, 1.1 (Reference Part Number: MCX456A-ECAT)
- InfiniBand RDMA and RDMA over Converged Ethernet (RoCE V2), Virtual Protocol Interconnect (VPI), Overlay Networks (VXLAN/NVGRE/GENEVE)
- Sockets Acceleration: Hardware stateless offload for TCP/UDP/IP reduces the CPU overhead of IP packet transport
- HARDWARE-BASED I/O VIRTUALIZATION: Supports industry-standard SR-IO Virtualization technology and delivers VM protection to all levels of QoS for applications
- Hardware offloads for NVGRE, VXLAN and GENEVE encapsulated traffic that encapsulate and de-capsulate the overlay protocol headers, enabling the traditional offloads (MPLS, QinQ, and so on) to be performed on the encapsulated traffic
- Mellanox Multi-Host technology connects up to 4 independent hosts
- OS Compatibility: Windows Server 2008/2012, Citrix XenServer 6.1, Novell SLES, RHEL and other Linux versions, VMware ESXi 4.x and 5.x
+
+
Overview
Specs
Reviews
Product description
Model:ST7336
| Data Rate | InfiniBand: SDR/DDR/QDR/FDR/EDR;Ethernet:1/10/25/40/50/100 Gb/s |
| InfiniBand | Auto-Negotiationa : 1X/2X/4X SDR(2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port |
| Ethernet | 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4,40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |

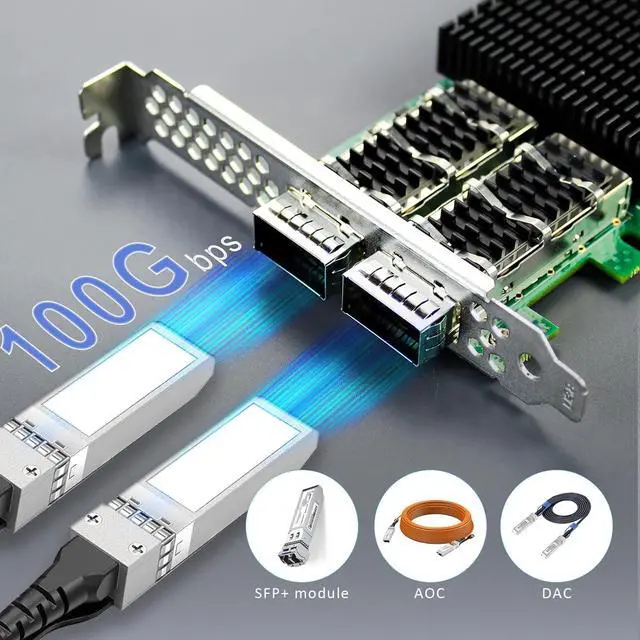

| Connector | QSFP28 InniBand |

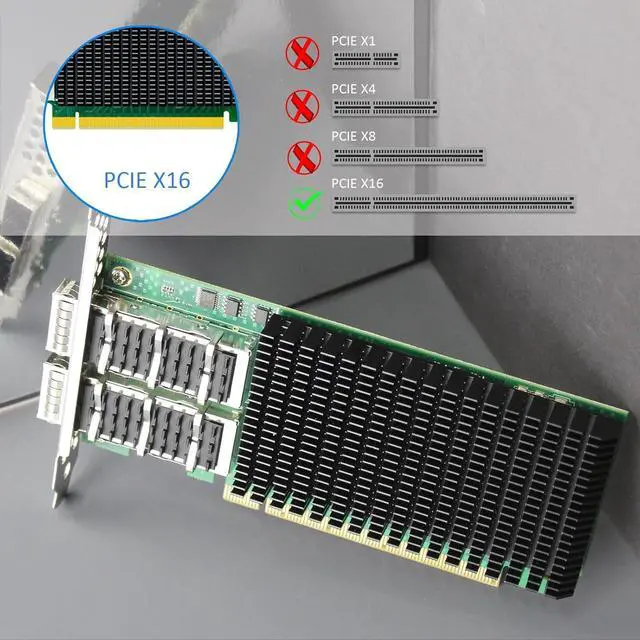

| PCIe Lane | PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) |
| Chip | Mellanox ConnectX-4 |
| Reference Part Number | MCX456A-ECAT |
