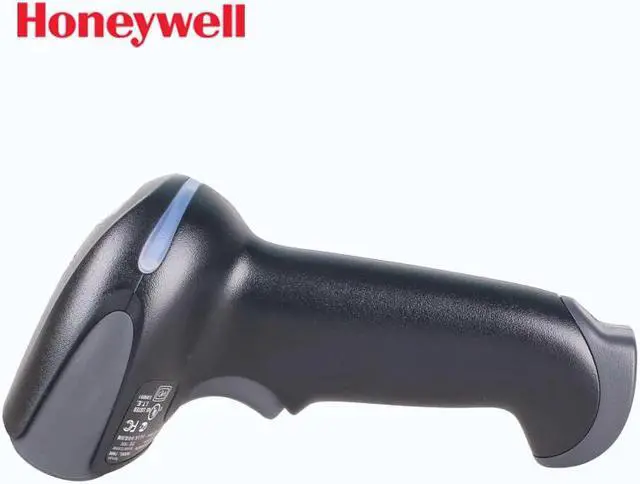

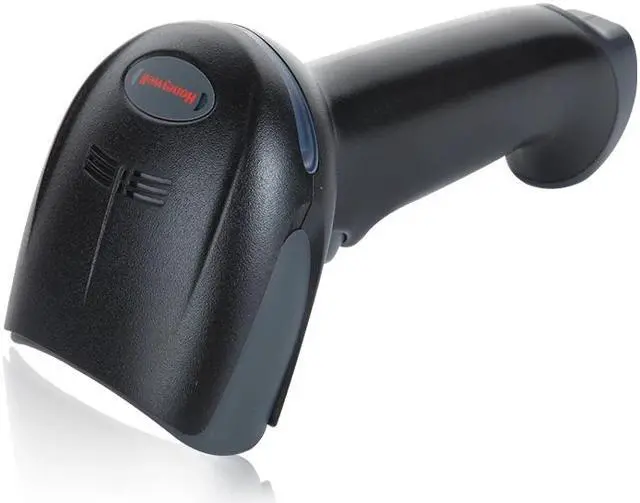

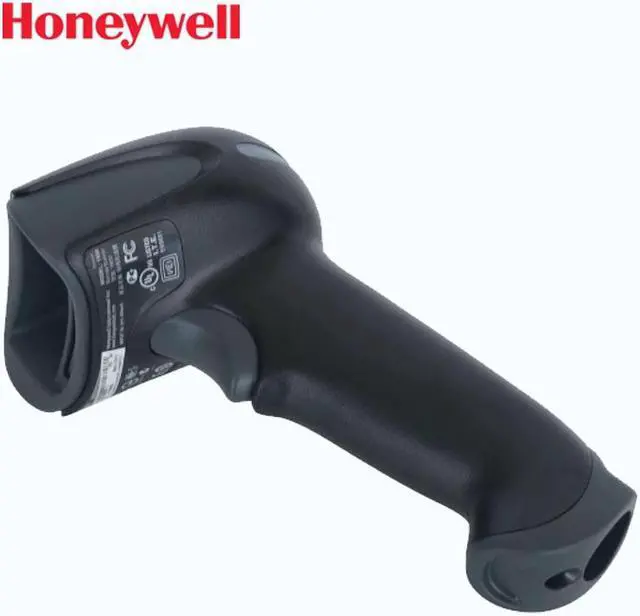

Honeywell 1900GHD-2USB Xenon 1900 Handheld Bar Code Reader,1900G USB KIT 1D PDF417 2D HD Focus W/USB TYPEA 3M STRGHT CBL BLK

From high-density linear barcodes to 2D barcodes scanned directly off a mobile device’s screen, the Xenon series decodes virtually all barcodes with ease. Choose from the following versions to fit your needs: Xenon 1900g scanner for a wired USB or serial connection. Xenon 1902g scanner with Bluetooth® Class 2 (version 2.1 ) radio for unrestricted movement up to 10 m (33 ft) from the base and up to 14 hours of battery life. Xenon 1900g Color scanner for a wired connection plus the ability to read high contrast color barcodes, such as red barcodes on white backgrounds. This version als Dimensions (LxWxH) 1900/1900C - 1902/1902C
Scanner: 104 mm x 71 mm x 160 mm ( 4.1 in x 2.8 in x 6.3 in) 1902/1902C
Base: 132 mm x 102 mm x 81 mm ( 5.2 in x 4 in x 3.2 in)
Weight 1900/1900C: 147 g ( 5.2 oz) 1902/1902C
Scanner: 214 g ( 7.5 oz) 1902/1902C
Base: 179 g ( 6.3 oz) ELECTRICAL
Input Voltage 1900/1900C: 4 VDC to 5.5
VDC OPERATING POWER 1900/1900C: 2.3 W (450mA @ 5 VDC) 1902/1902C
Scanner: N/A 1902/1902C
Base: Charging 5 W (1A @ 5 V) Non-Charging 0.5 W ( 0.1A @ 5 V) Standby
Power 1900/1900C: 0.45 W (90mA @ 5 VDC)
Battery 1902/1902C: 1800 mAh Li-ion (minimum) Expected
Operation Time 1902/1902Ci: 14 hours
Expected Charge Time 1902/1902C: 4.5 hours Number of
Scans 1902/1902C: 50, 000 scans per charge Host
System Interfaces 1900/1900C: USB, Keyboard Wedge, RS232, IBM 46xx (RS485) 1902/1902C
Scanner: N/A 1902/1902C
Base: USB, Keyboard Wedge, RS232, IBM 46xx (RS485) BLUETOOTH 1902/1902C
Radio/Range: 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency - Hopping Bluetooth v 2.1; Class 2:10 m (33 ft) line of sight 1902/1902C
Data Rate (Transmission Rate): Up to 1 Mbit/s ENVIRONMENTAL
Operating Temperature 1900/1900C: 0°C to 50°C (32°F to 122°F) 1902/1902C
Scanner: 0°C to 50°C (32°F to 122°F) 1902/1902C
Base: Charging 5°C to 40°C (41°F to 104°F) Non-Charging 0°C to 50°C (32°F to 122°F) Storage Temperature -40°C to +70°C (-40°F to +158°F) Humidity 0 to 95% relative humidity, non-condensing
Drop 1900: Designed to withstand 50 1.8 m (6 ft) drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4 ft) drops to concrete on each of the faces 1900C: Designed to withstand 50 1.8 m (6 ft) drops to concrete 1902/1902C
Scanner: Designed to withstand 50 1.8 m (6 ft) drops to concrete 1902/1902C
Base: Designed to withstand 50 1 m ( 3.3 ft) drops to concrete Environmental Sealing IP41 Light Levels 0 to 100, 000 lux (9, 290 foot-candles)
Ratchet Cycles 1900: The ratchet stand shall support 10, 000 cycles (each cycle is one full movement of the scanner either up or down) without losing its ability to keep the scanner in any ratchet position SCAN PERFORMANCE Scan Pattern Area Image (838 x 640 pixel array) Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle HD Focus: Horizontal 41.4 °;
Vertical: 32.2 °
SR Focus:
Horizontal: 42.4 °;
Vertical: 33°
1900/1902: ER
Focus:
Horizontal: 31.6 °;
Vertical: 24.4 ° Print Contrast 20% minimum reflectance difference Pitch, Skew 45°, 65° Decode Capabilities Reads standard 1D, PDF, 2D, Postal and
OCR symbologies *Note: Decode capabilities dependent on kit configuration
