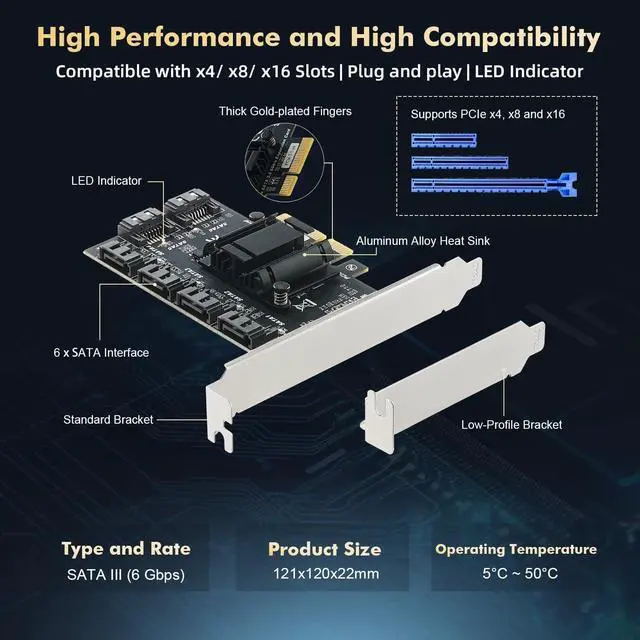

PCIE X4 to SATA Card 6 Port, 6Gbps SATA 3.0 Binardat Controller, Includes 4 Cables and Low Profile Bracket, for Windows 10/11
- 6 portsThis sata card has 6 ports, supports sata 3.0 (6 Gbps) and is compatible with SATA I/II (1.5/3.0 Gbps) to connect 6 sata devices at the same time. It can be used as storage and boot operating system/system hard drive.

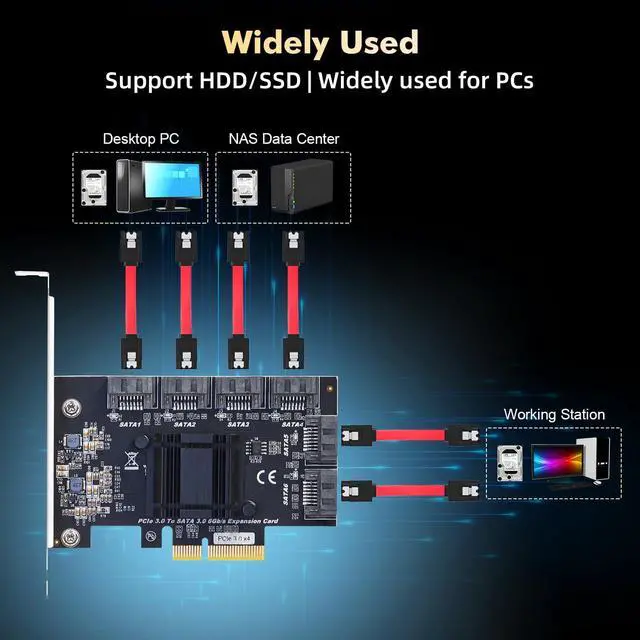

- PCIE X4Compatible with PCIe X4, X8, X16 slot, default with standard support, also includes low profile support, supports multiple installations such as PC, server, workstation, NAS, etc.
- Reliable Chipset Maximize efficiency and stabilize performance with the ASMedia ASM1166 chipset. Experience reduced error rates and optimal cooling through aluminum heat transfer and efficient heatsink, ensuring reliable operation.
- Easy to useCompatible with Windows 10/11 operating system, drive-less installation, plug and play, SATA interface with LED indicator, clearly shows connection status. **No RAID**

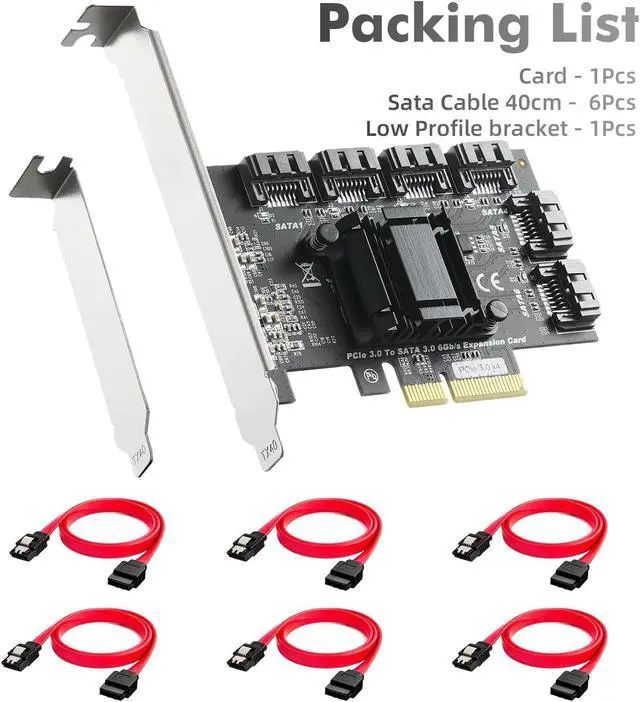

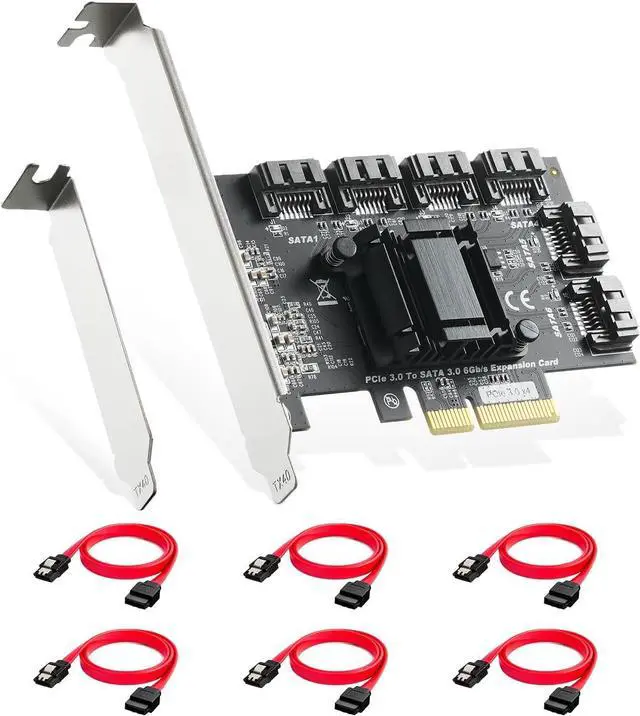

- Complete packageIncludes everything you need for a perfect solution: 1 x PCI-E to 6 ports adapter, 6 x SATA cables (40cm), 1 x low profile bracket. Provide support for the entire lifecycle.
+
+
Overview
Specs
Reviews

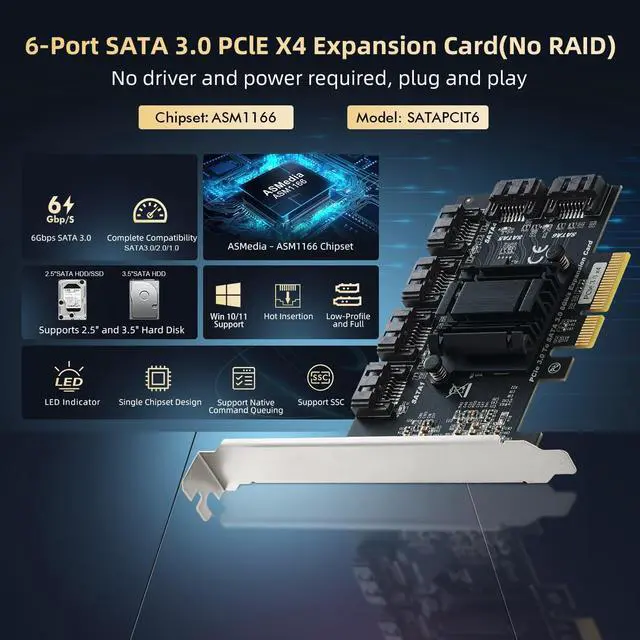

The SATAPCIT6 is 6-port SATA III (6 Gbps) to PCI Express x2 Gen 3 Host Card. It adds 6 AHCI SATA III port to computer though a PCIe slot (x4), delivering multiple internal 6Gbps connections for high performance hard drives and Solid State Drives (SSDs).
With full support for SATA 3.0 hard drives and data transfer speeds of up to 6Gbps, the adapter card feature a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for internal SATA 600 MB/s storage needs.
Features:
- 6 AHCI SATA III (6 Gbps) ports through PCI Express x4
- Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps)
- Compliant with PCI Express 3.0 standards
- Port Multiplier Command-based switching supported
- Natively supported single chipset design
- Support Native Command Queuing (NCQ)
- Support SSC for both PCIe and SATA
- LED Indicators: HDD Activity
- Includes Low Profile/Half-Height installation bracket
Product Specification:
Chipset: ASMedia ASM1166
Bus Type: PCI Express x4
Card Type: Standard / Low Profile
Interface: SATA
Ports: 6
Bootable: Yes
Hot Swap Capability: Yes
Port Multiplier: Yes
Type and Rate: SATA III (6 Gbps)
Connector Type(s): PCI Express x4 Male
Internal Ports: SATA (7 pin, Data) Plug
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4, x8 or x16 slot
Environmental: Humidity 20~80% RH, Operating Temperature 5°C to 50°C (41°F to 122°F), Storage Temperature -25°C to 70°C (-13°F to 158°F)
