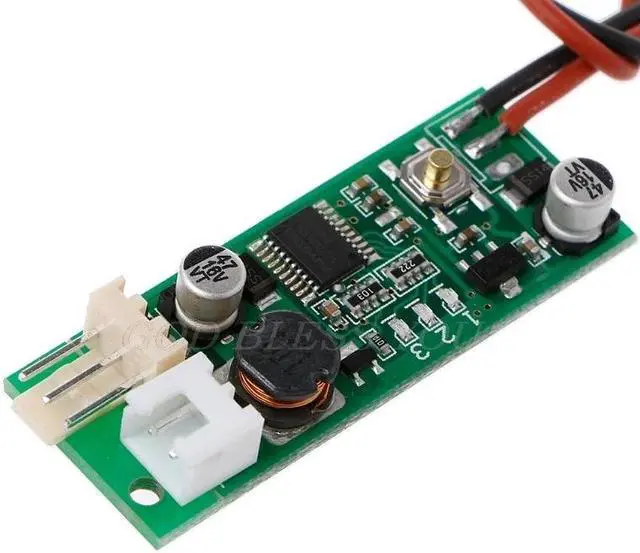

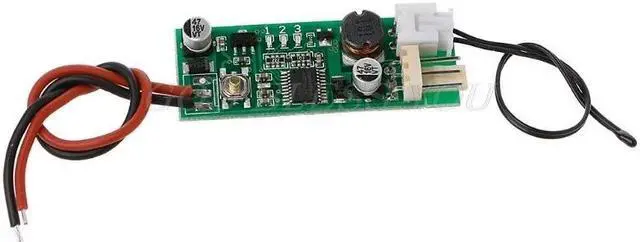

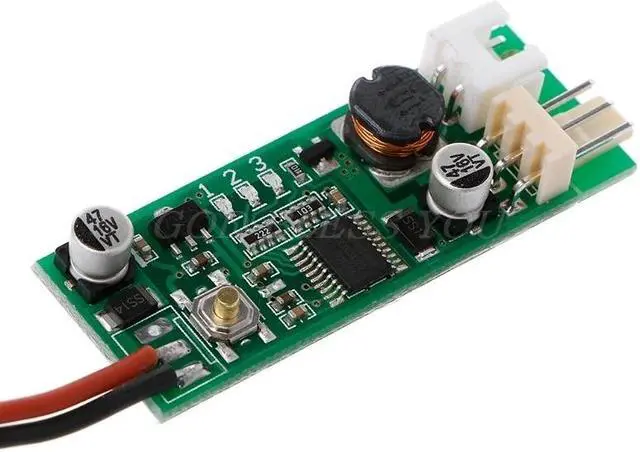

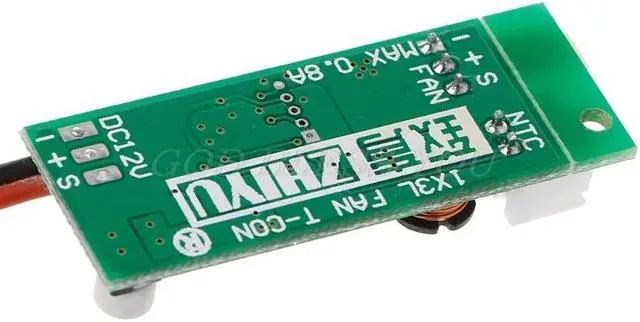

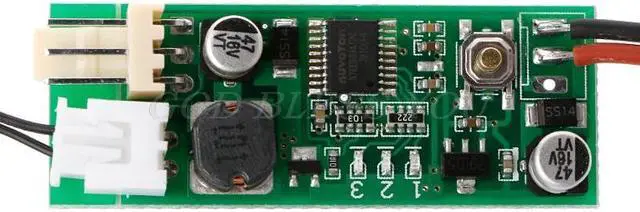

12V Temperature Speed Controler Denoised Speed Controller for PC Fan/Alarm Drop Shipping

Description:

Operating voltage:12V can work in 9-14V range

Fan interface:2510-3P bend (pin spacing 2.54mm)

Fan current:Less than 0.8A

Protection Input reverse connection protection

Click the button switch to upshift and double click the downshift

No output overload protection!!! Please note that the output should not be short circuited or overloaded

Drive output range 5% -100 part fan low output may not turn,please adjust the fan can start the use of position

Operating temperature:-20 Celsius to 60 Celsius

Temperature probe parameters:NTC 50K B=3950

Probe temperature:Small black head 120 degrees

Ring probe 110 Celsius

Fan interface extends 8mm

Setting parameters default factory Low speed 20%.

Acceleration temperature 30

Acceleration width 5

Do not shut down the output

At this temperature setting,holding the probe with the palm of the hand will accelerate in a few minutes.If the probe is clamped into the armpit,it will reach full speed in 2 minutes

Size:4.9x1.8cm/1.93x0.71inch

Note:No retail package.

Transition: 1cm=10mm=0.39inch

Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

1x 12V Temperature Speed controler

1x Probe
