Heat pipe specification: 6*6mm high-performance heat pipe
Number of FIN pieces: 50
Base process: reflow soldering
Fan model: X12
Fan size: 120*120*25
Number of revolutions: 800-2150PRM±10%
Noise: 29dB
Air volume and pressure: 80CFM/ 3.14 mmH2O
Current: 0.2A
Interface: 12V
Lighting effect: ARGB
Bearing: FDB
product specifications

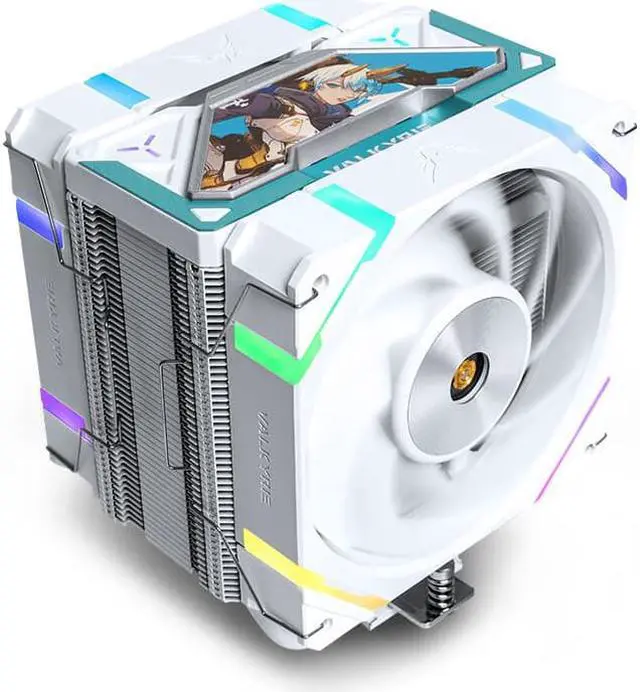

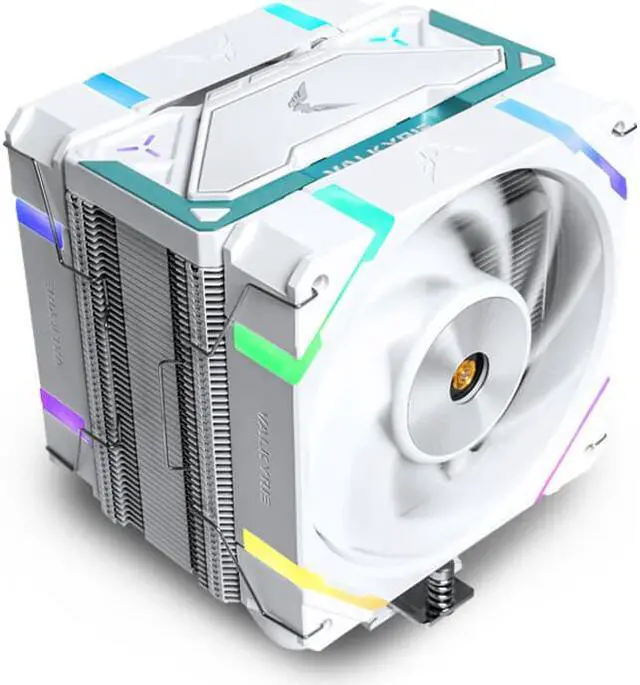

Radiator model SL125
Size 125*109*158mm

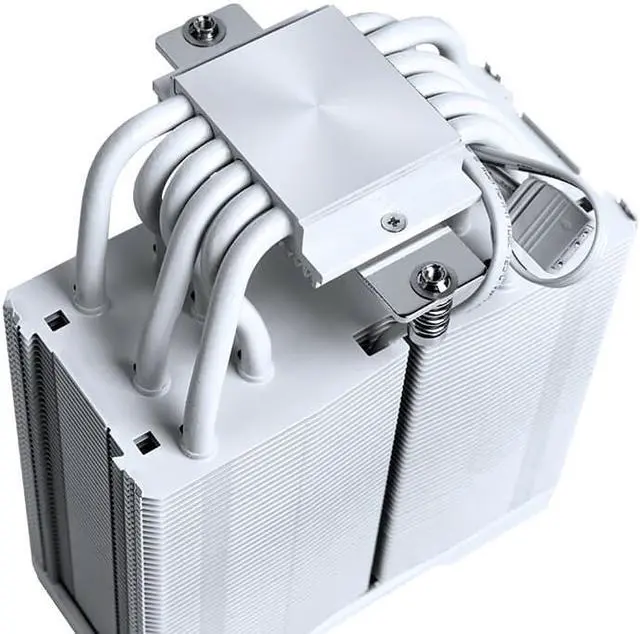

Heat pipe specifications 6*6MM high performance heat pipe
Number of FIN pieces 50
FIN sheet specifications T: 0.4 mm Gap: 2.15 mm
Base size 42*38mm
Base process reflow soldering
Support power consumption >230W
AMD AM4AM5
Intel LGA 1700 115X 1200 20XX
Fan parameters
Fan model: X12
Fan size: 120*120*25MM
Number of revolutions: 800-2150 RPM±10%
Noise: 29dB
Air volume and pressure: 80CFM/ 3.14 mmH20
Current: 0.2A
Interface: 12V
Lighting effect: S-RGB
Bearing: Fluid Dynamic Bearing
