Yescom Go Kart Torque Converter Clutch Kit TAV2 3/4" 5/8" Bore 12 Teeth for #35 Chain

Features:

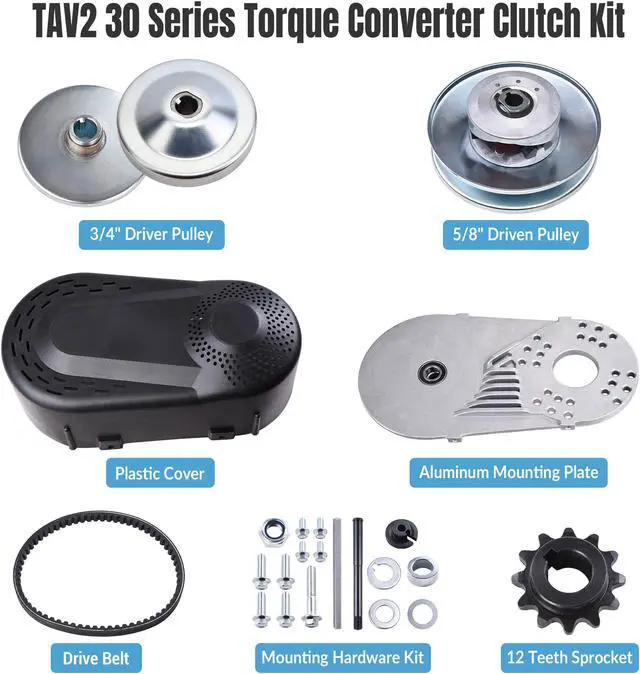

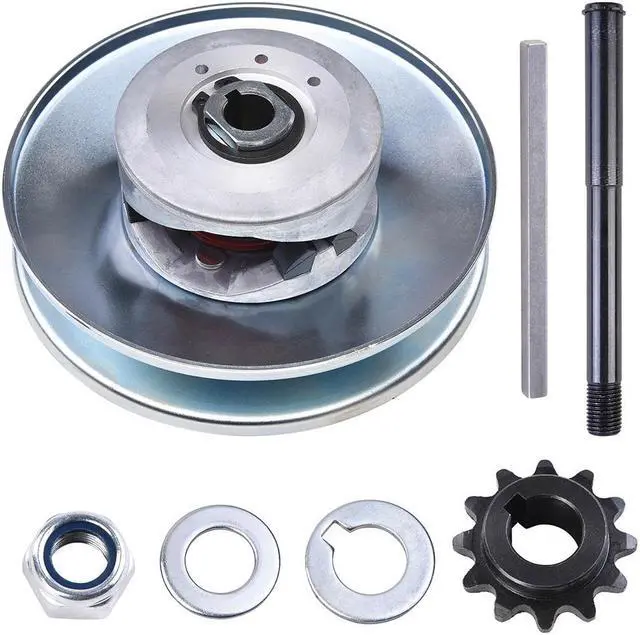

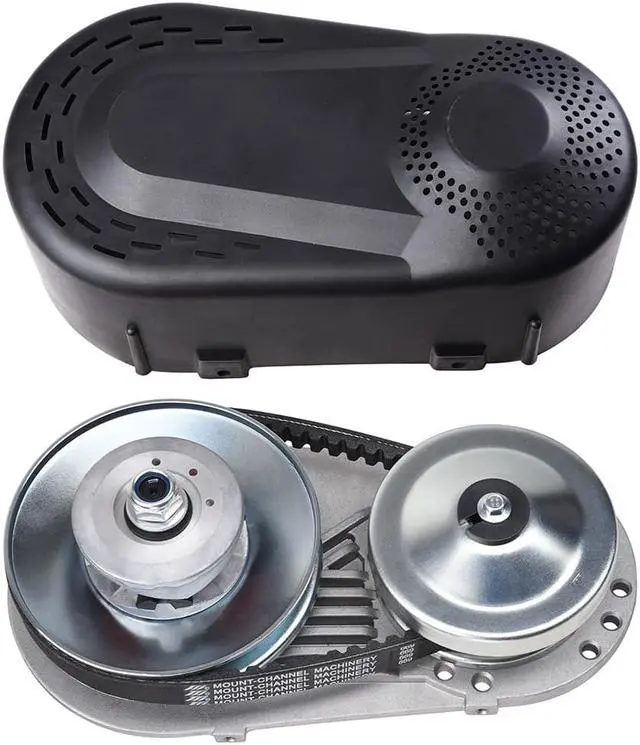

- TAV2 30 Series Torque Converter Clutch Kit - Includes 1pc 3/4" driver pulley, 1pc 5/8" driven pulley, 1pc belt, 1pc aluminum mounting plate, 1pc 12 teeth sprocket and 1 set of screws for directly replacing the old clutch of your go kart or minibike to provide more torque to ensure smoother acceleration and better climbing ability
- Great Compatibility - Clutch fits for 6.5HP 212CC engines (Max. 8HP) with 3/4" engine shaft; 12 teeth sprocket is compatible for #35 chain (chain is not included)
- Easy Installation & Wide Application - Comes with complete accessory kit for convenient installation; Broadly applied in different lawnmowers, go karts, minibikes, ATVs, motorcycles, small off-road vehicles and so on

Specifications:

- Overall Dimension (LxWxH): 13 5/16" x 7 1/2" x 7 7/16" (33.85 x 19.1 x 18.9 cm)
- Front Clutch Size (LxWxH): 4 7/8" x 4 7/8" x 3 1/16" (12.4 x 12.4 x 7.8 cm)
- Rear Clutch Size (LxWxH): 6 1/4" x 6 1/4" x 2 9/16" (15.8 x 15.8 x 6.5 cm)
- Belt Folded Size (LxWxH): 11 13/16" x 3 1/8" x 13/16" (30 x 8 x 2 cm)
- Plastic Shell Size (LxWxH): 13 3/8" x 7 1/2" x 4 3/4" (34 x 19 x 12 cm)

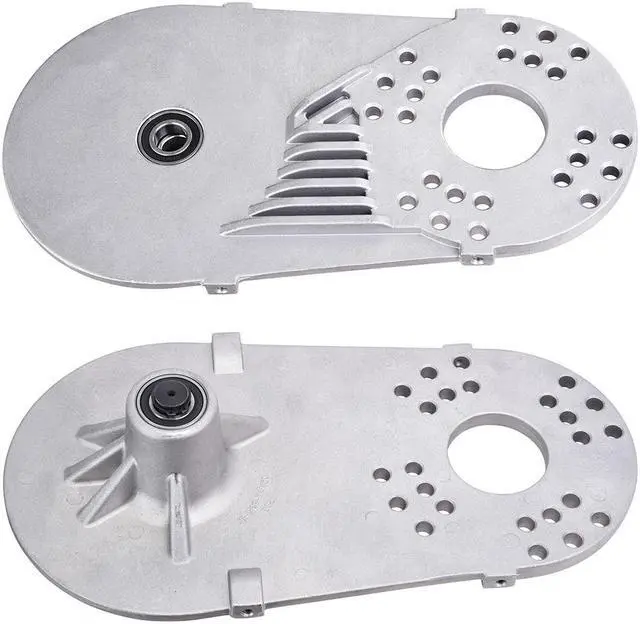

- Aluminum Plate Size (LxWxH): 12 15/16" x 6 15/16" x 2 15/16" (32.9 x 17.7 x 7.5 cm)
- Front Drive Clutch Bore: 3/4"
- Rear Drive Clutch Bore: 5/8" (Disk Dia.: 6")
- Sprocket: 12 Teeth
- Engagement Range: 2350±200 RPM
- Variable Speed Ratio 3.2 to 0.8
- Material: Aluminum Clutch, Rubber Belt, Plastic Shell, Aluminum Plate
- Net Weight: 11.02 Lbs (5 kg)

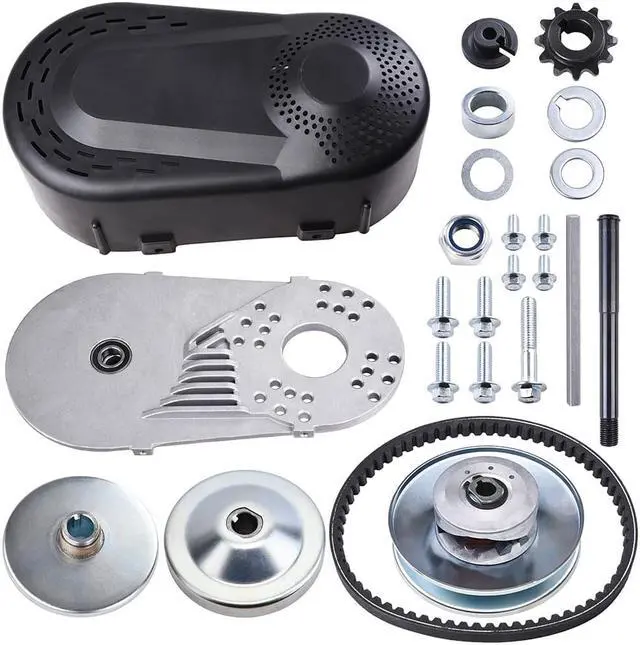

Package Contents:

- 1x Drive Belt
- 1x Plastic Cover
- 1x Front Clutch
- 1x Rear Clutch
- 1x 12-Teeth Sprocket
- 1x Aluminum Plate
- 1x Screw set
- 1x Manual

Notice:
- It will be recommended to consult professionals before installation.
